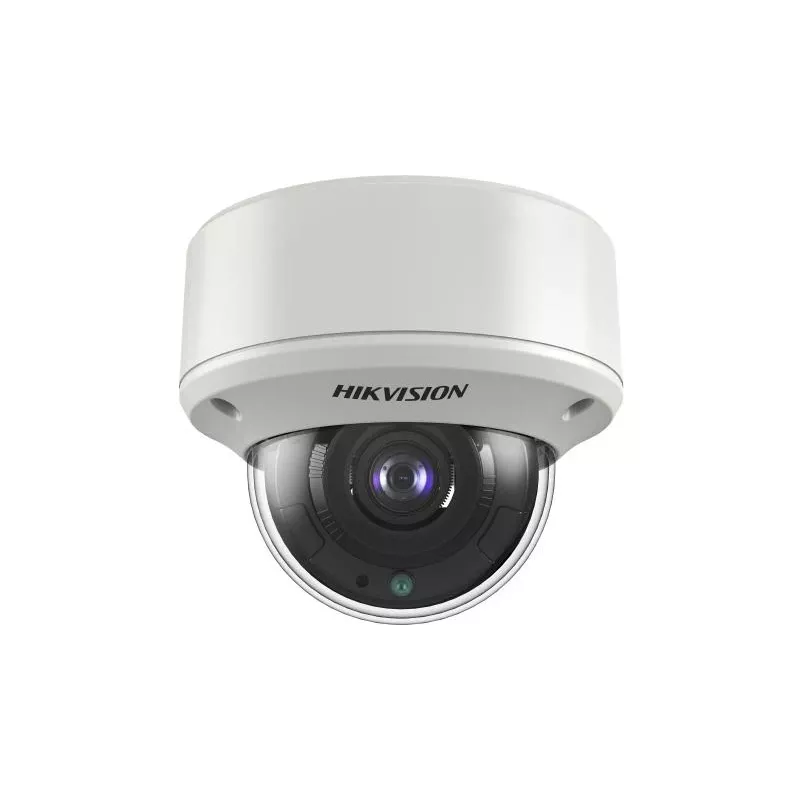

Hikvision DS-2CE59H8T-AVPIT3ZF(2.7-13.5mm) cámara domo HD-TVI 5MP

The Hikvision DS-2CE59H8T-AVPIT3ZF is a high-performance 5MP HD-TVI dome camera designed for outdoor surveillance. Featuring a motorized vari-focal lens with a 2.7-13.5mm focal length, it delivers exceptional image quality with 2560x1944 resolution at 20 fps. Equipped with EXIR 2.0 technology, it provides up to 60 meters of IR illumination for clear night vision. The camera supports multiple video outputs (TVI/AHD/CVI/CVBS) and offers 130 dB True WDR for balanced exposure in challenging lighting conditions.

Advantages

This camera combines high-resolution imaging with robust durability. Its IP67-rated metal housing ensures protection against dust and water, while IK10 vandal resistance safeguards against impact. The motorized lens allows remote adjustment of zoom and focus, simplifying installation and maintenance. With a wide operating temperature range (-40°C to 60°C), it performs reliably in extreme environments.

Suitable for

• Outdoor perimeter surveillance
• Parking lots and entrances
• Retail and commercial premises
• Industrial sites requiring high durability

Key specifications

• Image Sensor: 5 MP CMOS
• Max Resolution: 2560 x 1944
• Frame Rate: 5 MP @ 20 fps
• Lens: Motorized Vari-focal 2.7-13.5mm
• Horizontal Angle of View: 92.3° to 29.3°
• Minimum Illumination: 0.003 Lux (F1.2, AGC ON), 0 Lux with IR
• IR Range: Up to 60 m (EXIR 2.0)
• Video Output: 1 HD analog output (TVI/AHD/CVI/CVBS switchable)
• WDR: 130 dB True WDR
• Day/Night: IR Cut Filter
• IP Rating: IP67
• IK Rating: IK10
• Power Supply: 12 VDC ± 25% / 24 VAC ± 25%
• Power Consumption: Max. 9.7 W
• Operating Temperature: -40°C to 60°C
• Material: Metal Casing

Recommendations

For optimal performance, use with a compatible Hikvision DVR or HD-TVI recorder. Ensure proper power supply (12VDC or 24VAC) and consider using a surge protector for outdoor installations.
