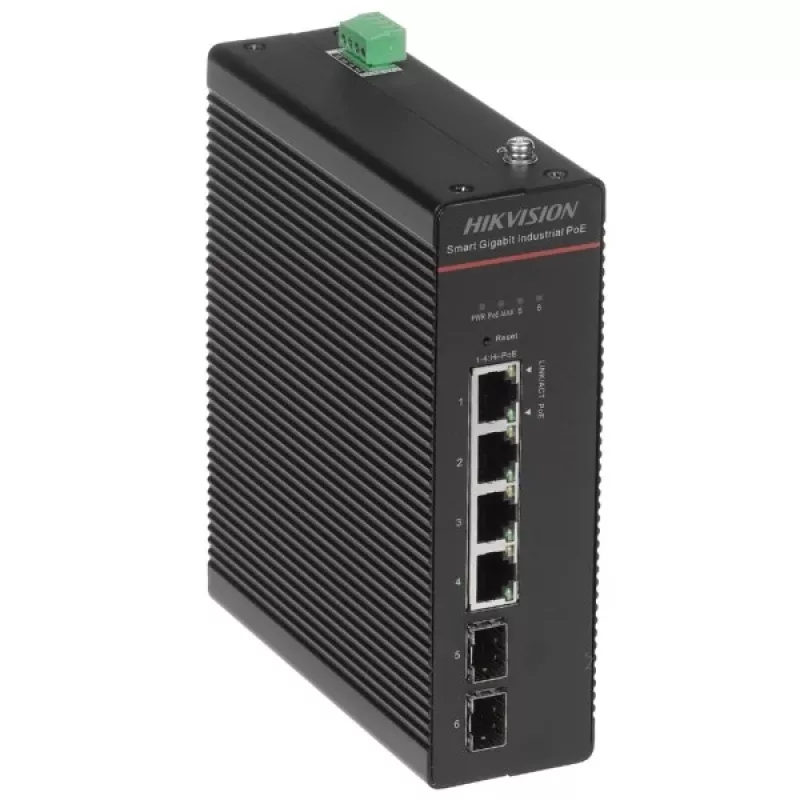

Hikvision DS-3T1506HP-SI-4P2F(O-STD)/NO POWER UNIT - Switch Gigabit PoE++ no gestionado - 4 puertos PoE+ + 2 uplink SFP - Presupuesto 60W

The Hikvision DS-3T1506HP-SI-4P2F(O-STD)/NO POWER UNIT is a high-performance unmanaged Gigabit PoE++ switch designed for small to medium-sized networks requiring reliable power and data transmission. With 4 PoE+ ports and 2 SFP uplink ports, this switch delivers up to 90W on port 1 (Hi-PoE) and 30W on ports 2-4, with a total PoE budget of 60W. It supports IEEE 802.3af/at/bt standards, making it ideal for powering IP cameras, access points, and other PoE devices. The switch features a switching capacity of 12 Gbps, jumbo frame support up to 10 KB, and a MAC address table of 16K entries. Its rugged design allows operation in extreme temperatures from -30°C to 65°C, with 6 KV surge protection on PoE ports. Note: Power adapter not included (DC 48-57V required).

Advantages

This switch offers exceptional value with its high PoE budget per port, especially the 90W Hi-PoE port for demanding devices like PTZ cameras. The unmanaged plug-and-play design simplifies deployment, while the industrial temperature range and surge protection ensure reliability in harsh environments. The two SFP uplink ports provide flexible fiber connectivity for network expansion.

Suitable for

• IP surveillance systems with high-power PTZ cameras
• Wireless access point installations
• Small office/home office (SOHO) networks
• Industrial automation and outdoor deployments

Key specifications

• 4 PoE+ ports (10/100/1000 Mbps) with Hi-PoE (90W on port 1)
• 2 SFP uplink ports (1 Gbps)
• Total PoE budget: 60W
• Switching capacity: 12 Gbps
• Packet forwarding rate: 8.928 Mpps
• MAC address table: 16K entries
• Jumbo frame support: 10 KB
• Management: Unmanaged
• Power input: DC 48-57V (adapter not included)
• Operating temperature: -30°C to 65°C
• Surge protection: 6 KV on PoE ports

Recommendations

For optimal performance, pair this switch with a compatible DC power supply (48-57V, 60W+). Use high-quality Cat5e or better cabling for PoE++ applications. The switch is ideal for edge deployments where reliability and power flexibility are critical.
