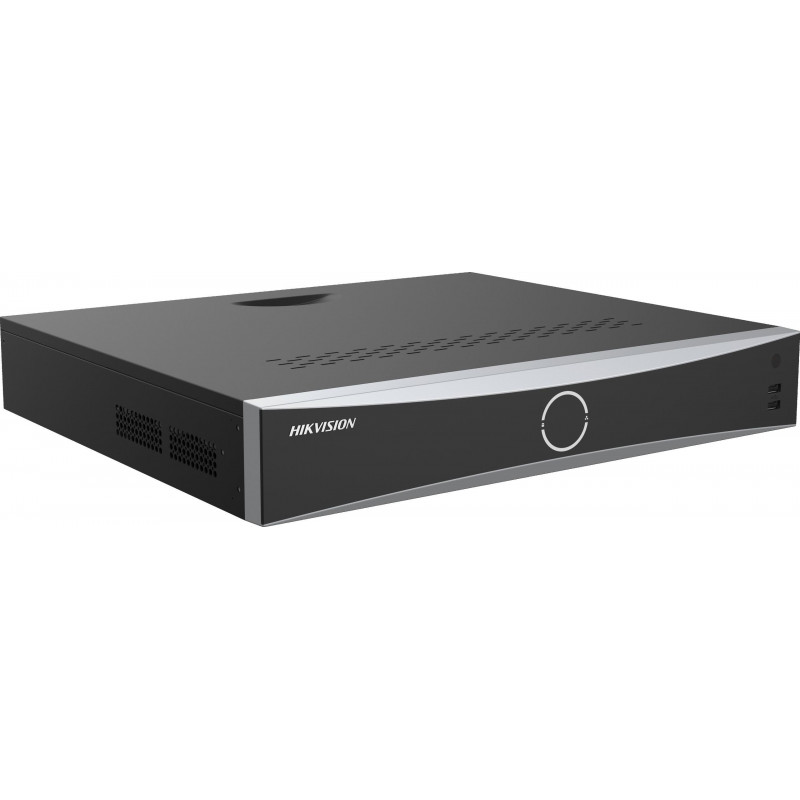

Hikvision grabador IP DS-7616NXI-M2/VPro NVR

The Hikvision DS-7616NXI-M2/VPro is an IP NVR from the I/VPro series featuring AcuSeek and AcuSearch functions. It supports H.265+/H.265/H.264+/H.264 video formats and AI-based analytics powered by Guanlan large-scale AI models.

Key features

• AcuSeek and AcuSearch up to 32 channels
• Face recognition from face pictures up to 8 channels
• Connect up to 32 IP cameras
• Decoding up to 32 channels at 1080p
• AI analytics: face recognition, perimeter protection, video structuring, AcuSearch, motion detection 2.0, ANPR, people counting, AcuSeek

Specifications

• Brand: Hikvision
• MPN: DS-7616NXI-M2/VPro
• Video formats: H.265+/H.265/H.264+/H.264
• IP camera channels: 32
• Decoding capability: AI ON: 20fps@1080p; AI OFF: 32ch@1080p
• Incoming bandwidth: 384 Mb/s
• Outgoing bandwidth: 256 Mb/s
• HDMI 1 output: 4K/30Hz, 2K/60Hz, 1080p/60Hz, 720p/60Hz
• HDMI 2 output: 1080p/60Hz, 720p/60Hz
• VGA output: 1080p/60Hz, 720p/60Hz
• Output mode: HDMI/VGA independent
• Audio output: 1× RCA
• Two-way audio: 1× RCA, 2.0 Vp-p
• Audio compression: G.711ulaw/alaw, G.722, G.726, AAC, MP2L2, PCM
• Dual-stream recording: Yes
• Network interface: 2× RJ-45 10/100/1000M
• Remote connections: 128
• Protocols: TCP/IP, DHCP, IPv4/6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP/HTTPS, ONVIF 2.2, OTAP
• API: ONVIF S/G, SDK, ISAPI
• Compatible browsers: IE11, Chrome 57+, Firefox 52+, Safari 12+, Edge 89+
• SATA: 4× SATA
• Capacity: up to 20 TB per disk
• Alarm IN/OUT: 4/1
• USB: 2× USB 2.0 (front), 1× USB 3.0 (rear)
• GUI languages: 40 languages, including Polish
• Power supply: 100–240 VAC
• Power consumption: ≤ 50 W (without HDD)
• Operating temperature: -10°C to 55°C
• Humidity: 10%–90%
• Chassis: 1.5U
• Dimensions: 440 × 391 × 72 mm
• Weight: ≤ 5 kg
• Certifications: CE, CB, REACH, WEEE, UKCA, RCM, IC, LOA, KC
