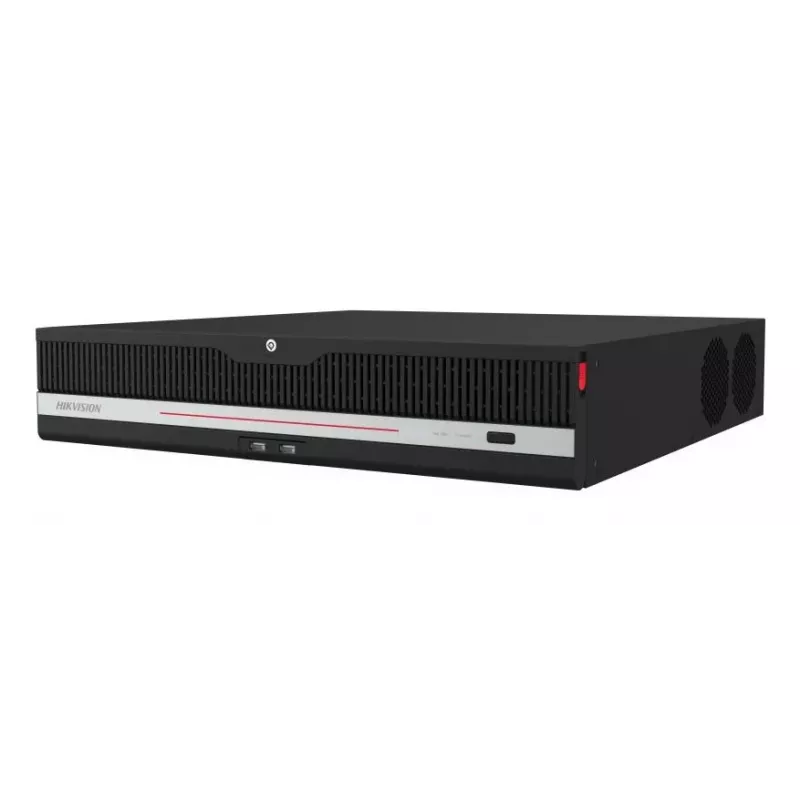

The Hikvision iDS-9664NXI-M8/X is a high-performance 64-channel network video recorder (NVR) designed for advanced surveillance systems. With support for up to 64 IP cameras and powerful AI features including facial recognition and perimeter protection, this NVR delivers reliable and intelligent video management for medium to large-scale installations.

Advantages

Supports up to 64 IP channels with 768 Mbps incoming bandwidth, ensuring smooth recording from multiple high-resolution cameras. AI capabilities enable up to 16-channel facial recognition and 32-channel human/vehicle analysis, enhancing security efficiency. RAID support (0,1,5,6,10) provides data redundancy for critical footage. The 3U rack-mountable chassis accommodates 8 SATA HDDs (up to 80 TB total) for extensive storage.

Suitable for

• Large retail stores and shopping malls
• Corporate office buildings and campuses
• Warehouses and logistics centers
• Government and public facilities
• Educational institutions

Key specifications

• Video Input Channels: 64-ch IP
• Max Decoding Capability: 2-ch@32 MP / 4-ch@12 MP / 8-ch@8 MP / 16-ch@4 MP / 32-ch@1080p
• Incoming Bandwidth: 768 Mbps
• Outgoing Bandwidth: 400 Mbps
• HDD Bays: 8 SATA interfaces (up to 10 TB each, total 80 TB)
• RAID Support: RAID0, RAID1, RAID5, RAID6, RAID10
• Video Output: 2x HDMI (up to 4K), 2x VGA
• Network Interfaces: 2x RJ-45 10/100/1000 Mbps
• USB Interfaces: 2x USB 2.0 (front), 1x USB 3.0 (rear)
• Alarm I/O: 16 In / 8 Out
• AI Features: Up to 16-ch facial recognition, 32-ch perimeter protection, 32-ch human/vehicle analysis
• Audio Input/Output: 1-ch RCA / 2-ch RCA
• Compression Format: H.265+/H.265/H.264+/H.264
• Chassis Type: 3U Rack-mountable
• Power Supply: 100 to 240 VAC, 50 to 60 Hz
• Power Consumption (without HDD): ≤ 60 W
• Operating Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Two-way Audio: Supported
• Synchronous Playback: 16-ch

Recommendations

For optimal performance, pair with Hikvision IP cameras and use enterprise-grade SATA HDDs. Ensure proper ventilation in the rack cabinet to maintain operating temperature. RAID 5 or 6 is recommended for critical data protection.
