Hikvision Pro Series DS-3T0506HP-E/HS switch PoE no gestionado, 6 puertos, 4 PoE, presupuesto 60W

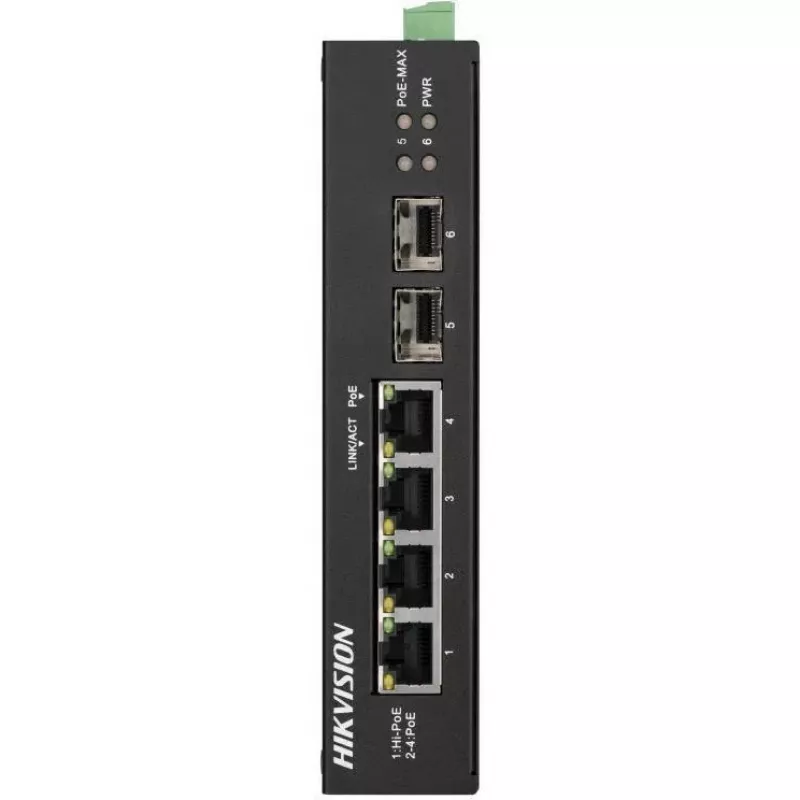

The Hikvision Pro Series DS-3T0506HP-E/HS is a robust unmanaged industrial PoE switch designed for reliable network connectivity in demanding environments. With 4 PoE+ ports and a total switching capacity of 12 Gbps, this switch delivers power and data to IP cameras, access points, and other PoE devices efficiently. Its fanless metal enclosure ensures silent operation and durability, making it ideal for surveillance and industrial applications.

Advantages

This switch offers a cost-effective solution for expanding your network with PoE capabilities. The extended PoE transmission distance of up to 300 meters in extended mode allows flexible device placement. With surge protection of 6 KV and an operating temperature range of -10°C to 55°C, it ensures stable performance in harsh conditions. The fanless design reduces maintenance and noise, perfect for noise-sensitive areas.

Suitable for

• IP surveillance systems requiring PoE for cameras
• Industrial automation networks
• Small to medium business network expansion
• Outdoor or harsh environment installations

Key specifications

• Switch Type: Unmanaged
• Total Ports: 6 (4 PoE 10/100/1000 RJ45, 1 non-PoE RJ45, 1 SFP uplink)
• PoE Standard: IEEE 802.3af/at
• PoE Power Budget: 60 W (max 30 W per port)
• Switching Capacity: 12 Gbps
• Packet Forwarding Rate: 8.928 Mpps
• MAC Address Table: 4K entries
• Jumbo Frame Support: 9 KB
• Power Supply: 48 VDC, 1.35 A external adapter
• Operating Temperature: -10°C to 55°C (14°F to 131°F)
• Surge Protection: 6 KV
• PoE Transmission Distance: Up to 300 m (extended mode)
• Enclosure: Metal, fanless

Recommendations

For optimal performance, use quality Cat5e or higher cabling. This switch is plug-and-play, requiring no configuration. Ideal for powering Hikvision IP cameras and other PoE devices.
