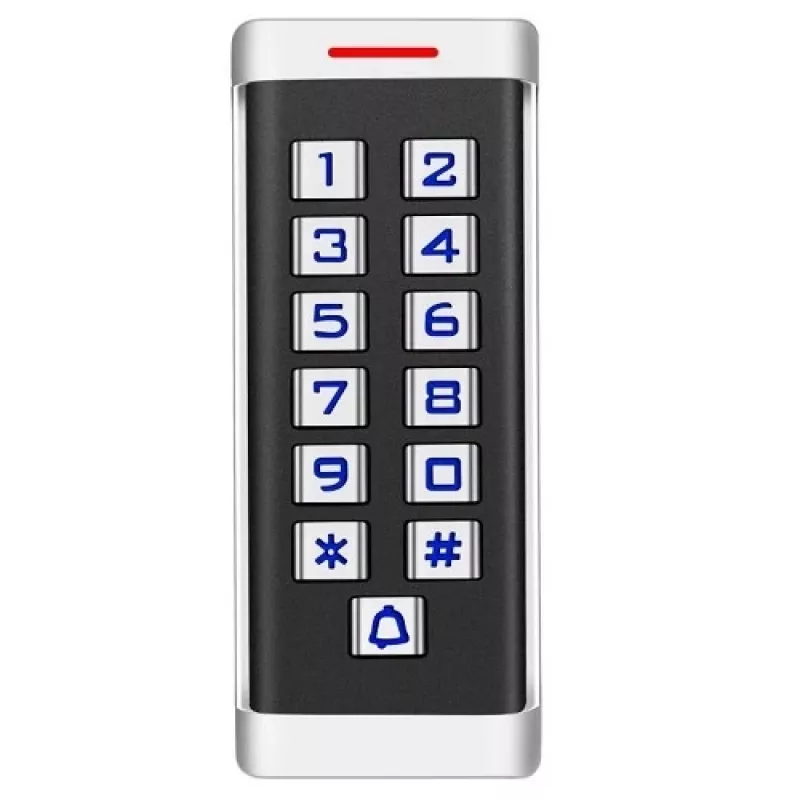

HISMART TV993789 Teclado multifunción de control de accesos con lector de tarjetas EM, teclado PIN y controlador integrado

Experience true standalone access control with the HISMART TV993789 — a rugged, all-in-one keypad that combines an EM 125 kHz card reader, a backlit numeric PIN pad, and a fully integrated controller in a single weatherproof housing. Rated IP65 for dust and water resistance, this device is built to deliver reliable, secure entry management in demanding outdoor and indoor environments.

Overview

The HISMART TV993789 Multifunction Access Control Keypad is designed to manage access for up to 2000 users, supporting card, PIN, or card-plus-PIN authentication. Its integrated relay output directly controls electric locks, while an optional door sensor and exit button input allow for comprehensive entry supervision. The built-in controller stores all credentials locally in non-volatile memory, ensuring your access settings remain intact even after a power loss.

What stands out

• All-in-one solution: reader, keypad, and controller in a single unit
• IP65-rated zinc alloy casing for outdoor durability
• Multi-colour LED indicators and a built-in buzzer for clear operational feedback
• Anti-tamper alarm and short-circuit protection enhance security
• Adjustable relay output (0-99 seconds) suits various lock types
• Wiegand 26/34 input and output provides flexibility for integration

Technical details

• Authentication: EM 125 kHz card, PIN, Card + PIN
• User capacity: up to 2000 users
• Operating voltage: DC 12V
• Current draw: <30mA standby, <100mA operating
• Relay output: NO/NC, adjustable 0-99s
• Wiegand interface: 26/34 input & output
• Ingress protection: IP65
• Operating temperature: -20°C to 60°C
• Operating humidity: 10% to 90% RH (non-condensing)

Our verdict

For installers and facility managers seeking a dependable, compact access control solution, the HISMART TV993789 delivers exceptional value. Its robust build, integrated controller, and flexible authentication options streamline installation and provide a secure, user-friendly experience.
