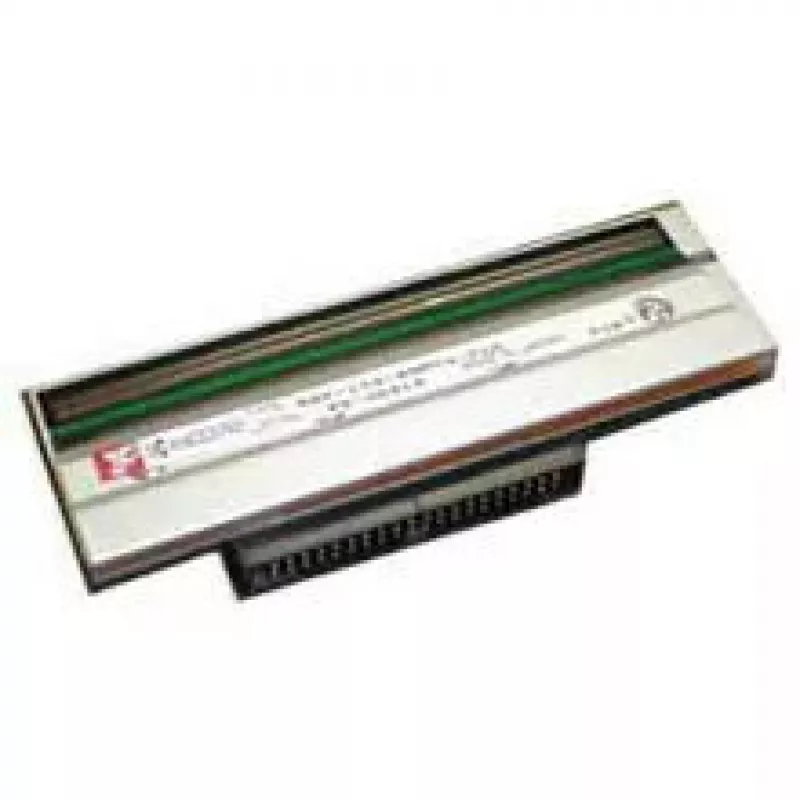

Cabezal de impresión Datamax O'Neil PHD20-2267-01

The Datamax O'Neil PHD20-2267-01 print head is designed for thermal transfer printing and is compatible with E-class Mark II series printers. Intended for use in commercial and industrial label printing, this replacement print head supports monochrome (black) printing and is supplied in a box package. The component is built to provide consistent print quality and stable performance for barcode labels, shipping tags and product identification tasks.

Advantages

This print head delivers reliable thermal transfer printing with even heat distribution to reduce banding and maintain sharp text and barcodes. Constructed to meet the mechanical and thermal tolerances of E-class Mark II printers, it helps minimize downtime by offering straightforward replacement and stable operation. The unit’s design focuses on consistent contact with media and ribbon to ensure repeatable high-contrast black prints.

Suitable for

• Replacing worn or damaged print heads in E-class Mark II printers
• Printing barcode labels for logistics and warehousing
• Producing shipping and product identification labels
• Applications requiring reliable monochrome thermal transfer output

Key specifications

• Technology: Thermal transfer print head
• Print colour: Black (monochrome)
• Compatibility: Designed for E-class Mark II series printers
• Packaging: Boxed unit suitable for storage and transport
• Performance focus: High-contrast text and barcode reproduction

How to use

Turn off the printer and allow internal components to cool before removing the existing print head. Follow the printer manufacturer’s service instructions to release and extract the old unit, then align the replacement print head and secure it according to the E-class Mark II guidance. Reinstall ribbon and media, power the printer on, and perform a test print to verify alignment and print quality. Ensure connectors and mounting points are clean and undamaged during installation.

Recommendations

Use compatible thermal transfer ribbons and recommended label media to preserve print head life and maintain consistent black print density. Avoid touching the print surface with bare hands and follow scheduled maintenance suggested by the printer manufacturer to extend service life.
