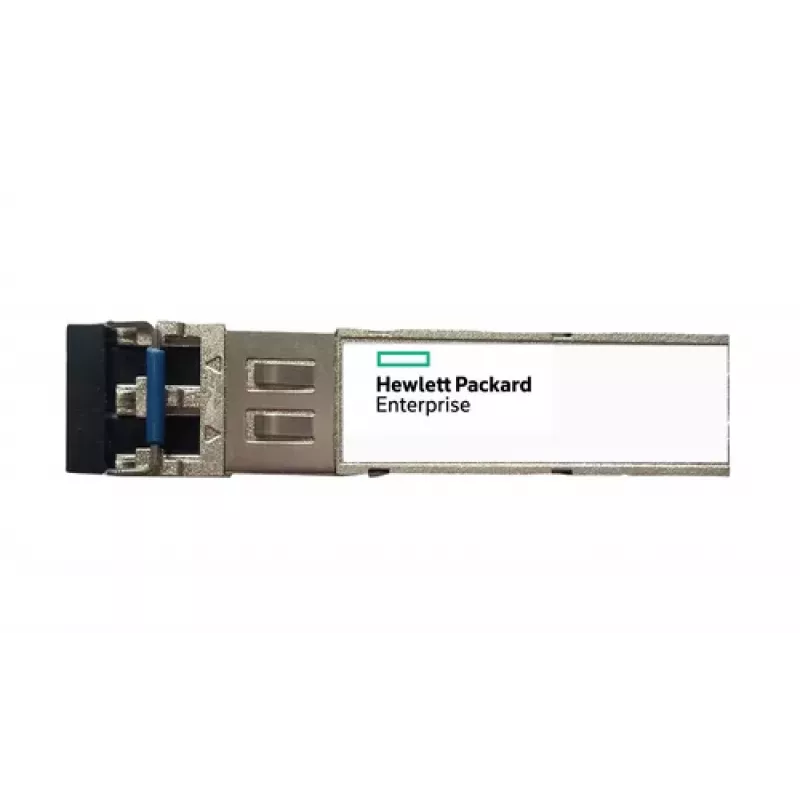

HPE Aruba 10GBase-LRM SFP+ LC Módulo transceptor multimodo - 220m

The HPE Aruba 10GBase-LRM SFP+ transceiver module delivers reliable 10 Gigabit Ethernet connectivity over multi-mode fiber, supporting distances up to 220 meters. Designed for seamless integration with HPE Aruba switches, this hot-pluggable module ensures high performance and low power consumption for enterprise networks.

Advantages

This transceiver offers cost-effective 10G connectivity over existing multi-mode fiber infrastructure, with digital optical monitoring (DOM) for real-time performance tracking. Its compact SFP+ form factor enables high-density port configurations, and the hot-swappable design simplifies maintenance without network downtime.

Suitable for

• HPE Aruba 2530, 2920, 2930M, 3800, 3810M series switches
• Enterprise data centers and campus networks requiring 10G uplinks
• High-bandwidth applications such as virtualization, video streaming, and storage

Key specifications

• Device Type: Transceiver module
• Form Factor: SFP+
• Connectivity Technology: Wired
• Cabling Type: Ethernet 10GBase-LRM
• Data Transfer Rate: 10 Gbps
• Max Transfer Distance: 220 m (722 ft)
• Optical Wavelength: 1310 nm
• Interface: 1 x Ethernet 10GBase-LRM - LC multi-mode x 2
• Fiber Type Supported: Multi-mode Fiber (MMF)
• Fiber Cable Category: OM3, OM4
• Duplex Mode: Full-duplex
• Hot Swappable: Yes
• Digital Optical Monitoring (DOM): Yes
• Power Consumption (Typical): < 1W
• Operating Temperature: 0 to 70 °C (32 to 158 °F)
• Storage Temperature: -40 to 85 °C (-40 to 185 °F)
• Humidity Range Operating: 0 to 85% (non-condensing)
• Standards Compliance: IEEE 802.3ae, SFF-8431, SFF-8432

Recommendations

For optimal performance, use with OM3 or OM4 multi-mode fiber cables. Ensure compatibility with your HPE Aruba switch model before installation. This module is ideal for extending 10G connectivity within a data center or between wiring closets.
