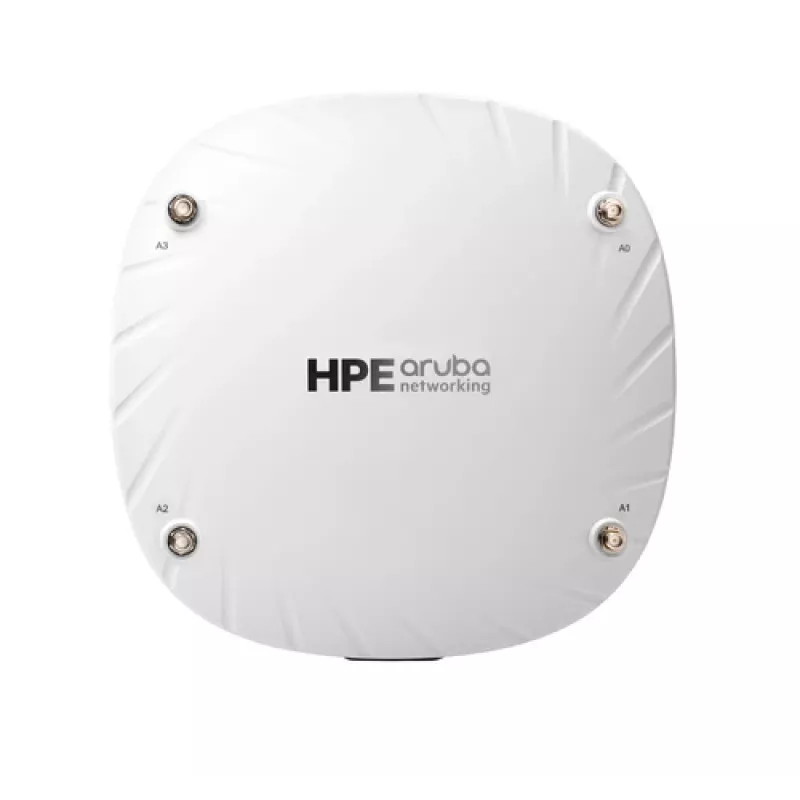

HPE Aruba AP-514 (RW) punto de acceso Campus - Wi-Fi 6 dual band 2,4/5 GHz Bluetooth 5.0

The HPE Aruba AP-514 (RW) is a high-performance campus access point designed for enterprise wireless networks. It delivers fast and reliable Wi-Fi 6 connectivity with dual-band support (2.4 GHz and 5 GHz), integrated Bluetooth 5.0, and an IoT radio for Zigbee. Ideal for high-density environments, it supports up to 1024 concurrent clients and aggregate data rates up to 5.375 Gbps.

Advantages

Wi-Fi 6 (802.11ax) ensures higher capacity, lower latency, and improved efficiency. The 4x4:4 MIMO on 5 GHz and 2x2:2 on 2.4 GHz maximize throughput. Bluetooth 5.0 and Zigbee enable IoT and location services. Flexible management via Aruba Central, AirWave, or Instant Mode simplifies deployment.

Suitable for

• Enterprise campuses and offices
• High-density public venues
• Educational institutions
• Healthcare facilities
• Retail and hospitality

Key specifications

• Wi-Fi Standard: Wi-Fi 6 (802.11ax)
• Frequency Bands: Dual-band (2.4 GHz, 5 GHz)
• Max Aggregate Data Rate: 5.375 Gbps
• Antenna Type: External (RP-SMA connectors)
• Ethernet Ports: 1x 2.5 Gigabit Ethernet (RJ-45), 1x Gigabit Ethernet (RJ-45)
• PoE Support: 802.3at (PoE+)
• Bluetooth: 5.0 / BLE
• IoT Radio: Zigbee
• Management: Aruba Central, AirWave, Instant Mode
• Security: WPA3, WPA2, WPA
• Concurrent Clients: Up to 1024
• Processor: Dual-core ARM Cortex A53
• Memory: 1 GB RAM, 8 GB Flash
• Operating Temperature: 0°C to 50°C
• Mounting: Ceiling, Wall (kit sold separately)

Recommendations

For optimal performance, use with Aruba Central for cloud management and PoE+ switch. Mounting kit is not included.
