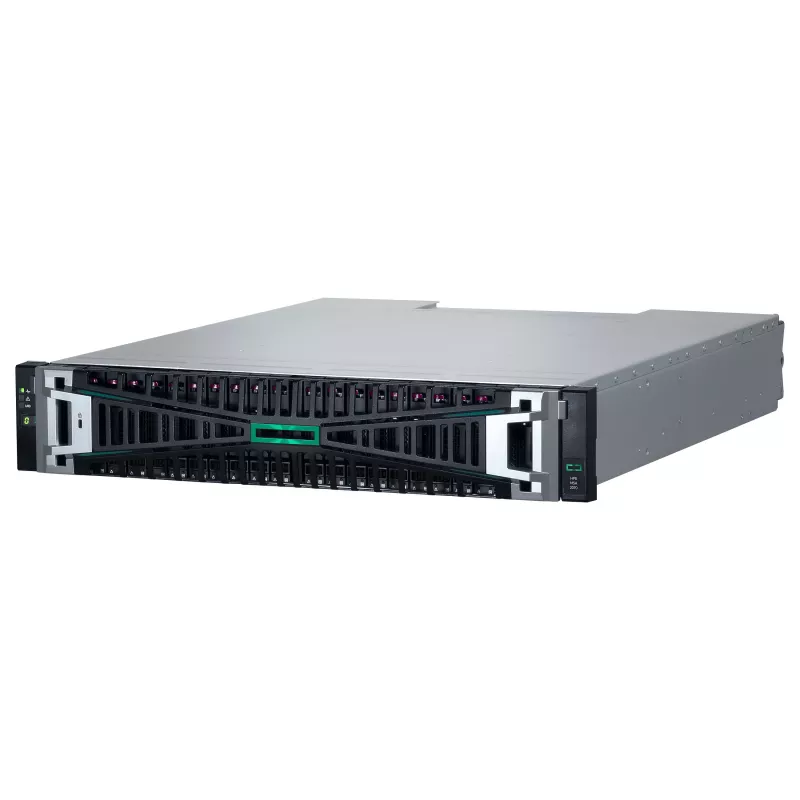

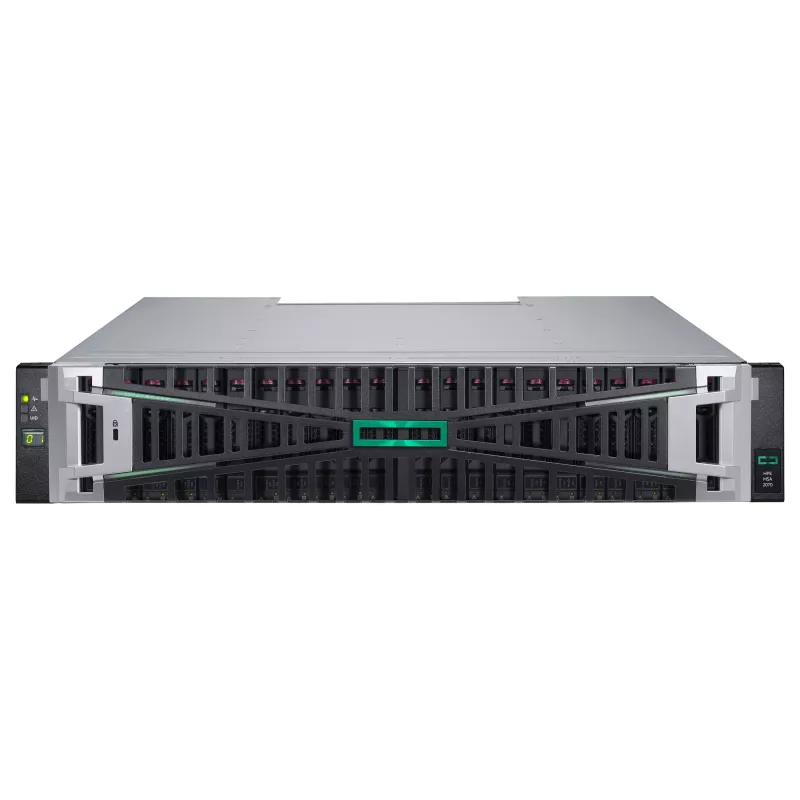

HPE MSA 2070 SFF 2x10/25GbE iSCSI 4-port Cntrl 12x3,84TB SSD 4x25Gb iSCSI XCVR 46TB Storage Array

The HPE MSA 2070 SFF Storage Array is a high-performance all-flash array designed for small to medium enterprises. It delivers exceptional IOPS and low latency with 12 x 3.84TB SAS SSDs, providing 46.08TB of raw capacity in a compact 2U form factor. Dual controllers with 8GB cache each ensure high availability and performance.

Advantages

All-flash performance with enterprise reliability; dual active-active controllers for failover; 25GbE iSCSI connectivity for high-speed data access; advanced data services including thin provisioning, snapshots, and volume copy; scalable up to 7 expansion enclosures.

Suitable for

• Virtualized environments (VMware, Hyper-V)
• Database workloads requiring low latency
• File and application servers
• Backup and disaster recovery

Key specifications

• Storage Type: All-Flash Array
• Form Factor: 2U Rack-mountable
• Drive Bays: 24 SFF (2.5-inch) total; 12 x 3.84TB SAS SSD included
• Raw Capacity: 46.08 TB
• Controller: Dual Controller, 8GB cache per controller (16GB total)
• Host Interface: 4 x 25GbE iSCSI (2 per controller, supports 10GbE)
• Transceivers: 4 x HPE 25GbE SFP28 iSCSI included
• RAID Support: 0, 1, 5, 6, 10, 50, 60
• Max Expansion: Up to 7 enclosures (96 SFF or 48 LFF drives)
• Management: Ethernet RJ-45 for SMU
• Power: Dual hot-swappable power supplies
• Advanced Features: Thin Provisioning, Snapshots, Volume Copy
• Supported OS: Windows Server, VMware ESXi, RHEL, SLES, Oracle Solaris, HP-UX, Citrix XenServer
• Max Volumes: 512
• Max Snapshots: 512

Recommendations

Ideal for businesses seeking a cost-effective all-flash storage solution with high-speed connectivity and robust data management features. The HPE MSA 2070 simplifies storage operations while delivering performance for demanding applications.
