HPE X140 40G QSFP+ CSR4 MPO 300m 850nm MMF módulo transceptor

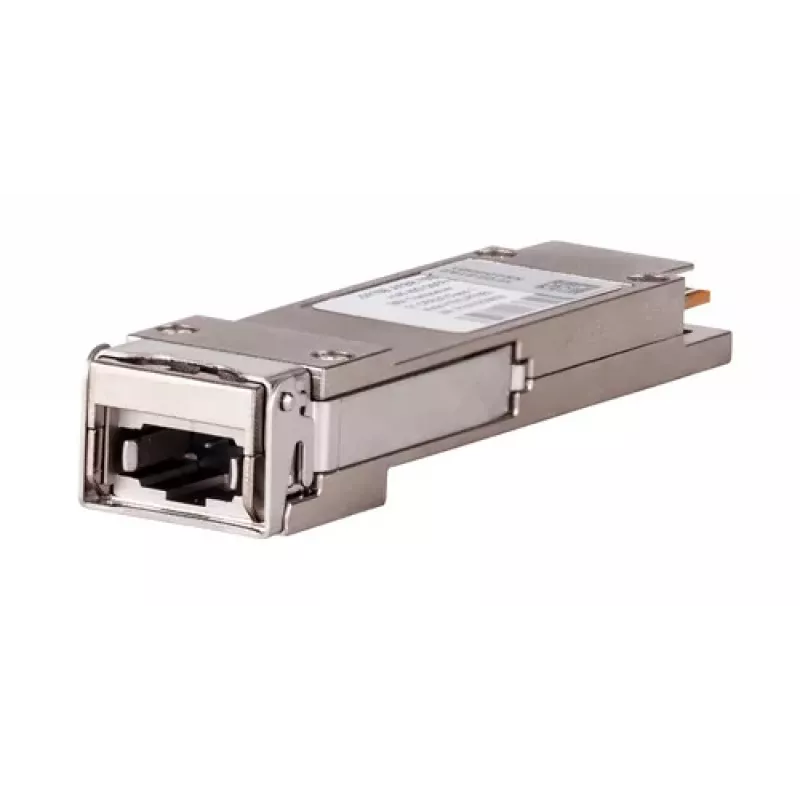

The HPE X140 40G QSFP+ Transceiver Module delivers high-performance 40 Gigabit Ethernet connectivity for data centers and enterprise networks. Designed for multi-mode fiber, this hot-pluggable module supports the 40GBASE-CSR4 standard with an MPO connector, enabling reliable data transmission up to 300 meters at 850 nm wavelength. Ideal for high-bandwidth applications, it ensures low latency and seamless integration with HPE networking equipment.

Advantages

High-speed 40 Gbps data rate for demanding network environments. Hot-pluggable QSFP+ form factor allows easy installation and maintenance without network disruption. Supports multi-mode fiber (MMF) for cost-effective short-to-medium range connectivity. Compliant with industry standards for interoperability. Low power consumption and high reliability with MTBF of 1,000,000 hours.

Suitable for

• Data center interconnects
• Enterprise backbone networks
• High-performance computing clusters
• Storage area networks (SAN)

Key specifications

• Brand: HPE
• Model: JG709A
• Transceiver Type: QSFP+
• Data Rate: 40 Gbps
• Fiber Optic Connector: MPO/MTP
• Fibre Mode: Multimode
• Maximum Transfer Distance: 300 m
• Wavelength: 850 nm
• Hot-Plug Support: Yes
• Duplex System: Simplex (MPO)
• Multi-mode Fiber (MMF) Supported: Yes
• Single-mode Fiber (SMF) Supported: No
• Certification: CE, FCC, RoHS
• Weight: 0.1 kg
• Dimensions (WxDxH): 18.35 x 72 x 8.5 mm

Recommendations

For optimal performance, pair this transceiver with HPE switches and multi-mode OM3 or OM4 fiber cabling. Ensure proper handling and installation to maintain signal integrity.
