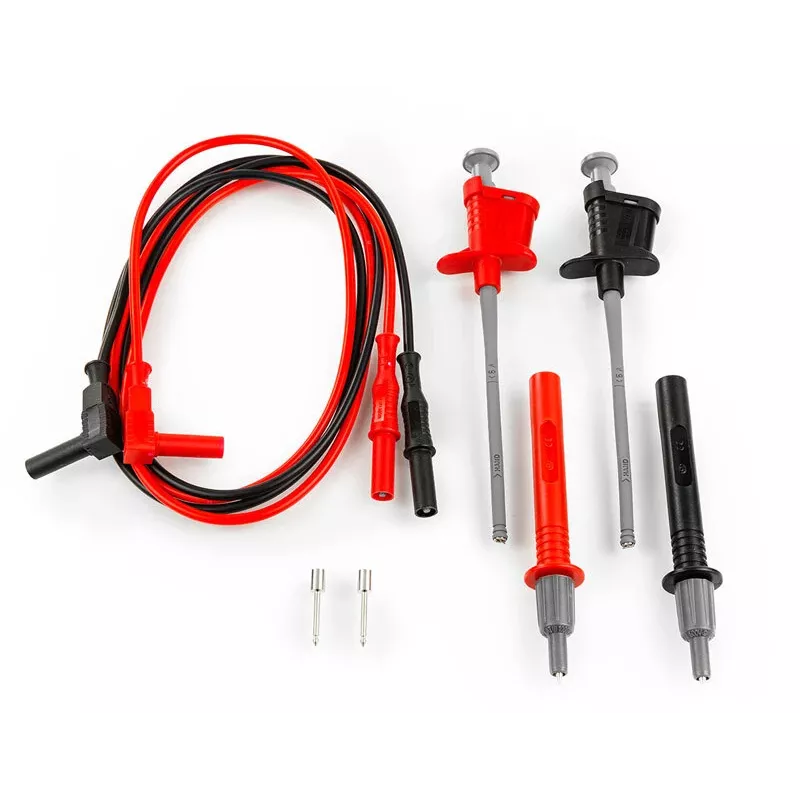

HT Instruments 425 set de cables de prueba, CAT IV 600V / CAT III 1000V, 1,5 m, 16 A, conectores banana 4mm con protección de contacto, rojo/negro 1003040

The HT Instruments 425 measuring lead set stands out with its dual safety ratings—CAT IV 600V and CAT III 1000V—making it suitable for both low-voltage installations and high-energy industrial environments. Unlike generic leads, this set is built to handle up to 16 A and 1000 V, with a 1.5 m length that balances reach and manageability.

Highlights

• CAT IV 600V / CAT III 1000V safety rating for versatile use
• 16 A maximum current and 1000 V maximum voltage
• 1.5 m lead length with 4mm shrouded banana plugs on both ends
• Red and black leads for easy polarity identification
• Nickel-plated brass tips for reliable contact and durability
• PVC insulation compliant with IEC/EN 61010-031

In daily use

Connect the shrouded banana plugs to your multimeter and the test probes to the circuit under test. The flexible PVC insulation and standard probe design make it easy to maneuver in tight spaces. The leads are suitable for a wide temperature range from -10°C to +50°C, ensuring consistent performance in various working conditions.

Full specifications

• Safety Category: CAT IV 600V / CAT III 1000V
• Maximum Voltage Rating: 1000 V
• Maximum Current Rating: 16 A
• Lead Length: 1.5 m
• Connector Type (Instrument End): 4mm Shrouded Banana Plug
• Connector Type (Probe End): 4mm Shrouded Banana Plug
• Probe Type: Standard Test Probe
• Insulation Material: PVC
• Number of Leads: 2
• Lead Colors: Red, Black
• Compliance Standard: IEC/EN 61010-031
• Operating Temperature Range: -10°C to +50°C
• Tip Material: Nickel-plated Brass
• Resistance per Lead: < 0.06 Ω
• Product Type: Measuring Lead Set
• Compatibility: Universal (with 4mm banana jacks)

Final note

With its high safety ratings and robust construction, the HT Instruments 425 is a dependable choice for professionals who need accurate measurements in demanding environments.
