HT INSTRUMENTS KIT-PVCPRO kit de prueba de sistema fotovoltaico con I-V500w y SOLAR-02 1011405

The HT INSTRUMENTS KIT-PVCPRO is a comprehensive test kit for photovoltaic systems, combining the I-V500w curve tracer with the SOLAR-02 remote unit. It measures I-V curves, insulation resistance, earth resistance, and continuity, delivering professional-grade diagnostics in one portable package.

Highlights

• I-V curve measurement up to 1000 V DC and 15 A (1000 A with clamp)
• Insulation resistance testing at 50 V to 1000 V, up to 2 GΩ
• Earth resistance measurement with 2-pole, 3-pole, and loop methods

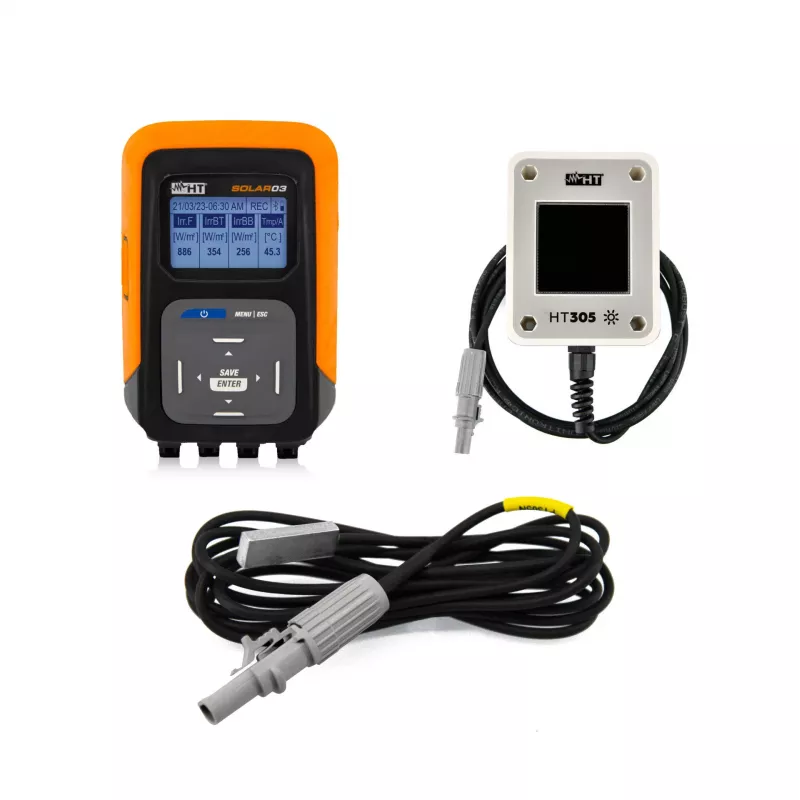

• Irradiance and temperature measurement via SOLAR-02 remote unit
• Data logging with 256 MB internal memory, USB and Wi-Fi connectivity
• Includes HT304N DC clamp, HT4004 AC clamp, test leads, MC3/MC4 adapters, probes, and carrying bag

In daily use

Technicians can perform complete PV system verification on-site. The color graphic LCD displays real-time I-V curves, while the SOLAR-02 unit synchronizes irradiance and temperature data for accurate performance analysis. TOPVIEW2007 software enables detailed reporting and trend analysis.

Full specifications

• Max DC voltage (I-V curve): 1000 V
• Max DC current (I-V curve): 15 A internal, 1000 A with HT304N clamp
• Max DC power (I-V curve): 100 kW
• Insulation resistance test voltages: 50 V, 100 V, 250 V, 500 V, 1000 V
• Insulation resistance range: up to 2 GΩ
• Earth resistance measurement: 2-pole, 3-pole, loop methods
• Continuity test current: 200 mA
• Irradiance measurement range: 0 to 2000 W/m²
• Temperature measurement range: -20°C to 100°C
• Data logging: internal memory 256 MB
• Connectivity: USB, Wi-Fi
• Display type: color graphic LCD
• Power supply: rechargeable Li-ION battery
• Safety rating: CAT III 1000V, CAT IV 600V
• Included software: TOPVIEW2007

Final note

The KIT-PVCPRO delivers the essential measurements for PV system commissioning and troubleshooting, with the convenience of a single integrated solution.
