Hub USB Lindy 4 puertos USB 3.2 Gen 2 Type-C hub metálico

The Lindy 4 Port USB 3.2 Gen 2 Type C Metal Hub is an industrial-grade USB hub designed for reliable high-speed data transfer up to 10 Gbps. Its rugged all-metal chassis provides enhanced electromagnetic compatibility (EMC) protection and integrated mounting brackets for secure installation. The hub includes four USB 3.2 Type-C ports compatible with single- or dual-screw locking cables that meet the USB-IF Type‑C locking specification. Power can be supplied via the included external power adapter or through the terminal block for flexible and uninterrupted operation.

Advantages

The metal housing and EMC protection make the hub suitable for demanding operating environments. Each port has individual short-circuit protection, and all ports support Battery Charging Specification 1.2 with a combined charging power of up to 17.5 W. The hub supports USB 3.2 Gen 2 data rates up to 10 Gbps and is backward compatible with USB 3.2 Gen 1/USB 3.1 Gen 1/USB 3.0 devices. Its compact dimensions (135 × 60 × 24 mm) and integrated mounting brackets enable easy installation in fixed or mobile setups.

Suitable for

• Industrial workstations and factory automation
• Embedded systems and kiosk installations
• Office and professional environments requiring secured connections
• Charging and data transfer for multiple USB devices simultaneously

Key specifications

• Model: Lindy 4 Port USB 3.2 Gen 2 Type C Metal Hub (MPN 43094, EAN 4002888430944)
• Host interface: USB 3.2 Gen 2 (Type-C)
• Ports: 4 USB 3.2 ports (Type-C and Type-A interfaces supported)
• Data rate: Up to 10 Gbps (USB 3.2 Gen 2)
• Charging: Battery Charging Specification 1.2, total charging power 17.5 W
• Power input: 5 V ⎓ 4 A (via included power adapter or terminal block)
• Dimensions: 135 × 60 × 24 mm
• Weight: 0.229 kg
• Colour: Black

How to use

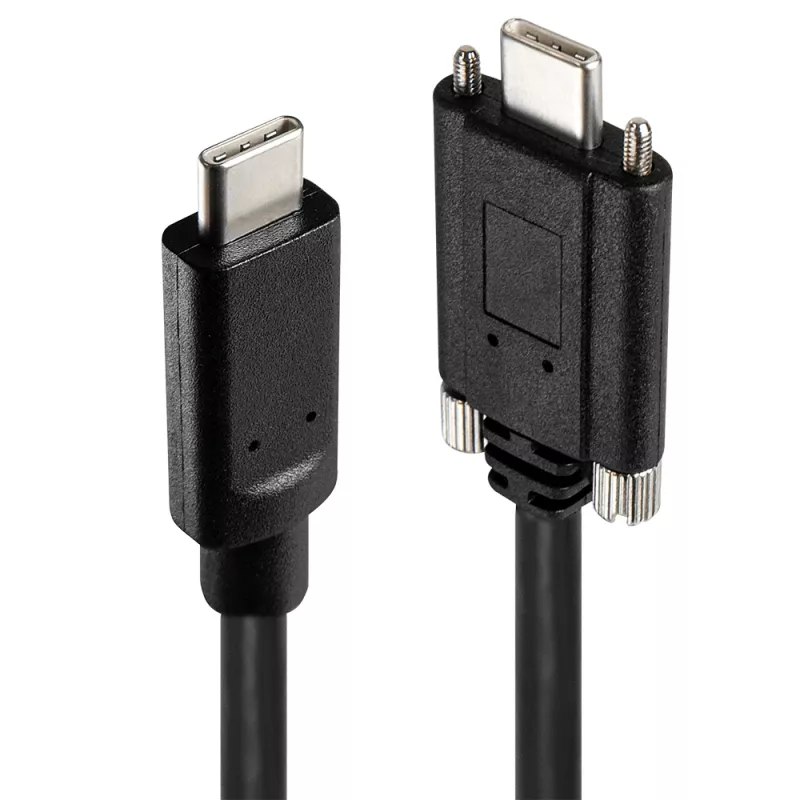

Mount the hub using the integrated brackets or place it on a stable surface. Connect the hub to a host system using a compatible USB Type-C or Type-A cable depending on the host interface. Use USB Type‑C locking cables with single or dual screws if a secured connection is required. Connect the included power adapter to the hub or wire the terminal block to a suitable 5 V ⎓ 4 A power source to enable charging and full data performance. Attach USB devices to the ports; each port will negotiate appropriate data and charging modes with connected devices.

Recommendations

For optimal performance, use USB 3.2 Gen 2 certified cables and ensure the power supply meets the specified 5 V ⎓ 4 A rating when multiple devices are connected. For installations in industrial environments, secure locking Type‑C cables and mount the hub using the integrated brackets to reduce strain on connectors and maintain reliable EMC behaviour.
