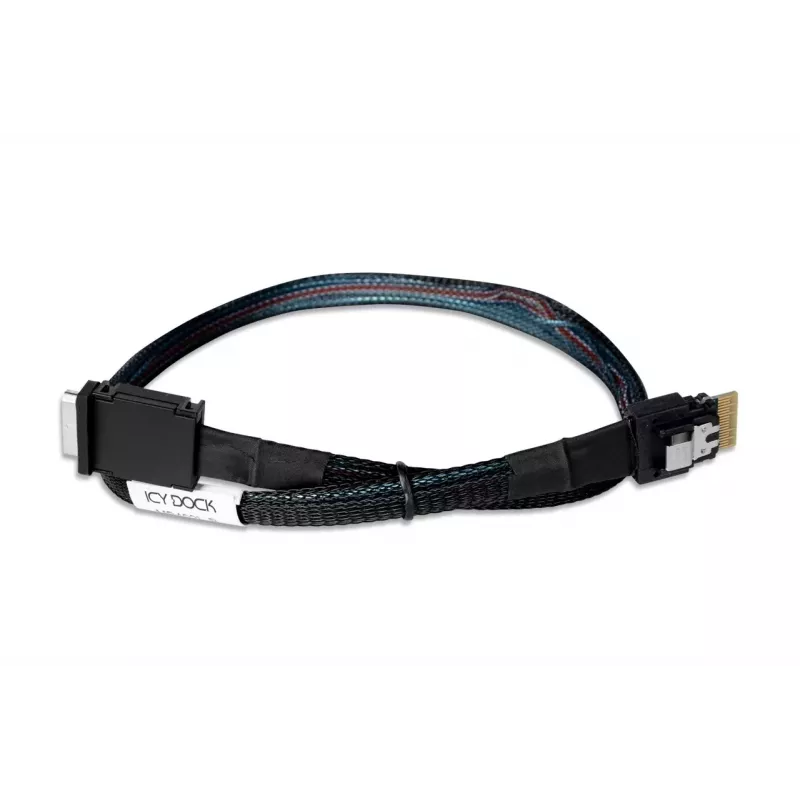

IcyBox IcyDock Cable SlimSAS 4i a OCuLink 4i, PCIe 4.0, 0,5 m

The IcyBox IcyDock SlimSAS 4i to OCuLink 4i Cable is a high-performance internal cable designed for connecting NVMe SSDs, HBAs, and RAID cards. With PCIe 4.0 support and a length of 0.5 meters, it ensures fast and reliable data transfer at up to 16 GT/s per lane over 4 lanes.

Advantages

This cable offers backward compatibility with PCIe 3.0 and 2.0, making it versatile for various systems. Its copper conductors and 30 AWG wire gauge provide excellent signal integrity, while the PVC jacket ensures durability. Hot-plug support allows for easy installation and maintenance.

Suitable for

• Internal NVMe SSD connectivity
• HBA and RAID card connections
• High-speed data transfer in servers and workstations

Key specifications

• Cable Type: SlimSAS to OCuLink
• Connector A: SlimSAS 4i (SFF-8654)
• Connector B: OCuLink 4i (SFF-8611)
• Data Transfer Protocol: PCIe 4.0
• Max Data Transfer Rate: 16 GT/s per lane
• Number of Lanes: 4
• Cable Length: 0.5 m
• Color: Black
• Jacket Material: PVC
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure your system supports PCIe 4.0. This cable is ideal for building high-speed storage solutions.
