ILME Campana de alta construcción TMAO24.32 tamaño 104.27 con 4 tornillos y entrada lateral M32

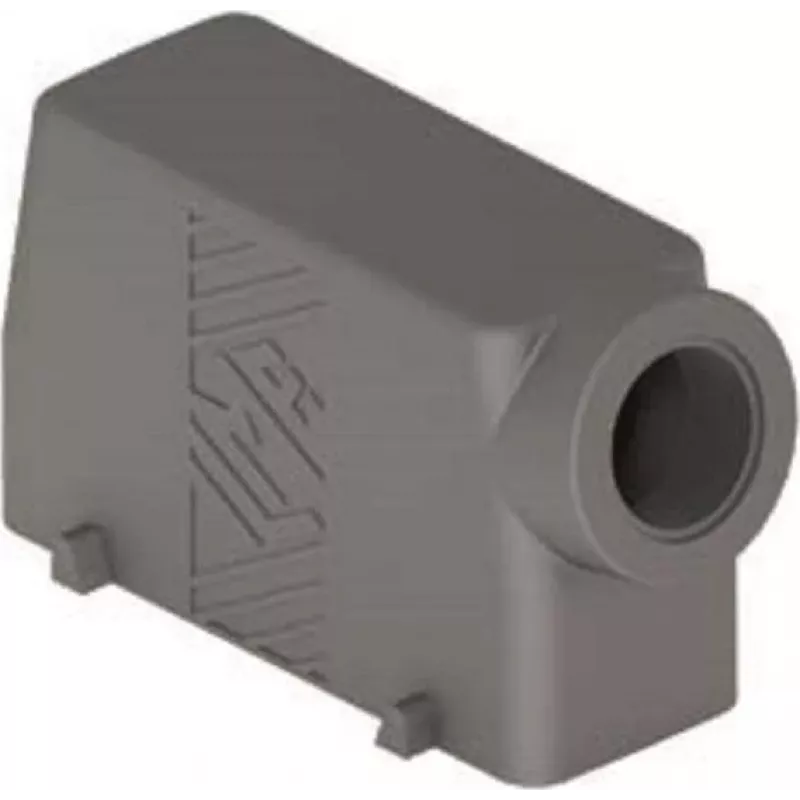

The ILME TMAO24.32 is a high-construction hood engineered for 24-pole inserts in size 104.27 enclosures. Its lateral M32 cable entry and four stainless steel locking bolts set it apart from standard hoods, providing secure mating and reliable cable routing in industrial environments.

Highlights

• High construction hood for 24-pole inserts, size 104.27
• One lateral M32 cable entry
• Locking system with four stainless steel bolts
• Die-cast aluminum alloy body with grey powder coating (RAL 7037)
• IP66/IP67 protection when mated
• Operating temperature range: -40°C to +125°C

In daily use

This hood is designed for surface mounting with a compatible base. Its robust metal construction and high protection rating make it suitable for demanding applications where dust, moisture, and temperature extremes are present. The lateral cable entry allows for flexible wiring configurations.

Full specifications

• Housing type: Hood, high construction
• Series: TMAO
• Size: 104.27
• Cable entry: 1 x M32, lateral
• Locking system: 4 stainless steel bolts
• Material: Die-cast aluminum alloy
• Surface treatment: Powder coated
• Colour: Grey (RAL 7037)
• Protection degree: IP66 / IP67 when mated
• Operating temperature: -40°C to +125°C
• Compatibility: ILME 24-pole inserts (CDD, CXD, CNE series)
• Mounting type: Surface mount

Final note

This hood is a reliable choice for industrial connectivity, combining durable construction with high environmental protection.
