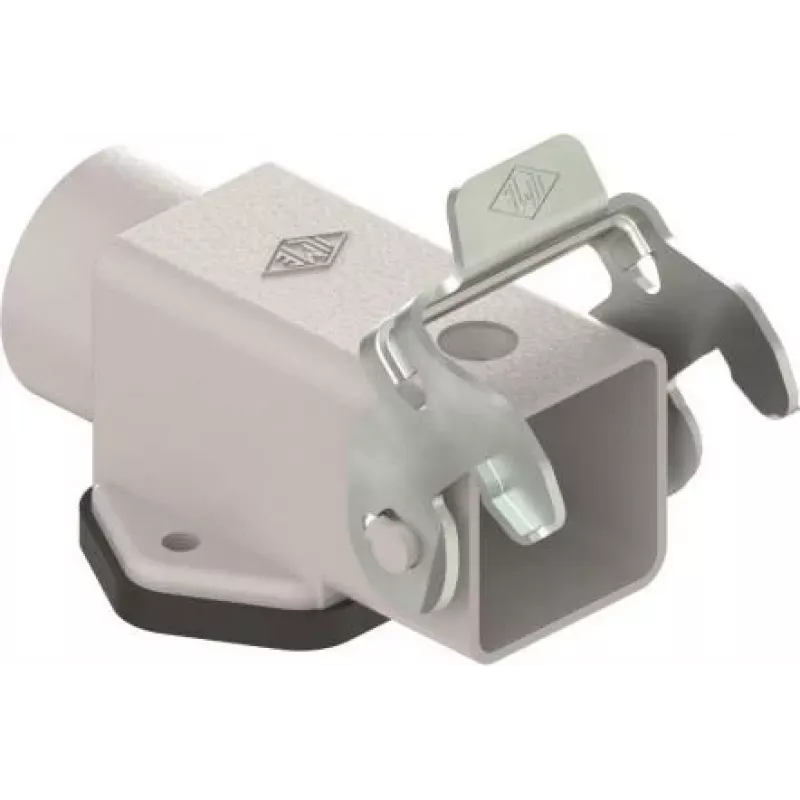

ILME MKA IAP20 carcasa de superficie angular, tamaño 21.21, zinc fundido a presión, entrada M20, palanca de acero

The ILME MKA IAP20 is an angled surface mount housing for industrial rectangular connectors. Its side-entry design routes cables at 90 degrees, saving space in control panels and machinery. The die-cast zinc body provides robust mechanical protection, while the single steel lever ensures secure mating and quick locking. With an M20 threaded entry, it accommodates standard cable glands for reliable strain relief. This housing is compatible with ILME size 21.21 (3A) inserts, making it suitable for signal and low-power connections in automation, robotics, and industrial equipment. The zinc-plated surface offers corrosion resistance, and the housing achieves IP66/IP67 protection when properly mated, making it suitable for demanding environments.

Highlights

• Angled (side entry) design for space-constrained installations
• Die-cast zinc alloy construction with zinc plating
• Single steel lever for secure locking
• M20 cable entry thread for standard glands
• Compatible with ILME size 21.21 (3A) inserts
• IP66/IP67 protection when mated
• Wide temperature range: -40°C to +125°C

In daily use

Install the housing on a panel or surface, insert the appropriate ILME 21.21 insert, and close the lever to lock the connection. The angled entry directs the cable sideways, reducing overall height and protecting the cable from sharp bends. The zinc body withstands mechanical impacts, while the plating resists oxidation. For outdoor or washdown applications, use a suitable cable gland and ensure proper sealing to maintain the IP rating.

Full specifications

• Housing type: Surface mount housing
• Orientation: Angled (side entry)
• Size: 21.21 (3A)
• Housing material: Die-cast zinc alloy
• Surface treatment: Zinc plated
• Locking mechanism: Single lever
• Lever material: Steel
• Cable entry thread: M20
• Number of cable entries: 1
• Protection degree: IP66 / IP67 (when mated)
• Temperature range: -40°C to +125°C
• Compatibility: ILME size 21.21 (3A) inserts
• Series: MKA
• Colour: Metallic (zinc)
• Mounting type: Panel/surface mount
• RoHS compliant: Yes
• REACH compliant: Yes

Final note

The MKA IAP20 combines rugged construction with a compact angled form factor, making it a reliable choice for industrial connector applications where space and durability matter.
