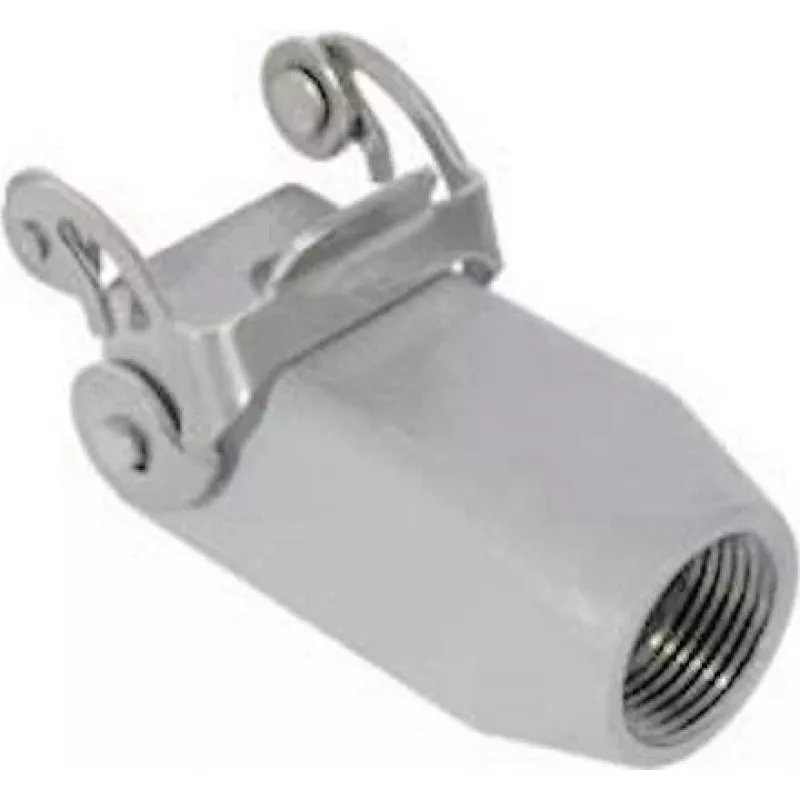

ILME MKAX VG20 Carcasa de acoplamiento tamaño 21.21 M20 recta palanca única

The MKAX VG20 coupling housing from ILME stands out with its single stainless steel locking lever and straight M20 cable entry, offering secure mating for size 21.21 rectangular connectors in industrial environments.

Highlights

• Die-cast zinc alloy housing with grey powder coating
• Single stainless steel locking lever
• Straight M20 cable entry
• Compatible with ILME size 21.21 inserts

In daily use

This hood provides a robust enclosure for connector inserts, protecting them from dust and water ingress when mated. The straight cable entry allows for straightforward cable routing in control cabinets and machinery.

Full specifications

• Series: MKAX
• Size: 21.21
• Cable entry thread: M20
• Cable entry orientation: Straight
• Number of cable entries: 1
• Housing material: Die-cast zinc alloy
• Locking lever type: Single lever
• Locking lever material: Stainless steel
• Protection degree: IP65 / IP66 when mated
• Operating temperature: -40°C to +125°C
• Surface treatment: Powder coated
• Colour: Grey (RAL 7037)
• Insert compatibility: ILME size 21.21 inserts
• RoHS compliance: Yes
• UL/CSA approved: Yes

Final note

A reliable choice for demanding connectivity applications requiring a secure locking mechanism and environmental protection.
