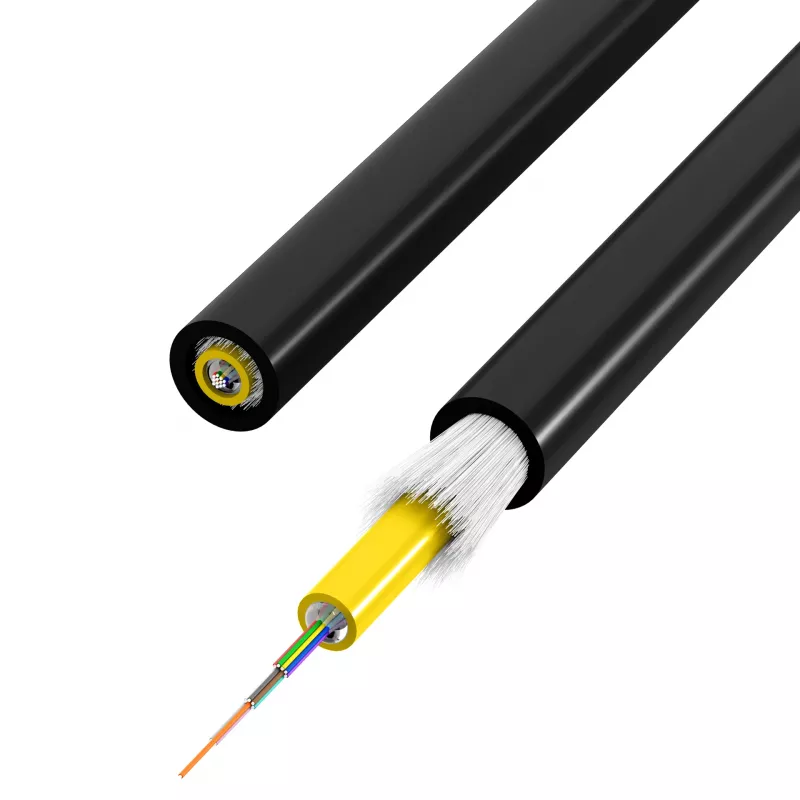

INFRALAN A-DQ(ZN)B2Y OM3 8G (1x8) Fca 2000N negro 5,8mm cable de fibra óptica exterior A8M3F1

This INFRALAN outdoor fiber optic cable stands out with its high tensile strength of 2000 N and non-metallic strain relief, making it ideal for demanding outdoor installations. Its compact 5.8 mm diameter and black PE jacket ensure durability and UV resistance for duct or direct burial use.

Highlights

• OM3 multimode fiber with 50/125 µm core/cladding diameter
• 8 fibers in a loose tube construction (1x8)
• High tensile strength: 2000 N
• CPR fire rating: Fca
• Water-blocking and UV-resistant design

In daily use

The cable delivers reliable high-bandwidth performance with 1500 MHz·km at 850 nm and 500 MHz·km at 1300 nm, supporting high-speed data transmission over short to medium distances. Its non-metallic glass yarn strain relief ensures safe installation without risk of electrical interference.

Full specifications

• Fiber Type: OM3 Multimode
• Number of Fibers: 8

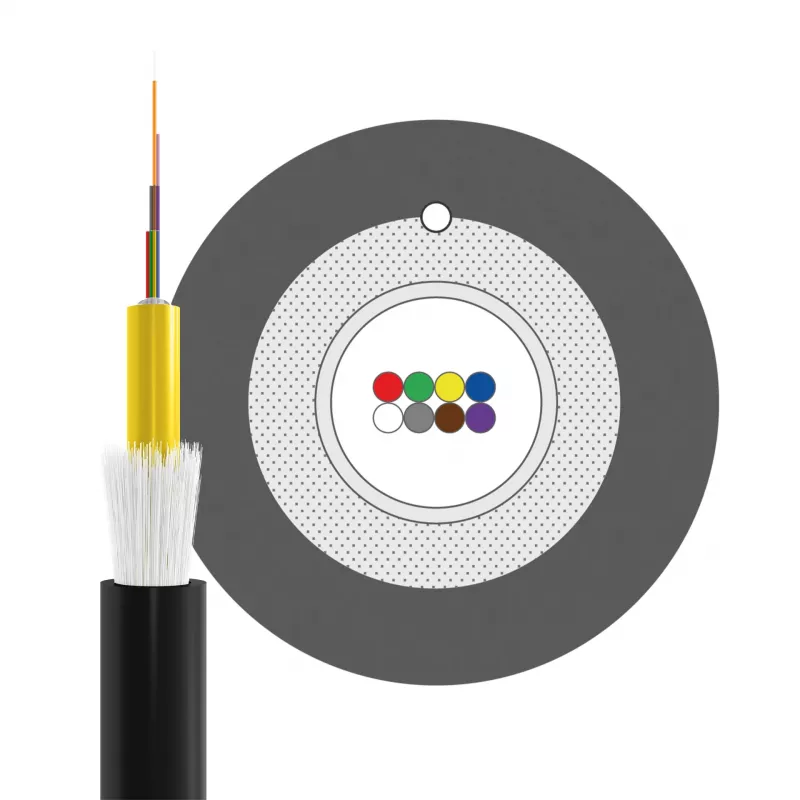

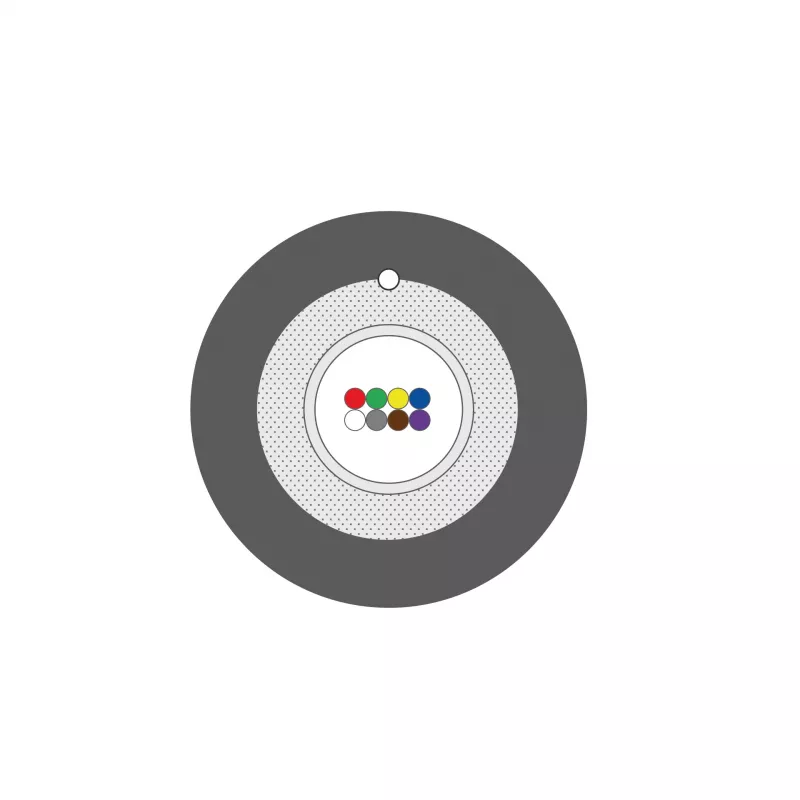

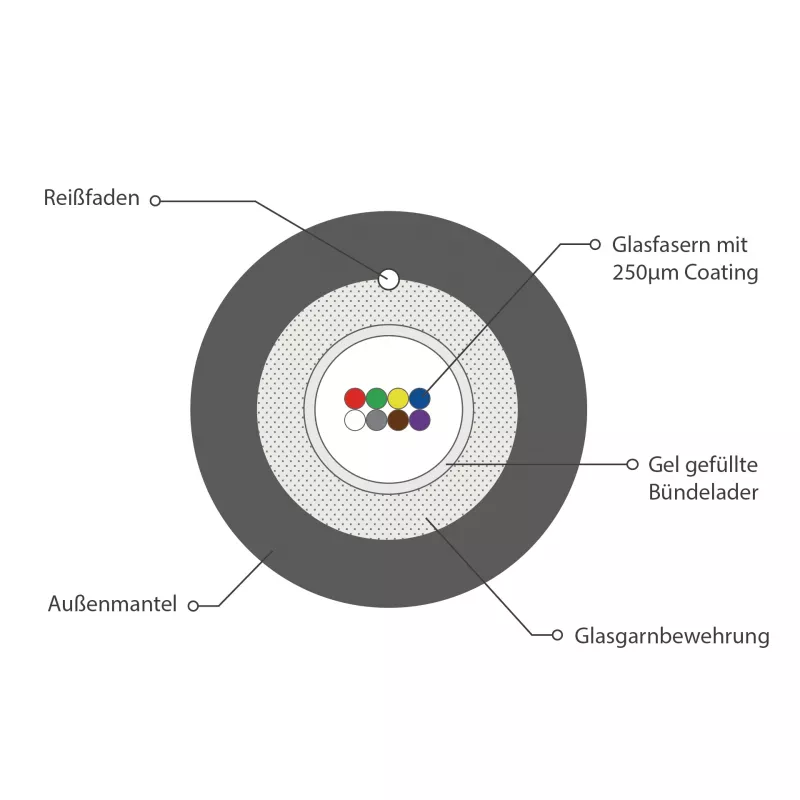

• Cable Construction: Loose Tube (1x8)
• Cable Designation: A-DQ(ZN)B2Y
• Outer Diameter: 5.8 mm
• Jacket Material: Polyethylene (PE)
• Jacket Color: Black
• Tensile Strength: 2000 N
• CPR Fire Rating: Fca
• Core/Cladding Diameter: 50/125 µm
• Max Bandwidth (850nm): 1500 MHz·km
• Max Bandwidth (1300nm): 500 MHz·km
• Application Environment: Outdoor, Duct, Direct Burial
• Strain Relief: Non-metallic (Glass Yarns)
• UV Resistance: Yes
• Water Blocking: Yes
• Attenuation (850nm): ≤ 2.5 dB/km
• Attenuation (1300nm): ≤ 0.8 dB/km
• Min. Bending Radius (Installation): 116 mm
• Min. Bending Radius (Operation): 58 mm

Final note

Engineered for outdoor resilience, this cable combines high strength with reliable optical performance.
