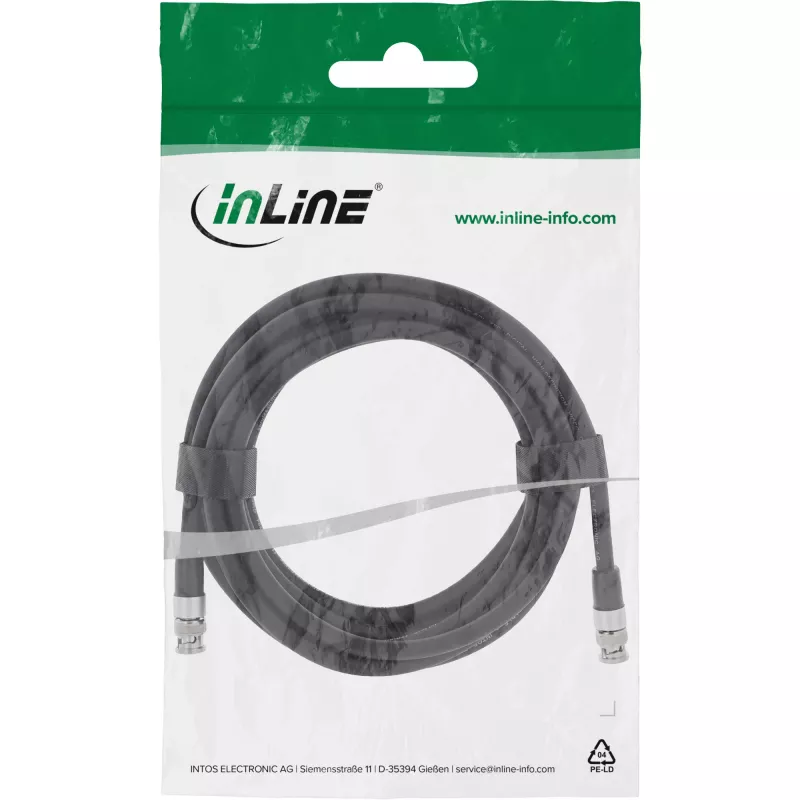

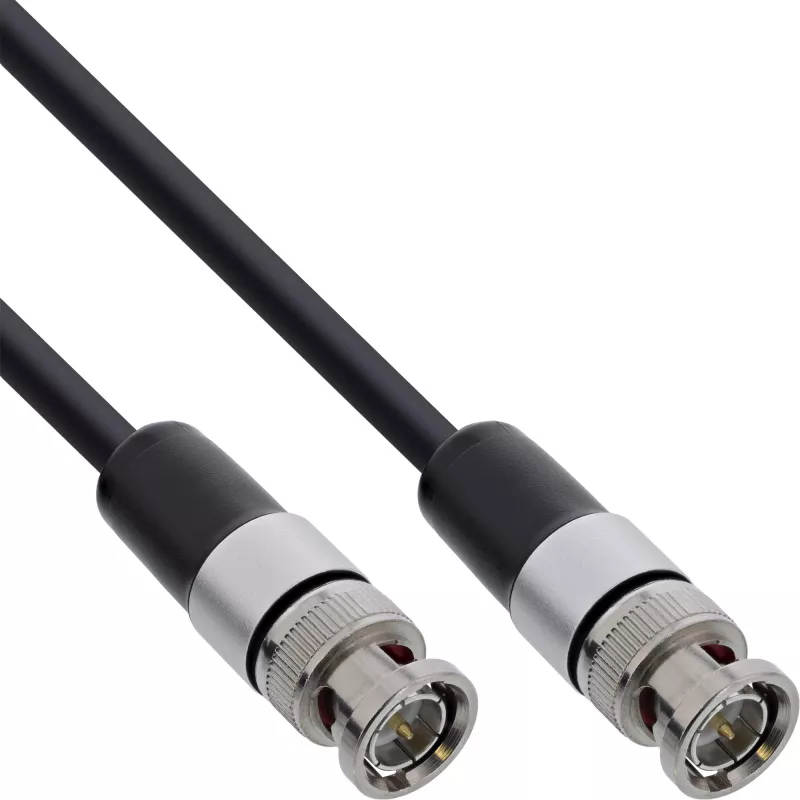

InLine 10805S Cable de vídeo BNC, 12G-SDI, 4K 60Hz, 75 Ohm, 5 m

The InLine 10805S is a 12G-SDI BNC video cable designed for high-resolution video transmission. It supports 4K Ultra HD at 60Hz and data rates up to 12 Gb/s over a single 75 Ohm coaxial cable, making it suitable for professional SDI applications.

Key features

• Supports 4K Ultra HD at 60Hz
• Data transmission rate up to 12 Gb/s
• 75 Ohm impedance
• Compatible with SD-SDI, HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI
• Double shielding for minimised signal loss
• Lockable BNC connectors
• Flexible length selection from 0.5 m to 30 m

Specifications

• Brand: InLine
• MPN: 10805S
• Connector 1: BNC plug
• Connector 2: BNC plug
• Impedance: 75 ohms
• Supported standards: SD-SDI, HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI
• Maximum resolution: 4K @ 60Hz
• Data transmission rate: 12Gb/s
• Type: BNC & VGA
• Outer diameter: 7.8mm
• Operation temperature: -20 to +75°C
• Article width: 1.5cm
• Article height: 1.7cm
• Article length: 500cm
• Country of origin: Taiwan
• Diameter: AWG 16
• Bending radius (static): 50mm
• Bending radius (dynamic): 120mm
• Storage temperature: -20 to +60°C
• Signal: Video
• Design: Round cable
• Length: 5m
• Variant: Premium cable
• Shielding: Double shielding
• Side A: BNC plug
• Side B: BNC plug
• Colour: Black
