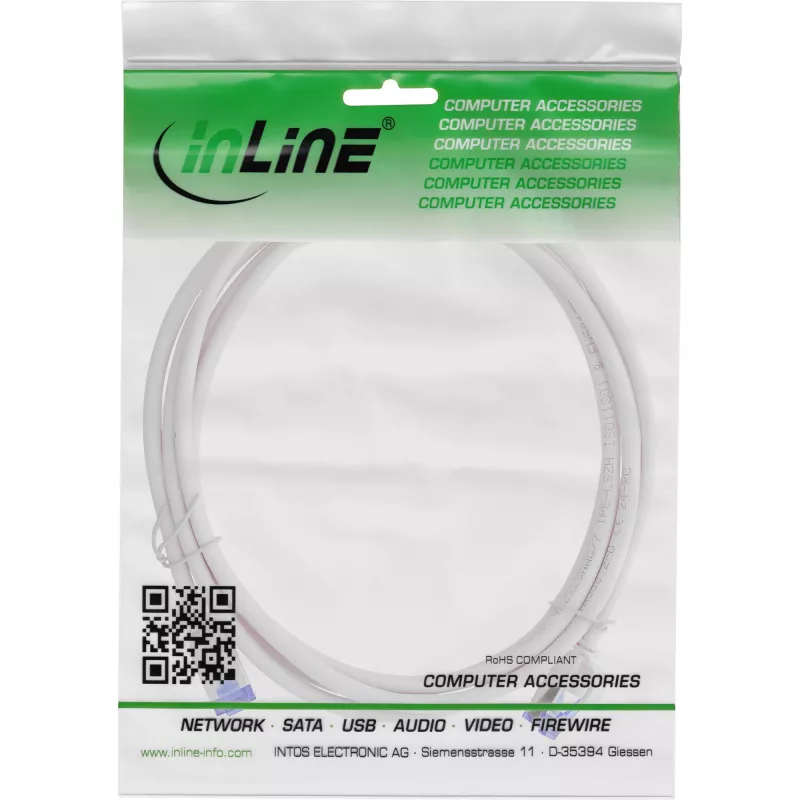

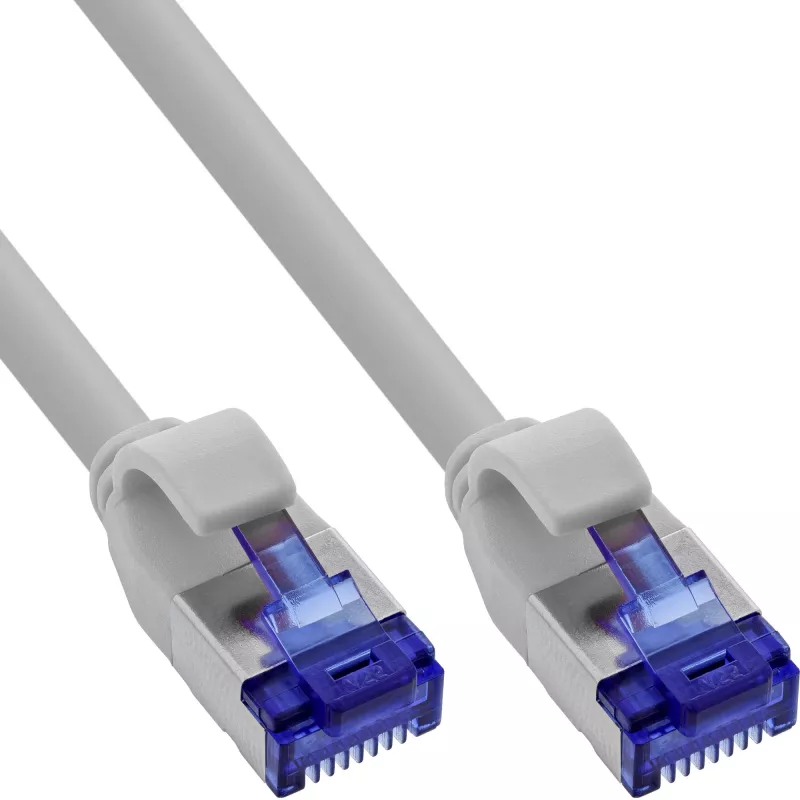

InLine 74902 Cable de red gris 2 m Cat6a S/FTP (S-STP)

InLine 74902 Cable de red gris 2 m Cat6a S/FTP (S-STP)
InLine 74902 Cable de red gris 2 m Cat6a S/FTP (S-STP)
InLine 74902 Cable de red gris 2 m Cat6a S/FTP (S-STP)
InLine 74902 Cable de red gris 2 m Cat6a S/FTP (S-STP)
InLine 74902 Cable de red gris 2 m Cat6a S/FTP (S-STP)
InLine 74902 Cable de red gris 2 m Cat6a S/FTP (S-STP)
InLine 74902 Cable de red gris 2 m Cat6a S/FTP (S-STP)
InLine 74902 Cable de red gris 2 m Cat6a S/FTP (S-STP)
7,33 €
PDF
PDF
Stock 1804 Código 1431610 Modelo 74902 Garantía 3 años

Envíos y devoluciones

Entrega estimada jueves, 3 de diciembre
Te mantendremos informado a través de nuestro sistema de seguimiento detallado
Opciones de pago
Tarjeta bancariaVisaMastercardPayPalApple PayGoogle PayTransferencia bancaria

Haz una pregunta: el asistente IA responde al instante.

Descripción

Space-saving design for maximum port density: Approx. 40 % less space required than conventional AWG26 patch cables – ideal for network cabinets and server rooms.
High-quality copper conductors for maximum performance: Full Cat.6A transmission quality with up to 10 Gbit/s over lengths of up to 30 meters.
PoE support up to 87 watts (4PPoE): Enables energy-efficient operation of IP cameras, access points or VoIP telephones without additional power supply units.
Sustainable & economical: Approx. 25% material savings reduce transportation and manufacturing costs and improve the CO2 balance.
Flexible, safe TPE sheath (LSZH): Flame-retardant, halogen-free and particularly flexible for narrow installation paths.

The InLine® Slim Cat.6A S/FTP patch cable seriescombines highest network performance with maximum space and energy efficiency. Thanks to the particularly slim design with AWG28 conductors, these cables enable a significantly higher port density in network cabinets and ensure improved air circulation, which increases cooling and efficiency.

In contrast to conventional, thinner AWG32 cables, this cable supports full Cat.6A transmission quality at up to 500 MHzand 4PPoEwith up to87 watts. This makes it the ideal solution for professional applications where a combination of space-saving, PoE capability and high performance is required.

The use of high-quality copper conductors minimizes signal loss and ensures a reliable network connection - even over distances of up to 30 metres. The S/FTP double shielding reliably protects the cable from electromagnetic interference.

In addition to its technical performance, this cable also offers ecological benefits: Approx. 25% less material usedreduces transportation costs and, in the long term, environmental taxes in accordance with future Green Law requirements.

The TPE sheath (LSZH)combines flexibility with fire protection: It is halogen-free, flame-retardant and ensures minimal smoke development in the event of fire – ideal for safety-critical applications.
Additional technical specifications:

Conductor material: Pure copper
Cable construction: S/FTP (pair and overall shielding)
Sheath material: TPE (LSZH – Low Smoke Zero Halogen)
Wire gauge: AWG28
Operating temperature: -20 to +75 °C
Outlet diameter: 4.5 mm
Population: 1:1 according to T568B
PoE support: Yes, up to 87 watts (4PPoE)

InLine 74902. Cable length: 2 m, Cable standard: Cat6a, Cable shielding: S/FTP (S-STP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Data transfer rate: 10000 Mbit/s, Product colour: Grey

Aspectos destacados
  • 2 m
  • RJ-45 Straight Male
  • RJ-45 Straight Male
  • Cat6a S/FTP (S-STP)
  • 10000 Mbit/s
  • Power over Ethernet (PoE)
  • Grey

Especificaciones

Especificaciones
Alimentación a través de Ethernet (PoE)
Sí
Altura
12 mm
Altura del embalaje
15 mm
Ancho
15 mm
Ancho del embalaje
173 mm
Apantallamiento del cable
S/FTP (S-STP)
Calibre AWG del cable
28
Cantidad por paquete
1 pc(s)
Certificados de conformidad
CE, REACH, RoHS
Color del producto
Gris
Conector 1
RJ-45
Conector 2
RJ-45
Conformidad de sostenibilidad
No
Diámetro exterior
4.5 mm
Dimensiones (An x Al x P)
15 x 2000 x 12 mm
Estándar del cable
Cat6a
Forma del cable
Redondo
Formato del conector 1
Recto
Formato del conector 2
Recto
Frecuencia
500 MHz
Género del conector 1
Macho
Género del conector 2
Macho
Longitud del cable
2 m
Material de la funda
Low smoke zero halogen (LSZH), Thermoplastic elastomer (TPE)
Material del conductor
Cobre
Peso
52 g
Peso del embalaje
52 g
Profundidad
2000 mm
Profundidad del embalaje
243 mm
Protector moldeado del cable
Sí
Recubrimiento de los contactos del conector
Oro
Temperatura de funcionamiento (T-T)
-20 - 75 °C
Tipo de embalaje
Bolsa de plástico
Tipo de Power over Ethernet (PoE) compatible
PoE+, PoE++ (4PPoE)
Velocidad de transferencia de datos
10000 Mbit/s
Volumen del embalaje
700 cm³
