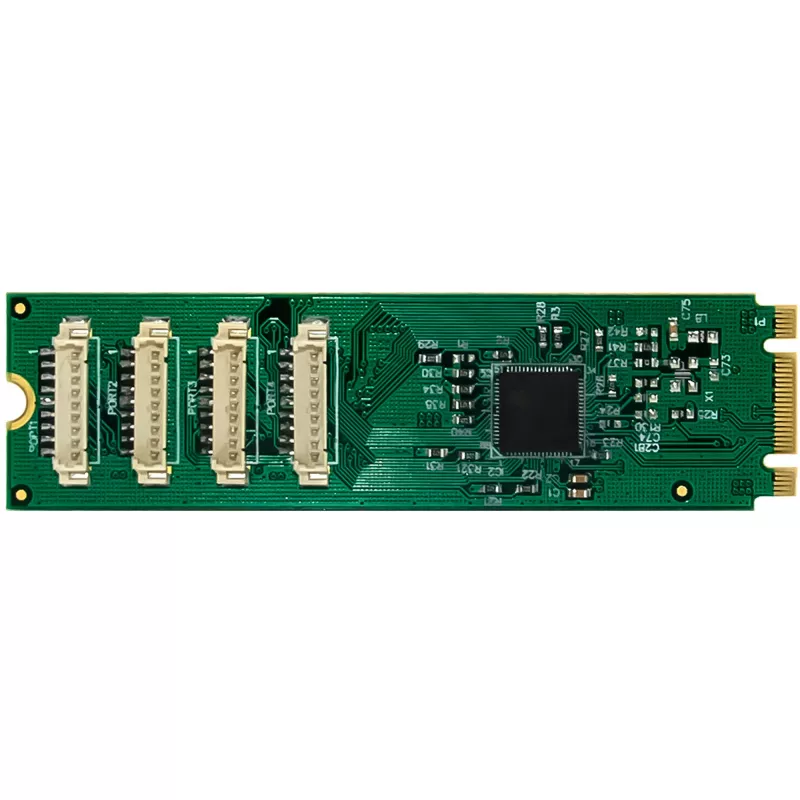

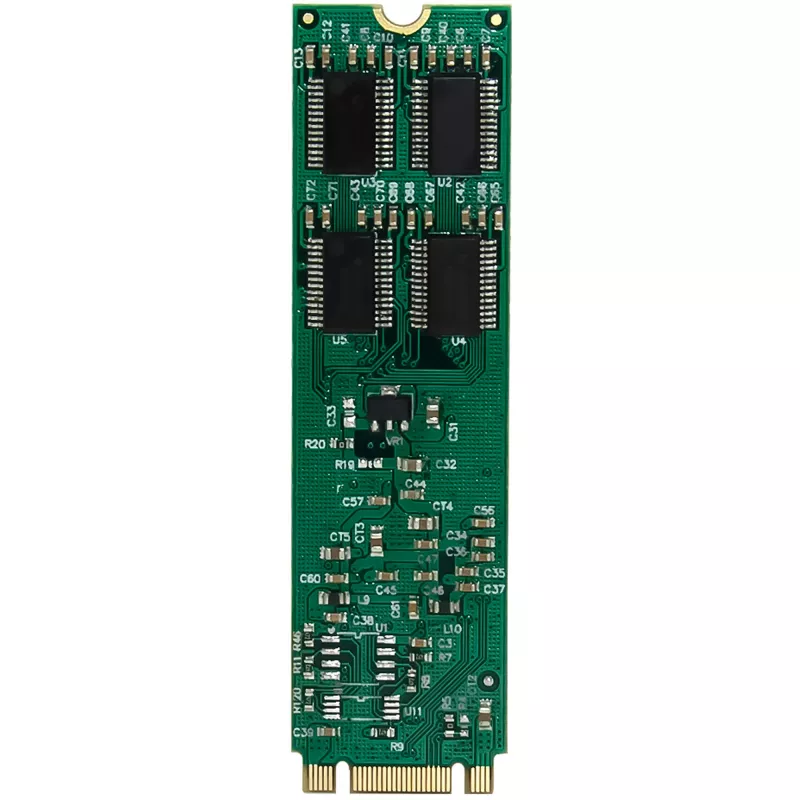

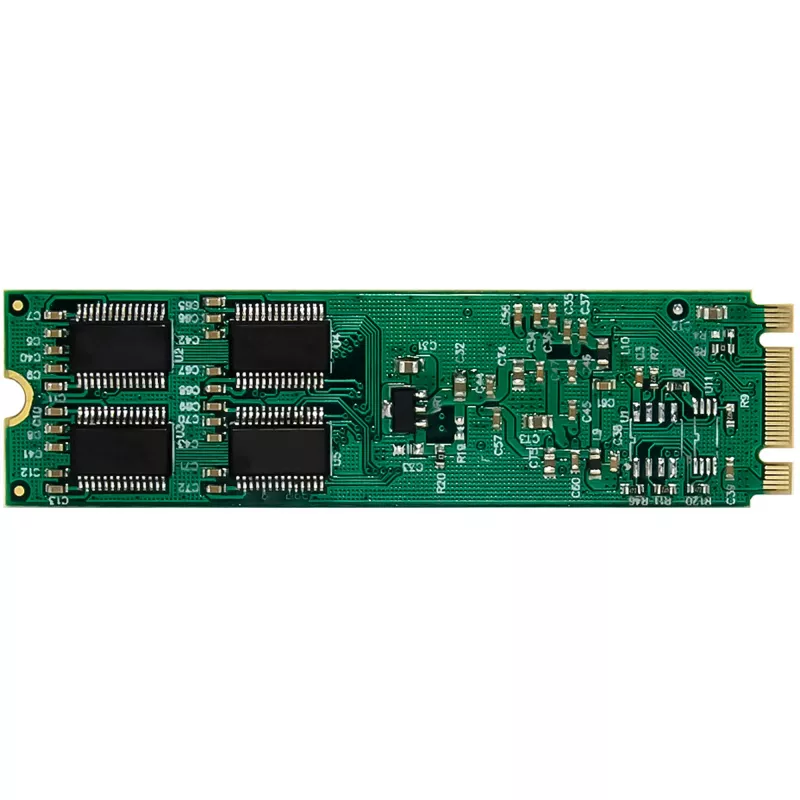

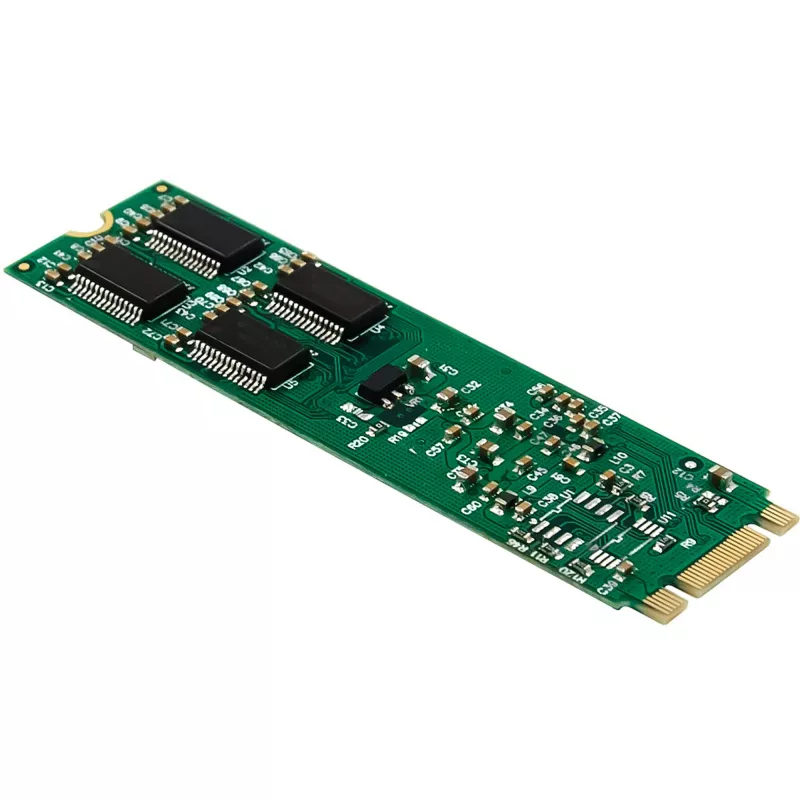

InLine 76660W adaptador serie interno M.2 conector macho ASIX AX99100 4 Gbit/s

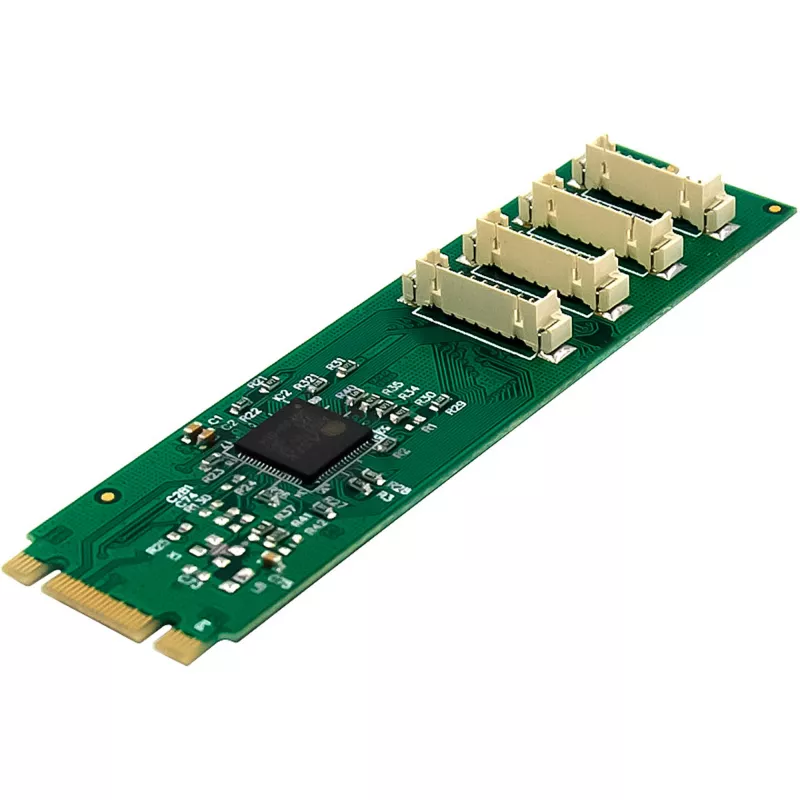

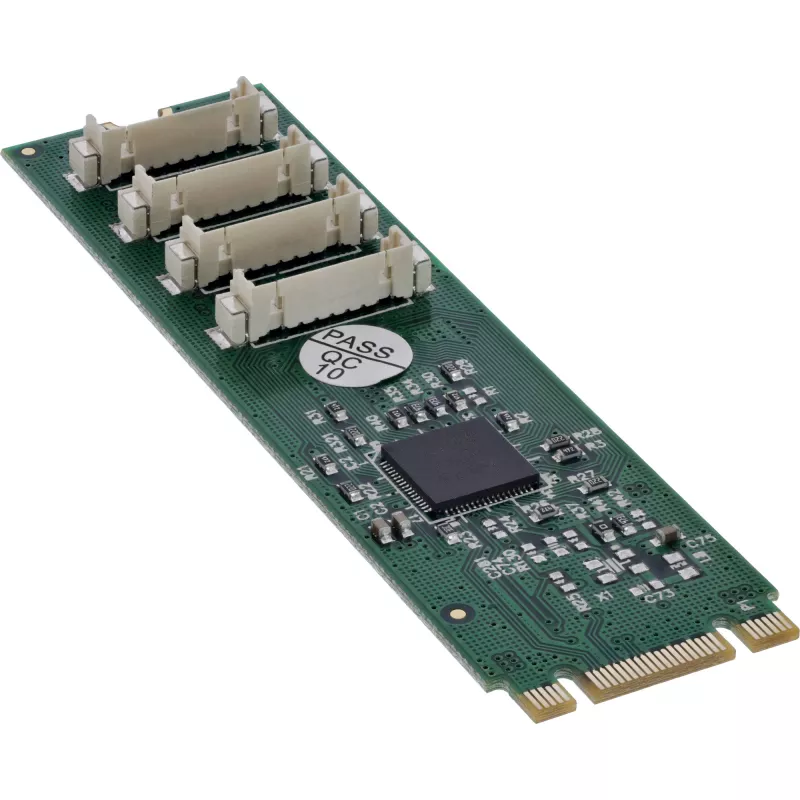

Expansion card for converting M.2 to 4x serial 9-pin connectors
PCIe 3.0 x4 interfacewith support for high data rates
Automatic lane detection at bootfor easy system integration
Onboard LED indicatorto display the operating activity
Compatible with Windows and Linux

The InLine® interface card M.2 to 4x serial 9pin connectorenables the use of up to four serial interfaces (DB9-9pin) and offers a powerful conversion from M.2 to serial communication. The card is equipped with a PCIe 3.0 x4 interfaceand supports data rates of up to 4 Gb/s.
The automatic lane detection at boot ensures seamless system integration. The card is powered directly via the PCIe bus (3.3 V). The scope of delivery also includes low-profile slot bracketsso that the card can also be used in more compact systems.
Technical data:

Bus type & PCIe: PCIe 3.0 x4 (maximum bandwidth up to 4 Gb/s)
Controller/chipset: ASIX AX99100
Ports – interfaces:
1 x M.2 slot (Key M) for the module connection
4 x serial 9-pin connector (DB9-9pin)

Compatible module sizes: 2230, 2242, 2260, 2280
Dimensions: 22 mm x 80 mm (M.2 board)
Operating temperature: -40 °C to +85 °C

Functions:

Automatic lane detection during the boot process
LED indicator for displaying read/write activities
Power supply via PCIe bus (3.3 V)
No driver installation necessary

System requirements:Hardware:

Free PCIe x4 slot (also compatible with x8 or x16 slots)
Motherboard with PCIe 3.0 or higher

Operating system compatibility:

Windows: 11, 10, 8.1, 8, 7
Windows Server: 2012 R2
Linux: from kernel version 2.6

Scope of delivery:

1 x InLine® interface card M.2 to 4x serial 9pin connector

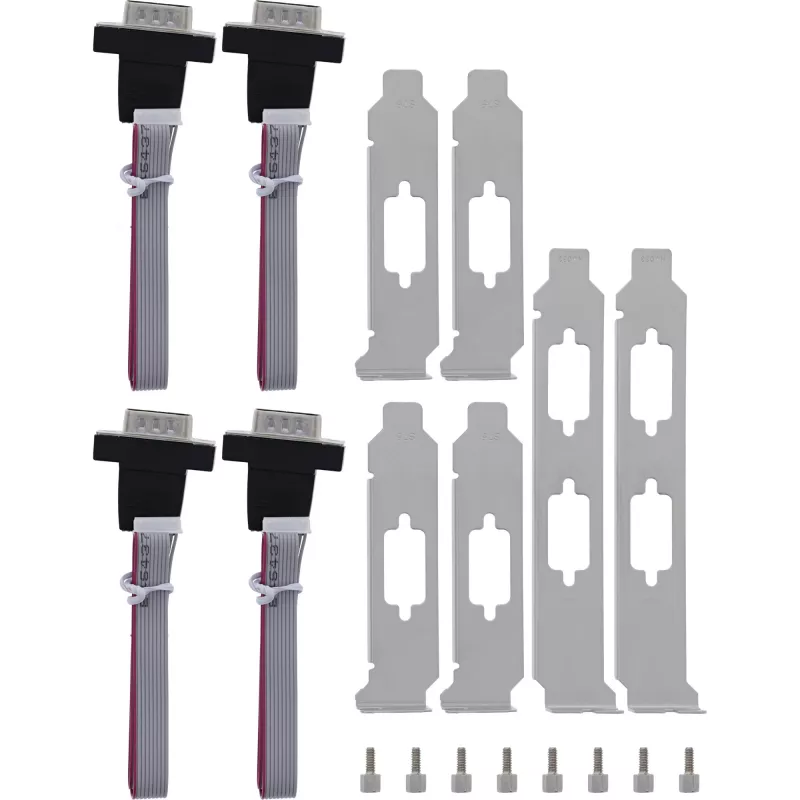

4 x low-profile slot brackets
2 x high-profile slot brackets

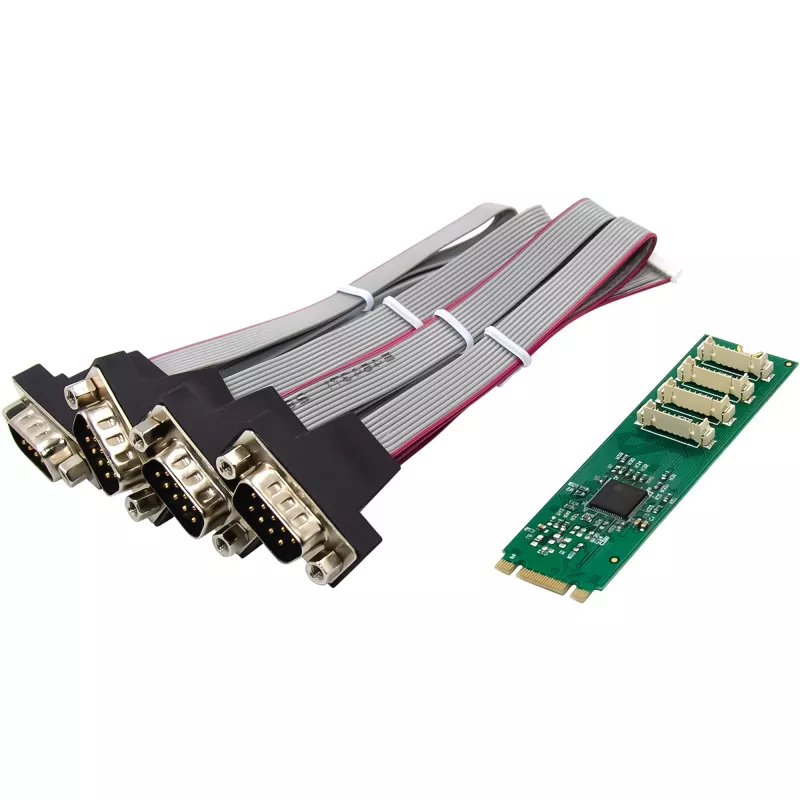

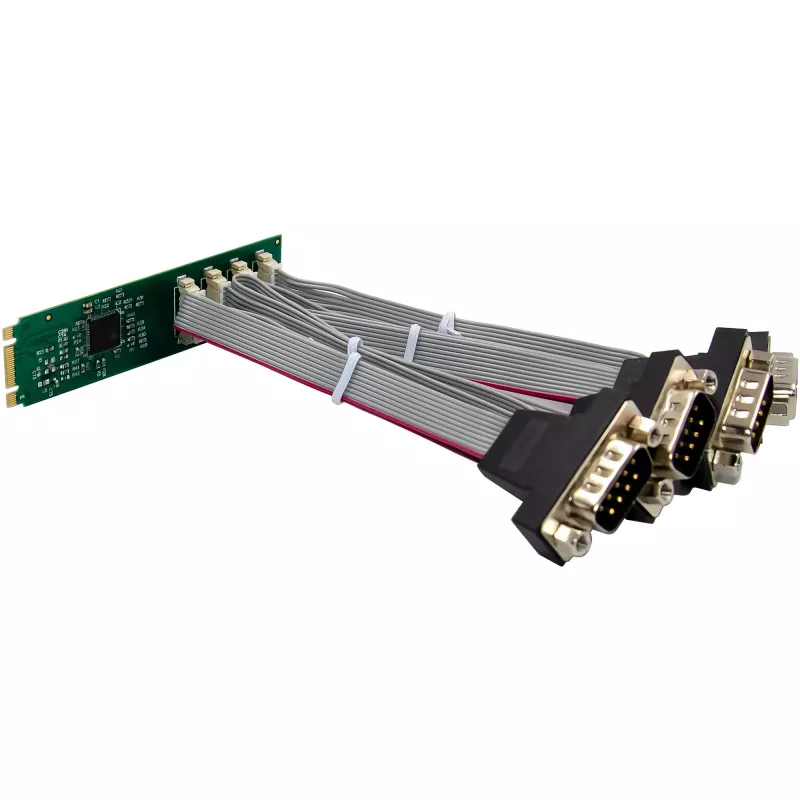

4 x DB9 9-pin serial cables (20 cm)
10 x screw
1 x driver CD
1 x user manual (German/English)
Operating temperature: 0° C – 55° C
Storage temperature: -40° C – 70° C
Humidity: 10% - 90% non-condensing

InLine 76660W. Host interface: M.2, Output interface: Serial, Host interface gender: Male. Country of origin: Taiwan. Chipset: ASIX AX99100, Data transfer rate (max): 4 Gbit/s. Power supply input voltage: 3.3 V. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1, Linux operating systems supported: Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linux Kernel..., Server operating systems supported: Windows Server 2012 R2

How to use

Install an appropriate M.2 module (Key M, sizes 2230–2280) into the adapter’s M.2 slot. Insert the adapter into a free PCIe x4/x8/x16 slot on the motherboard; the card will receive power from the PCIe bus. Connect serial devices to the four DB9 ports using the supplied cables. The card performs automatic lane detection during boot. Ensure the chosen M.2 module is compatible with your system and securely fasten the adapter using the supplied brackets and screws.

Recommendations

For stable operation, use a PCIe slot that supports PCIe 3.0 and verify operating system compatibility before connecting critical devices. Select the correct M.2 module size for the onboard slot and secure the card with the appropriate profile bracket when installing in compact systems.
