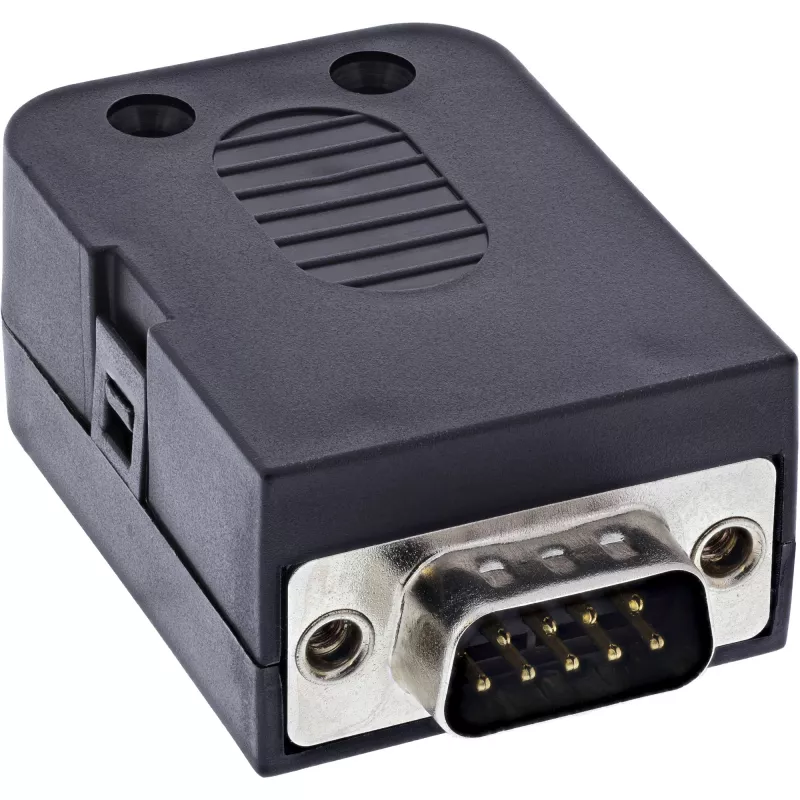

InLine 92501I Conector de cables regleta de bornes / D-Sub 9 negro

InLine 92501I Conector de cables regleta de bornes / D-Sub 9 negro
InLine 92501I Conector de cables regleta de bornes / D-Sub 9 negro
InLine 92501I Conector de cables regleta de bornes / D-Sub 9 negro
InLine 92501I Conector de cables regleta de bornes / D-Sub 9 negro
InLine 92501I Conector de cables regleta de bornes / D-Sub 9 negro
InLine 92501I Conector de cables regleta de bornes / D-Sub 9 negro
InLine 92501I Conector de cables regleta de bornes / D-Sub 9 negro
InLine 92501I Conector de cables regleta de bornes / D-Sub 9 negro
InLine 92501I Conector de cables regleta de bornes / D-Sub 9 negro
InLine 92501I Conector de cables regleta de bornes / D-Sub 9 negro
8,26 €
PDF
PDF
Stock 26 Código 1732235 Modelo 92501I Garantía 3 años

Envíos y devoluciones

Entrega estimada jueves, 3 de diciembre
Te mantendremos informado a través de nuestro sistema de seguimiento detallado
Opciones de pago
Tarjeta bancariaVisaMastercardPayPalApple PayGoogle PayTransferencia bancaria

Haz una pregunta: el asistente IA responde al instante.

Descripción

Time savings during installation:Quick wiring via screw terminals for 18–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Stable connection thanks to knurled screw:The D-Sub-9 connector is equipped with knurled screws (UNC #4-40) and ensures secure, tool-free attachment to matching sockets.
Versatile use in industry:Suitable for control technology, mechanical engineering, test setups, diagnostic purposes, and training systems.

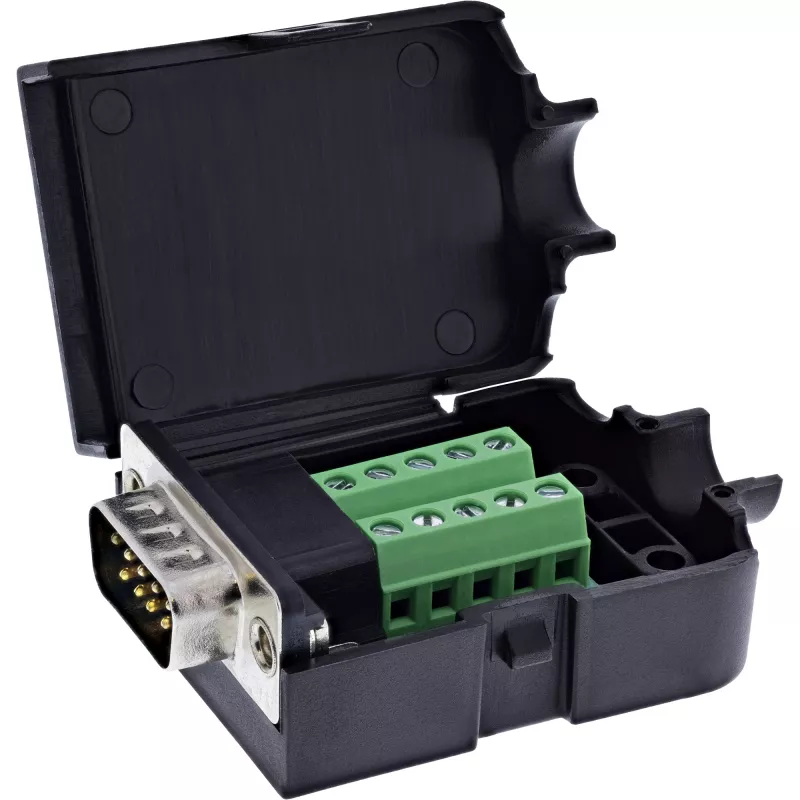

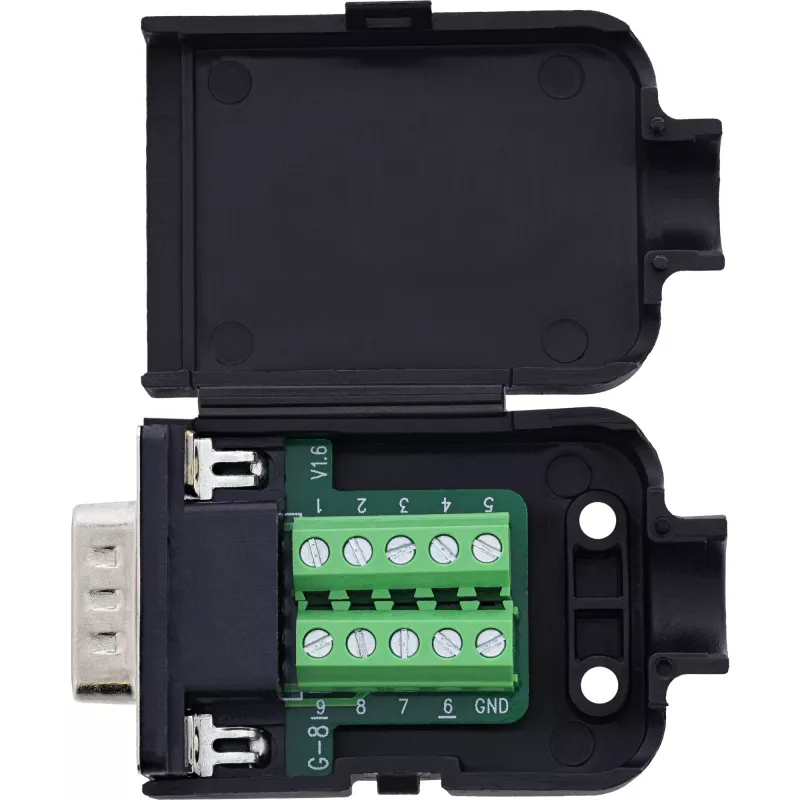

Breakout design with pressure plate: Individual wires can be connected flexibly and quickly to the screw terminals on the rear – ideal for laboratory or field use.
High signal quality:An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 0.8 A per pin ensure reliable signal transmission – even in continuous industrial use.

The InLine® D-Sub 9 breakout terminal block with connector offers a robust and flexible solution for open wiring of serial interfaces. Individual wires in the 18–26 AWG range can be connected quickly and securely via rear screw terminals with pressure plate technology. Wiring is tool-assisted with a flat-head screwdriver ≤ 2.5 mm.
The D-Sub plug is equipped with knurled screws (UNC #4-40) and can be securely screwed to matching sockets without tools. An EVA insulating layer on the underside provides additional protection when mounting on conductive surfaces. Its clear terminal structure and robust design make the adapter ideal for test benches, service applications, and mobile commissioning.

D-Sub 9 plug:Breakout design, with knurled screws (#4-40 UNC)
Connection technology:Screw terminal with pressure plate
Connection range:18–26 AWG
Actuation:With flat-blade screwdriver ≤ 2.5 mm
Rated current:0.8 A per pin
Max. operating voltage:100 V between two signals
Insulation resistance:≥ 10 MΩ @ 300 V DC
Operating temperature:–20 °C to +105 °C
Insulation layer:EVA insulation on underside
Dimensions: approx. 66.7 × 34.4 mm (L × W)

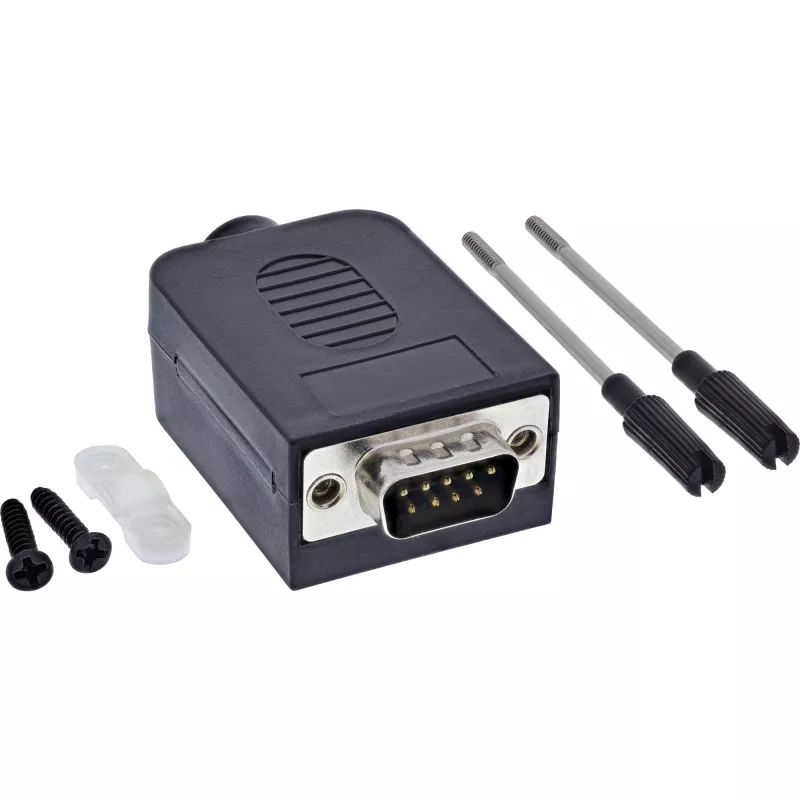

Accessories: 1× pressure plate, 2× screws

InLine 92501I. Connector(s): Terminal block / D-Sub 9, Product colour: Black, Connector gender: Male/Female. Compliance certificates: RoHS, TÜV mark. Dimensions (WxDxH): 34 x 67 x 21 mm, Weight: 24 g, Width: 34 mm. Quantity per pack: 1 pc(s), Package width: 100 mm, Package depth: 165 mm. Country of origin: Taiwan

Aspectos destacados
  • Terminal block / D-Sub 9 Male/Female
  • Black
  • 1 pc(s)

Especificaciones

Especificaciones
Altura
21 mm
Altura del embalaje
20 mm
Ancho
34 mm
Ancho del embalaje
100 mm
Calibre AWG del cable
26/18
Cantidad por paquete
1 pc(s)
Certificados de conformidad
RoHS, marca TÜV
Color del producto
Negro
Conectores
Bloque de terminales / D-Sub 9
Corriente
0.8 A
Dimensiones (An x Al x P)
34 x 67 x 21 mm
Género del conector
Macho/Hembra
País de origen
Taiwán
Peso
24 g
Peso del embalaje
31 g
Profundidad
67 mm
Profundidad del embalaje
165 mm
Resistencia de contacto
10 mΩ
Rigidez dieléctrica
300 V
Temperatura de funcionamiento (T-T)
-20 - 105 °C
Tensión
100 V
Tipo de embalaje
Bolsa de plástico
Volumen del embalaje
100 cm³
