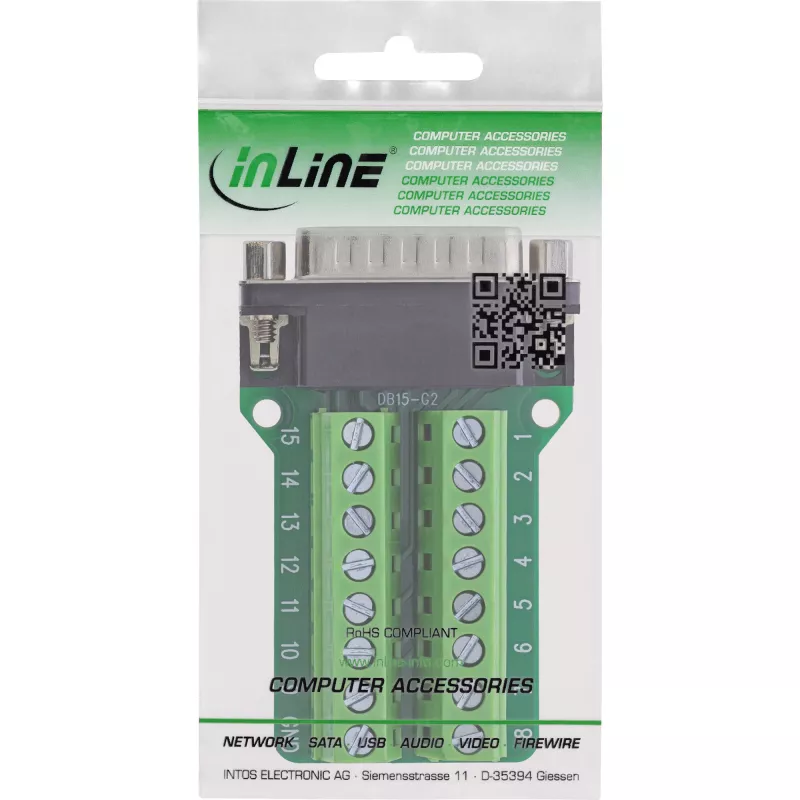

InLine 92502B Conector de cables regleta de bornes / D-Sub 15 negro, verde

InLine 92502B Conector de cables regleta de bornes / D-Sub 15 negro, verde
InLine 92502B Conector de cables regleta de bornes / D-Sub 15 negro, verde
InLine 92502B Conector de cables regleta de bornes / D-Sub 15 negro, verde
InLine 92502B Conector de cables regleta de bornes / D-Sub 15 negro, verde
InLine 92502B Conector de cables regleta de bornes / D-Sub 15 negro, verde
InLine 92502B Conector de cables regleta de bornes / D-Sub 15 negro, verde
9,65 €
PDF
PDF
Stock 45 Código 1732241 Modelo 92502B Garantía 3 años

Envíos y devoluciones

Entrega estimada jueves, 3 de diciembre
Te mantendremos informado a través de nuestro sistema de seguimiento detallado
Opciones de pago
Tarjeta bancariaVisaMastercardPayPalApple PayGoogle PayTransferencia bancaria

Haz una pregunta: el asistente IA responde al instante.

Descripción

Time savings during installation:Quick wiring via screw terminals for 18–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Stable connection thanks to screw lock: The 2-row D-Sub-15 connector is equipped with a mounting thread (UNC #4-40) and enables secure mechanical fixation with matching sockets.
Versatile use in industry:Ideal for serial control lines in automation, mechanical engineering, test stations, or signal distribution.
Compact design: Measuring approx. 62.5 × 31 × 16 mm, the terminal block can be integrated into existing installations in a space-saving manner – even with high contact density.
High signal quality:An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 0.7 A per pin ensure reliable signal transmission.

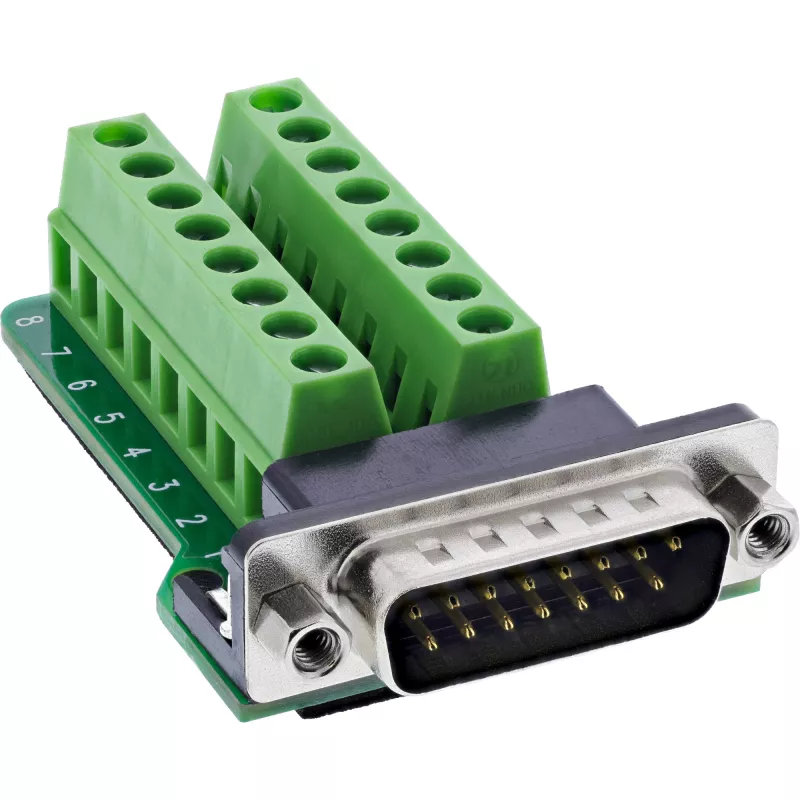

The InLine® D-Sub 15 terminal block with connector in a 2-row design is ideal for wiring serial signals between control components or for temporary connections in the control cabinet. The screw terminals with pressure plate allow the connection of single wires in the range of 18–26 AWG – without any soldering. Tool-assisted operation is carried out with a flat-head screwdriver ≤ 2.5 mm.
The integrated screw lock (UNC #4-40) ensures a stable, vibration-proof connection to matching sockets. The compact design makes the module particularly suitable for industrial applications with limited space.

D-Sub 15 plug:2-row, with mounting thread for plug locking (UNC #4-40)
Connection technology:Screw terminal with pressure plate
Connection range:18–26 AWG
Actuation:With flat-blade screwdriver ≤ 2.5 mm
Rated current: 0.7 A per pin
Max. operating voltage: 100 V between two signals
Insulation resistance:≥ 10 MΩ @ 300 V DC
Operating temperature:–20 °C to +105 °C
Insulation layer:EVA insulation on underside
Dimensions:approx. 63 × 39 × 18 mm (L × W × H)

InLine 92502B. Connector(s): Terminal block / D-Sub 15, Product colour: Black, Green, Connector gender: Male/Female. Compliance certificates: RoHS, TÜV mark. Dimensions (WxDxH): 39 x 63 x 18 mm, Weight: 34 g, Width: 39 mm. Quantity per pack: 1 pc(s), Package volume: 100 cm³, Package type: Polybag. Country of origin: Taiwan

Aspectos destacados
  • Terminal block / D-Sub 15 Male/Female
  • Black, Green
  • 1 pc(s)

Especificaciones

Especificaciones
Altura
18 mm
Ancho
39 mm
Calibre AWG del cable
26/18
Cantidad por paquete
1 pc(s)
Certificados de conformidad
RoHS, marca TÜV
Color del producto
Negro, verde
Conectores
Bloque de terminales / D-Sub 15
Corriente
0.7 A
Dimensiones (An x Al x P)
39 x 63 x 18 mm
Género del conector
Macho/Hembra
País de origen
Taiwán
Peso
34 g
Profundidad
63 mm
Resistencia de contacto
10 mΩ
Rigidez dieléctrica
300 V
Temperatura de funcionamiento (T-T)
-10 - 70 °C
Tensión
100 V
Tipo de embalaje
Bolsa de plástico
Volumen del embalaje
100 cm³
