InLine 92502C Conector de cables regleta de bornes / D-Sub 15 verde

Time savings during installation:Quick wiring via screw terminals for 16–24 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Stable connection thanks to screw lock: The 2-row D-Sub-15 female connector is equipped with a mounting thread (UNC #4-40) and enables secure mechanical fixation with matching plugs.
Versatile use in industry:Ideal for serial control lines in control cabinets, test benches, control systems, or building automation.
DIN rail mounting for structured installations: The robust DIN rail housing allows direct mounting on mounting rails – standard-compliant, secure, and space-saving.
High signal quality:An insulation resistance ≥ 10 MΩ at 300 V DC and a rated current of 1.0 A per pin ensure reliable signal transmission – even under continuous load.

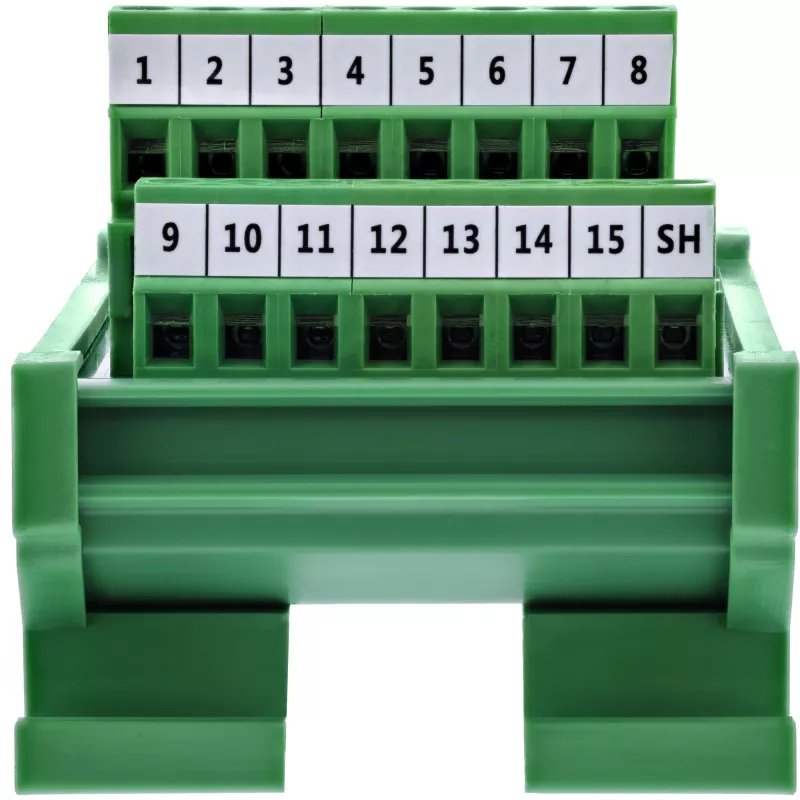

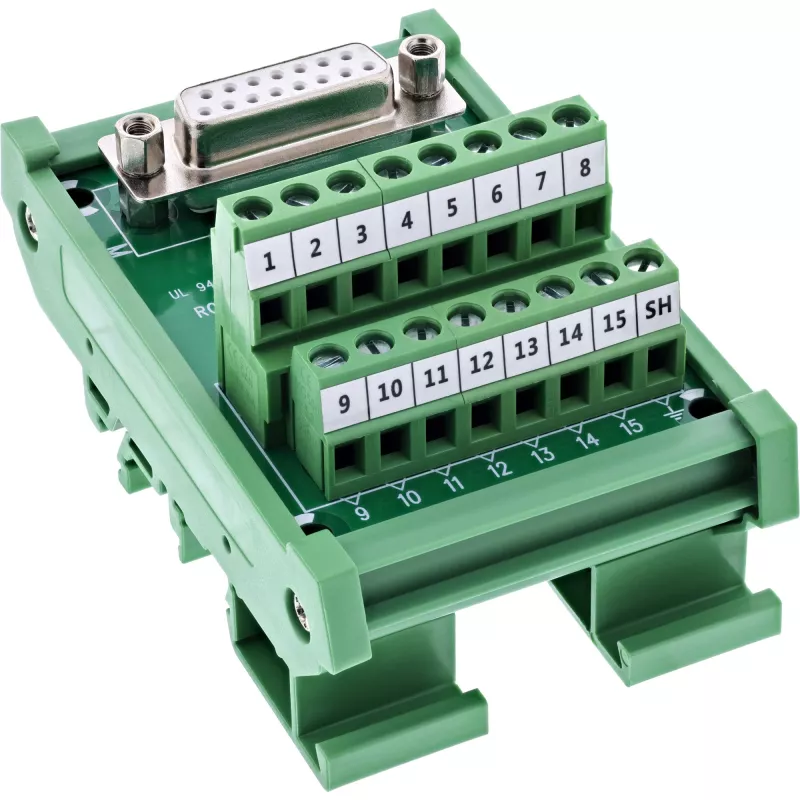

The InLine® D-Sub 15 terminal block with female connector in a 2-row design is specially designed for structured installations in control cabinets. The side-accessible screw terminals with pressure plate enable the connection of single wires in the range of 16–24 AWG. Tool-assisted wiring is carried out with a flat-head screwdriver ≤ 2.5 mm.

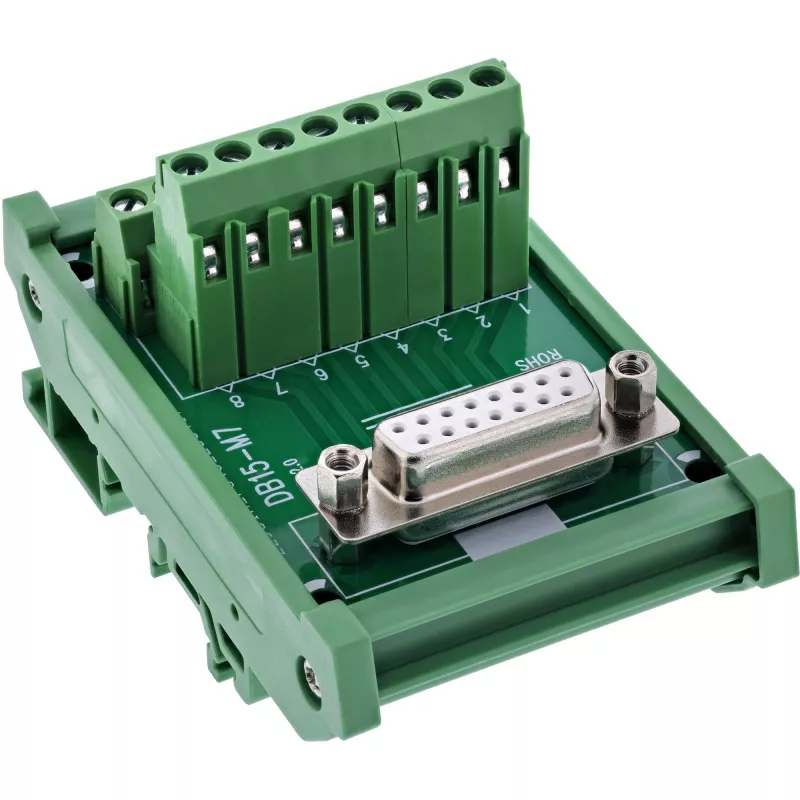

The socket has an integrated screw lock (UNC #4-40) for secure connection with matching connectors. The pre-assembled DIN rail clip allows direct mounting on industry-standard top-hat rails. The EVA insulating layer on the underside provides additional protection when mounting on conductive surfaces.

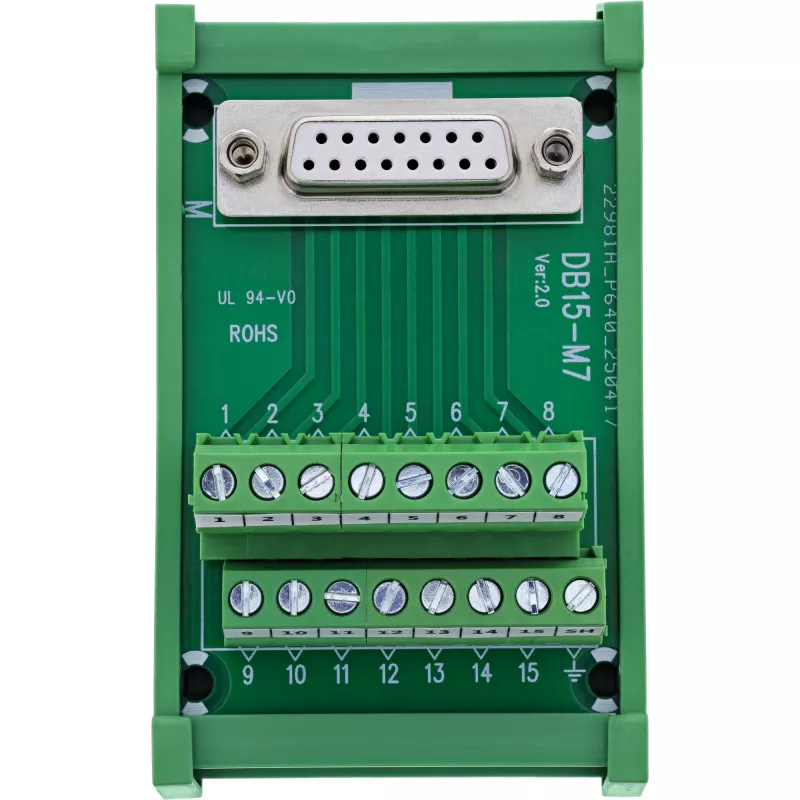

D-Sub 15 socket:2-row, with mounting thread for plug locking (UNC #4-40)
Connection technology:Screw terminal with pressure plate
Connection range:16–24 AWG
Actuation:With flat-blade screwdriver ≤ 2.5 mm
Rated current:1 A per pin
Max. operating voltage:100 V between two signals
Insulation resistance:≥ 10 MΩ @ 300 V DC
Operating temperature:–10 °C to +70 °C

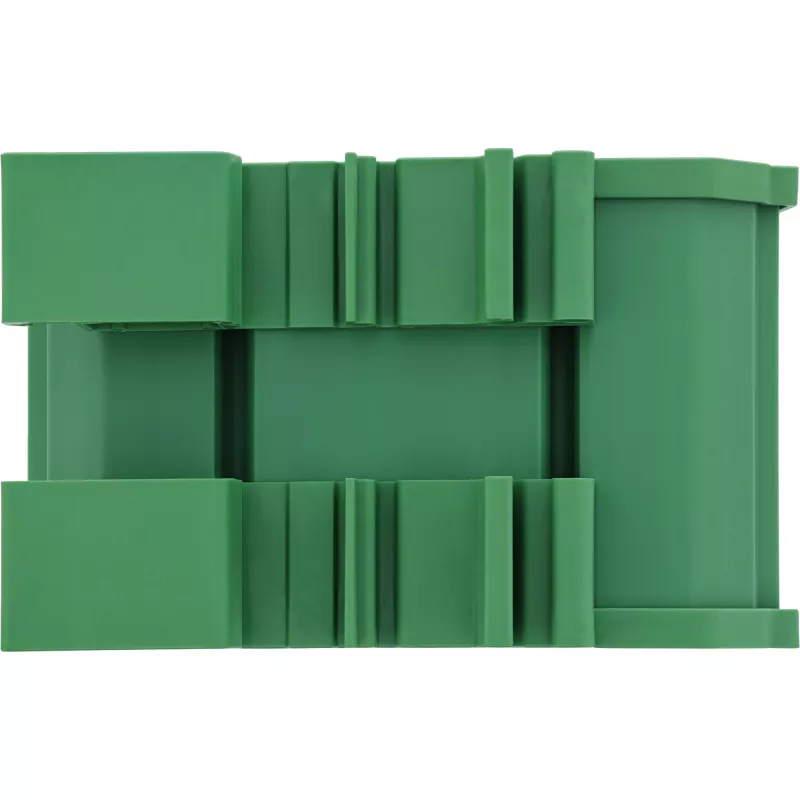

Insulation layer:EVA insulation on underside

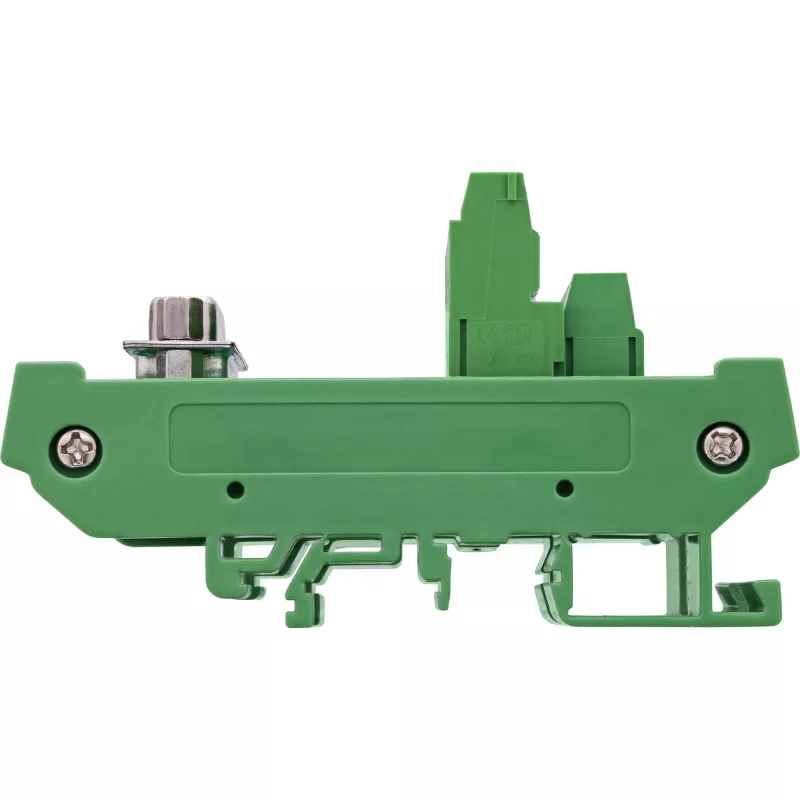

Mounting:Housing for direct mounting on DIN rail
Dimensions:approx. 87 × 53 × 51 mm (L × W × H)

InLine 92502C. Connector(s): Terminal block / D-Sub 15, Product colour: Green, Connector gender: Female/Female. Compliance certificates: RoHS, TÜV mark. Dimensions (WxDxH): 53 x 87 x 51 mm, Weight: 95 g, Width: 53 mm. Quantity per pack: 1 pc(s), Package width: 95 mm, Package depth: 125 mm. Country of origin: Taiwan
