InLine 92502G Conector de cables regleta de bornes / D-Sub 25 verde

InLine 92502G Conector de cables regleta de bornes / D-Sub 25 verde
InLine 92502G Conector de cables regleta de bornes / D-Sub 25 verde
InLine 92502G Conector de cables regleta de bornes / D-Sub 25 verde
InLine 92502G Conector de cables regleta de bornes / D-Sub 25 verde
InLine 92502G Conector de cables regleta de bornes / D-Sub 25 verde
InLine 92502G Conector de cables regleta de bornes / D-Sub 25 verde
InLine 92502G Conector de cables regleta de bornes / D-Sub 25 verde
InLine 92502G Conector de cables regleta de bornes / D-Sub 25 verde
InLine 92502G Conector de cables regleta de bornes / D-Sub 25 verde
InLine 92502G Conector de cables regleta de bornes / D-Sub 25 verde
InLine 92502G Conector de cables regleta de bornes / D-Sub 25 verde
InLine 92502G Conector de cables regleta de bornes / D-Sub 25 verde
InLine 92502G Conector de cables regleta de bornes / D-Sub 25 verde
InLine 92502G Conector de cables regleta de bornes / D-Sub 25 verde
30,31 €
PDF
PDF
Stock 181 Código 1732246 Modelo 92502G Garantía 3 años

Envíos y devoluciones

Entrega estimada jueves, 3 de diciembre
Te mantendremos informado a través de nuestro sistema de seguimiento detallado
Opciones de pago
Tarjeta bancariaVisaMastercardPayPalApple PayGoogle PayTransferencia bancaria

Haz una pregunta: el asistente IA responde al instante.

Descripción

Time savings during installation:Quick wiring via screw terminals for 18–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Dual interface for flexible connection: Equipped with a D-Sub-25 plug and a D-Sub-25 socket – ideal as a compact feed-through or branch point for serial signals.
Versatile industrial use: Suitable for structured wiring in control cabinets, machine control, signal distribution, or test setups.
DIN rail mounting for standard-compliant installation: The integrated DIN rail clip enables direct mounting on mounting rails – quick, workshop-ready, and space-saving.
High signal quality:An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 0.7 A per pin ensure reliable signal transmission – even under continuous load.

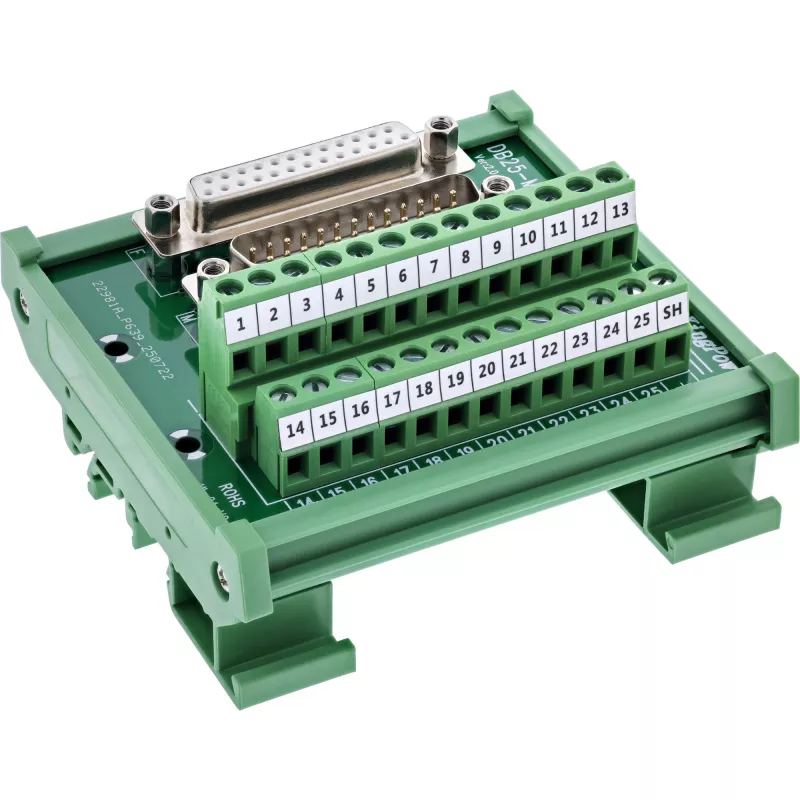

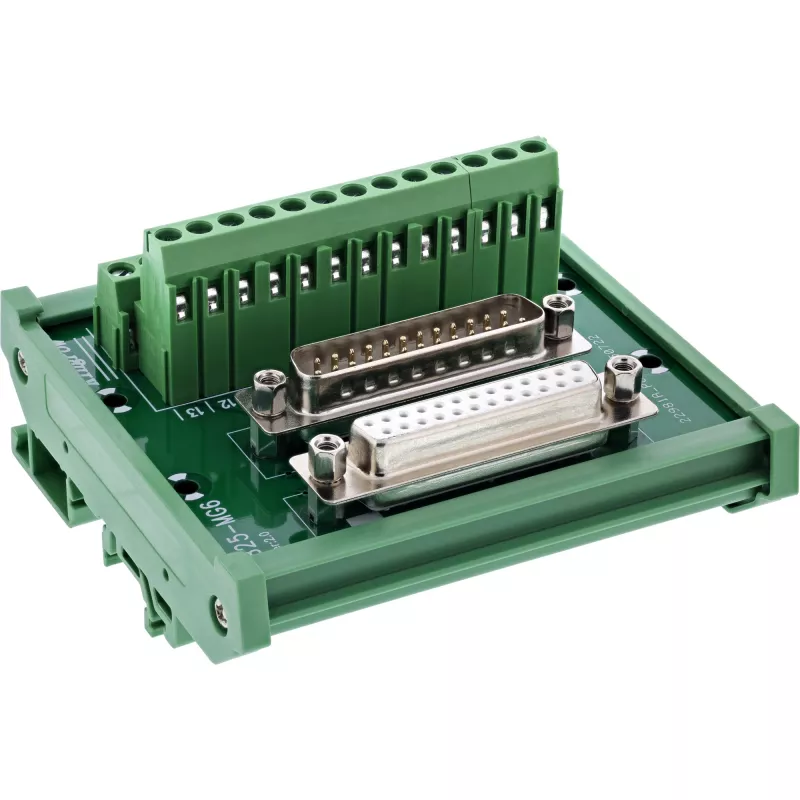

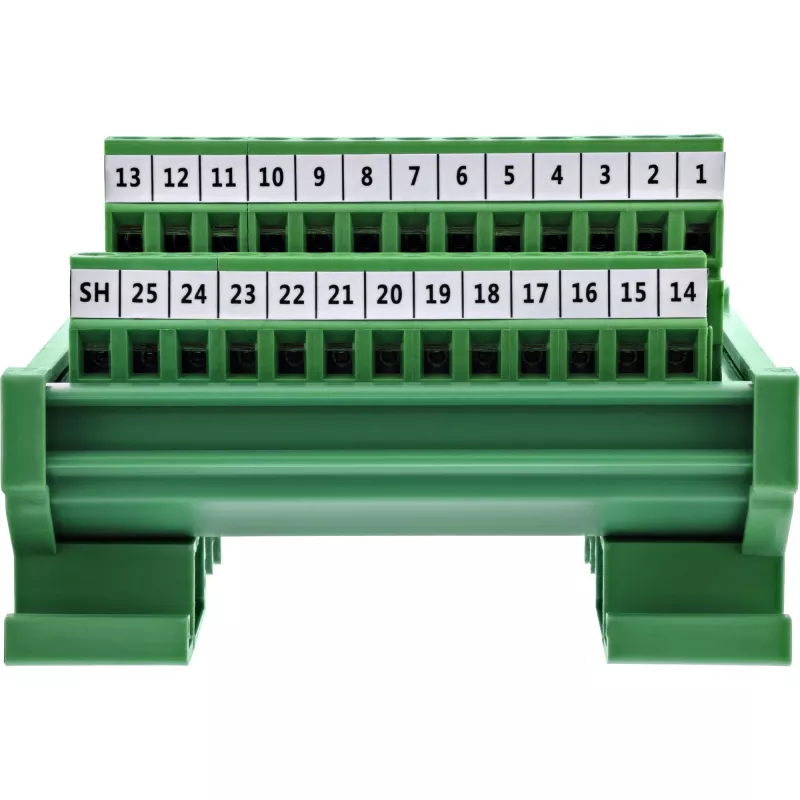

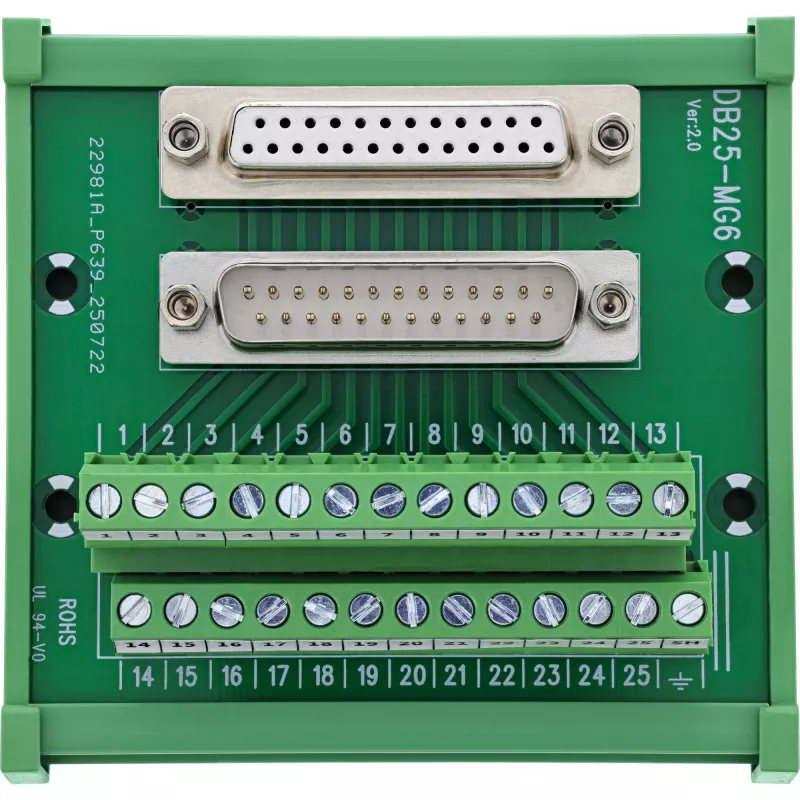

The InLine® D-Sub 25 terminal block with combined socket and plug design is designed for structured signal wiring in industrial applications. It combines two serial D-Sub interfaces (male & female) in a compact module. The side-accessible screw terminals with pressure plate allow the connection of wires in the range of 18–26 AWG – tool-assisted with a flat-head screwdriver ≤ 2.5 mm.

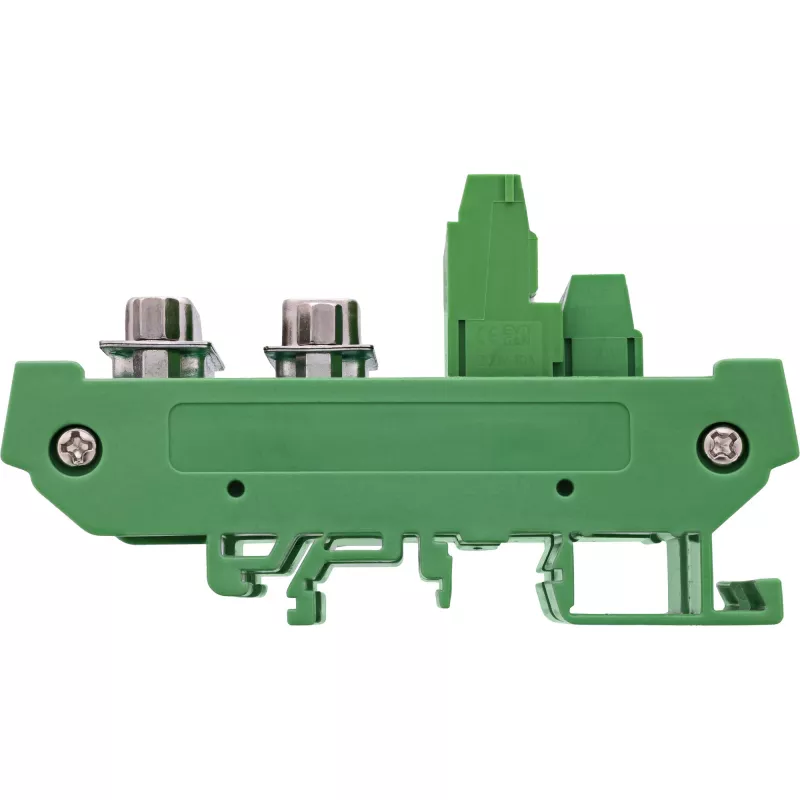

The robust plastic housing with pre-mounted DIN rail clip is suitable for quick mounting on top-hat rails. An EVA insulating layer provides protection when mounting on conductive surfaces. Ideal for control technology, prototyping, test stations, or handover solutions.

D-Sub 25 interfaces:1× female connector, 1× male connector, with mounting threads (UNC #4-40)
Connection technology:Screw terminal with pressure plate
Connection range:18–26 AWG
Actuation:With flat-blade screwdriver ≤ 2.5 mm
Rated current: 0.7 A per pin
Max. operating voltage: 100 V between two signals
Insulation resistance:≥ 10 MΩ @ 300 V DC
Operating temperature:–20 °C to +105 °C

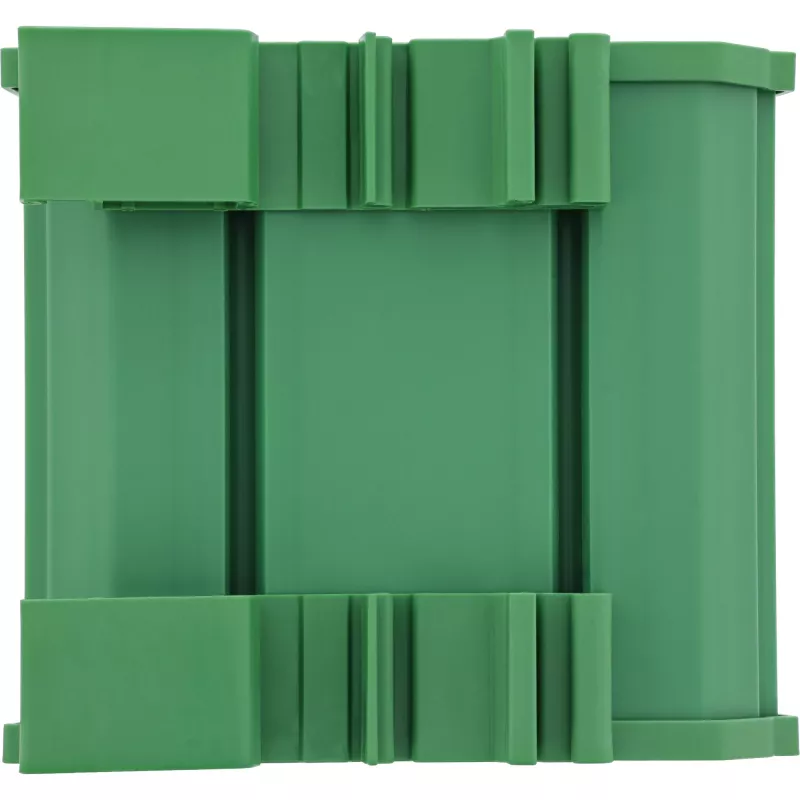

Insulation layer:EVA insulation on underside
Mounting:Housing for direct mounting on DIN rail
Dimensions:approx. 88 × 87 × 51 mm (W × H × D)

InLine 92502G. Connector(s): Terminal block / D-Sub 25, Product colour: Green, Connector gender: Female/Female. Compliance certificates: RoHS, TÜV mark. Dimensions (WxDxH): 88 x 87 x 51 mm, Weight: 165 g, Width: 88 mm. Quantity per pack: 1 pc(s), Package width: 95 mm, Package depth: 125 mm. Country of origin: Taiwan

Aspectos destacados
  • Terminal block / D-Sub 25 Female/Female
  • Green
  • 1 pc(s)

Especificaciones

Especificaciones
Altura
51 mm
Altura del embalaje
55 mm
Ancho
88 mm
Ancho del embalaje
95 mm
Calibre AWG del cable
26/18
Cantidad por paquete
1 pc(s)
Certificados de conformidad
RoHS, marca TÜV
Color del producto
Green
Conectores
Bloque de terminales / D-Sub 25
Corriente
0.7 A
Dimensiones (An x Al x P)
88 x 87 x 51 mm
Género del conector
Hembra/hembra
País de origen
Taiwán
Peso
165 g
Peso del embalaje
203 g
Profundidad
87 mm
Profundidad del embalaje
125 mm
Resistencia de contacto
10 mΩ
Rigidez dieléctrica
300 V
Temperatura de funcionamiento (T-T)
-20 - 105 °C
Tensión
100 V
Tipo de embalaje
Bolsa de plástico
Volumen del embalaje
100 cm³
