InLine 92502H Conector de cables regleta de bornes / D-Sub 25 verde

InLine 92502H Conector de cables regleta de bornes / D-Sub 25 verde
InLine 92502H Conector de cables regleta de bornes / D-Sub 25 verde
InLine 92502H Conector de cables regleta de bornes / D-Sub 25 verde
InLine 92502H Conector de cables regleta de bornes / D-Sub 25 verde
InLine 92502H Conector de cables regleta de bornes / D-Sub 25 verde
InLine 92502H Conector de cables regleta de bornes / D-Sub 25 verde
InLine 92502H Conector de cables regleta de bornes / D-Sub 25 verde
InLine 92502H Conector de cables regleta de bornes / D-Sub 25 verde
InLine 92502H Conector de cables regleta de bornes / D-Sub 25 verde
InLine 92502H Conector de cables regleta de bornes / D-Sub 25 verde
InLine 92502H Conector de cables regleta de bornes / D-Sub 25 verde
InLine 92502H Conector de cables regleta de bornes / D-Sub 25 verde
InLine 92502H Conector de cables regleta de bornes / D-Sub 25 verde
InLine 92502H Conector de cables regleta de bornes / D-Sub 25 verde
29,01 €
PDF
PDF
Stock 33 Código 1732247 Modelo 92502H Garantía 3 años

Envíos y devoluciones

Entrega estimada jueves, 3 de diciembre
Te mantendremos informado a través de nuestro sistema de seguimiento detallado
Opciones de pago
Tarjeta bancariaVisaMastercardPayPalApple PayGoogle PayTransferencia bancaria

Haz una pregunta: el asistente IA responde al instante.

Descripción

Time savings during installation:Quick wiring via screw terminals for 18–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Stable connection thanks to screw lock:The 2-row D-Sub-25 female connector is equipped with a mounting thread (UNC #4-40) and enables secure mechanical fastening with matching plugs.
Versatile use in industry: Ideal for structured wiring in control cabinets, control and automation systems, or signal distribution.
DIN rail mounting for standard-compliant installation: The integrated DIN rail housing enables direct mounting on mounting rails – quickly, securely, and in a space-saving manner.
High signal quality:An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 0.7 A per pin ensure reliable signal transmission – even under continuous load.

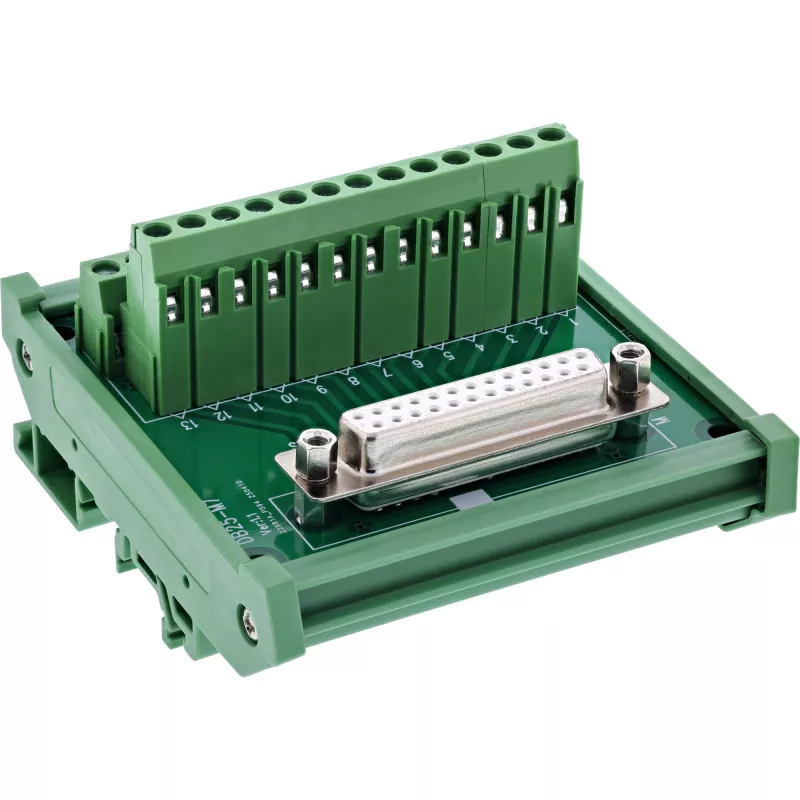

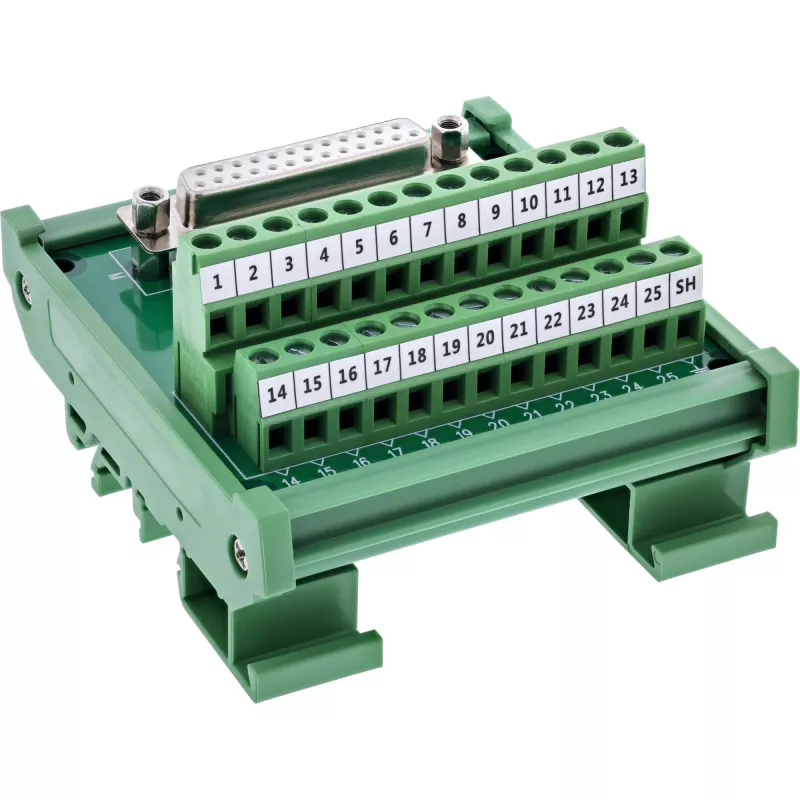

The InLine® D-Sub 25 terminal block with female connector in a 2-row design was specially developed for structured installations on DIN rails. The screw terminals with pressure plate enable tool-assisted connection of single wires in the 18–26 AWG range – quickly and securely with a flat-head screwdriver ≤ 2.5 mm.
The socket has an integrated screw lock (UNC #4-40) for secure connection with matching D-Sub plugs. The pre-assembled DIN rail housing facilitates installation in control cabinets and on mounting rails. The compact design and robust construction make the connection block the ideal choice for industrial applications with high signal density.

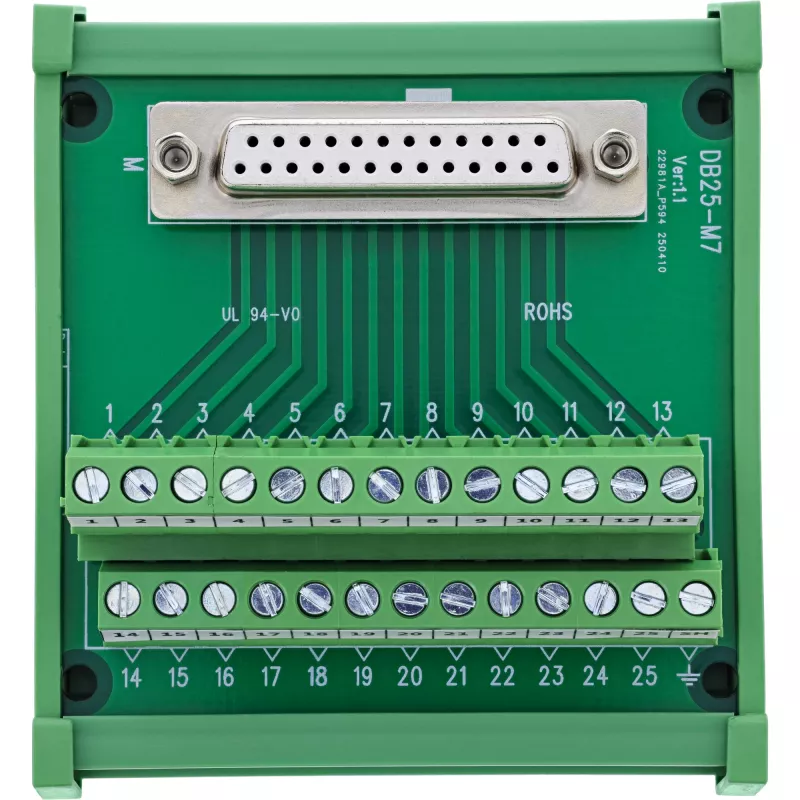

D-Sub 25 female connector:2-row, with mounting thread for plug locking (UNC #4-40)

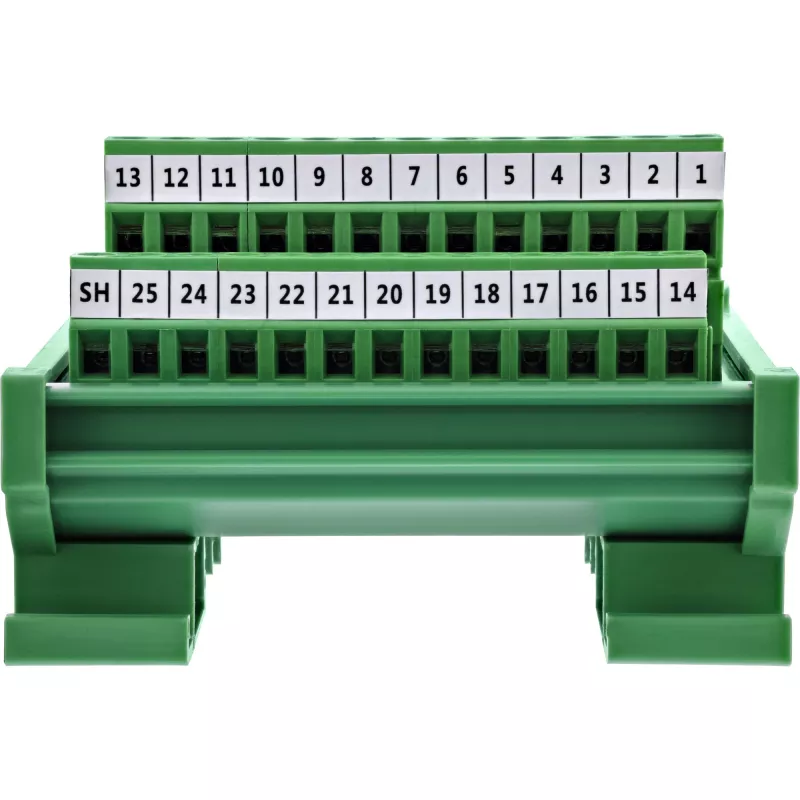

Connection technology:Screw terminal with pressure plate
Connection range:18–26 AWG
Actuation:With flat-blade screwdriver ≤ 2.5 mm
Rated current:0.7 A per pin
Max. operating voltage:100 V between two signals
Insulation resistance:≥ 10 MΩ @ 300 V DC
Operating temperature:–20 °C to +105 °C
Insulation layer:EVA insulation on underside

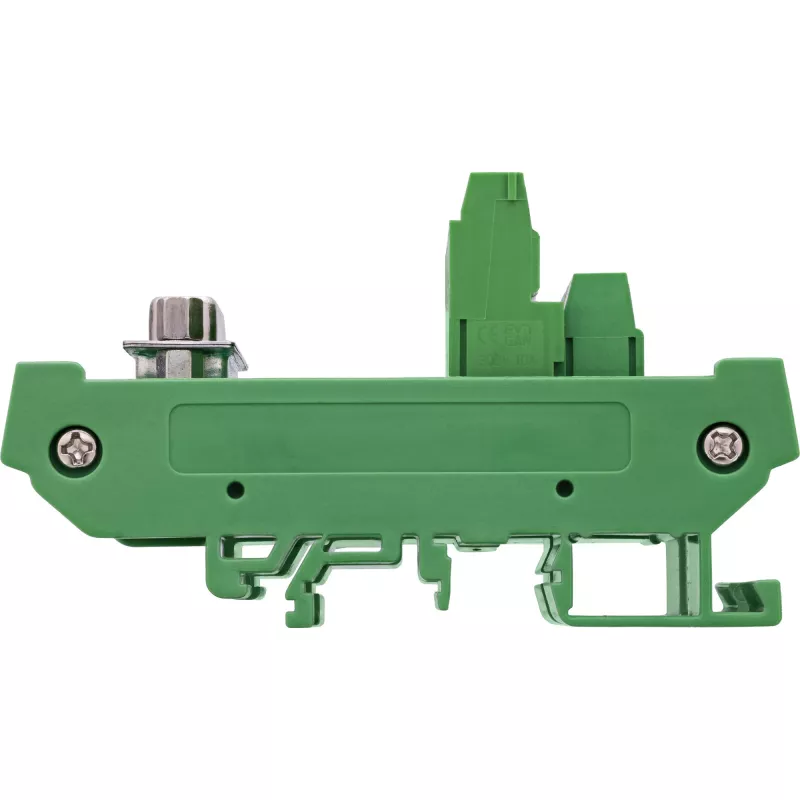

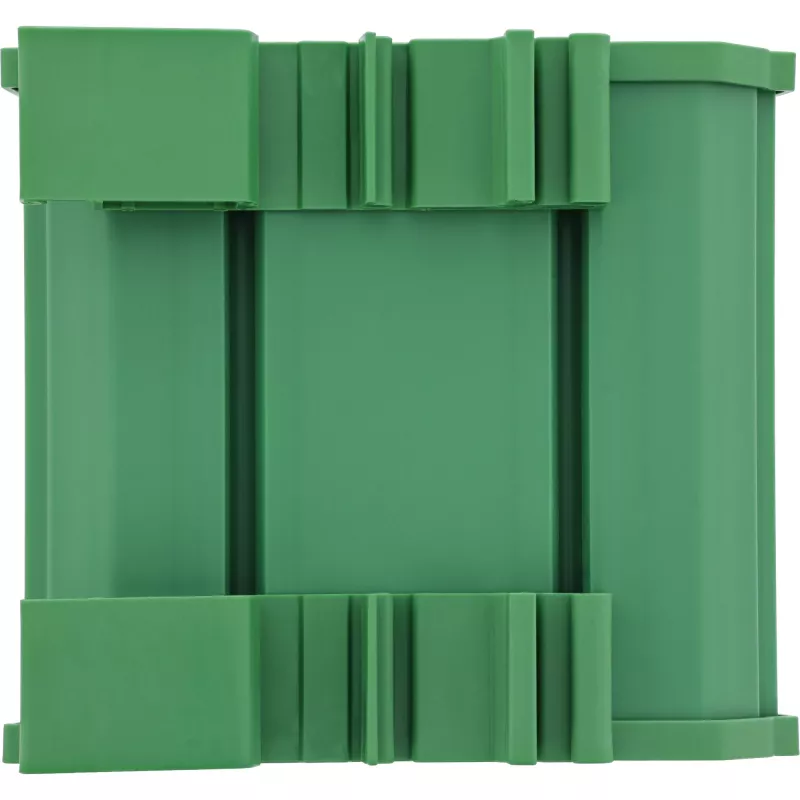

Mounting:Housing for direct mounting on DIN rail
Dimensions:approx. 87 × 79 × 51 mm (H × W × D)

InLine 92502H. Connector(s): Terminal block / D-Sub 25, Product colour: Green, Connector gender: Male/Female. Compliance certificates: RoHS, TÜV mark. Dimensions (WxDxH): 79 x 87 x 51 mm, Weight: 133 g, Width: 79 mm. Quantity per pack: 1 pc(s), Package width: 95 mm, Package depth: 125 mm. Country of origin: Taiwan

Aspectos destacados
  • Terminal block / D-Sub 25 Male/Female
  • Green
  • 1 pc(s)

Especificaciones

Especificaciones
Altura
51 mm
Altura del embalaje
55 mm
Ancho
79 mm
Ancho del embalaje
95 mm
Calibre AWG del cable
26/18
Cantidad por paquete
1 pc(s)
Certificados de conformidad
RoHS, marca TÜV
Color del producto
Green
Conectores
Bloque de terminales / D-Sub 25
Corriente
0.7 A
Dimensiones (An x Al x P)
79 x 87 x 51 mm
Género del conector
Macho/Hembra
País de origen
Taiwán
Peso
133 g
Peso del embalaje
180 g
Profundidad
87 mm
Profundidad del embalaje
125 mm
Resistencia de contacto
10 mΩ
Rigidez dieléctrica
300 V
Temperatura de funcionamiento (T-T)
-20 - 105 °C
Tensión
100 V
Tipo de embalaje
Bolsa de plástico
Volumen del embalaje
100 cm³
