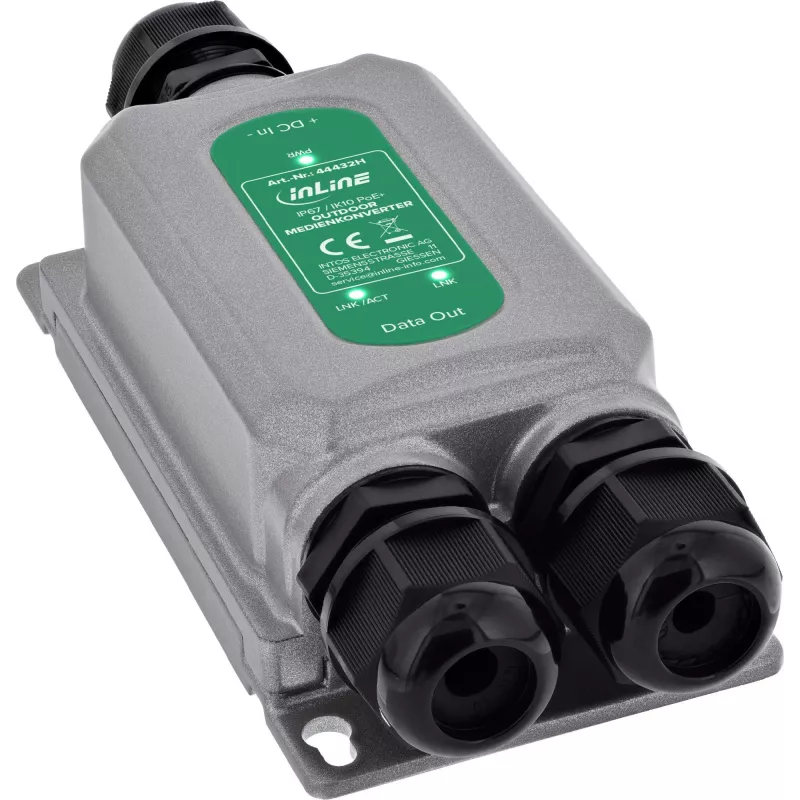

InLine® Convertidor de medios PoE+ Outdoor IP67 IK10 1 Gb/s RJ45 SFP

With an IP67-rated, IK10-impact-resistant aluminum housing, this PoE+ media converter delivers Gigabit Ethernet and up to 30W of power over a single fiber link, even in the harshest outdoor environments.

Overview

The InLine® PoE+ Media Converter bridges copper and fiber networks, converting a 10/100/1000Base-T RJ45 connection to a 1000Base-X SFP slot. It supports IEEE 802.3at PoE+ to power devices like IP cameras or wireless access points directly from the converter, eliminating the need for separate power injectors. Designed for outdoor and industrial use, it withstands dust, water, and physical impact, making it ideal for smart cities, transportation, and remote installations.

What stands out

• Rugged IP67 and IK10 enclosure for extreme conditions
• PoE+ output up to 30W for powered devices
• Flexible SFP slot for multimode or single-mode fiber
• Wide operating temperature range from -40°C to 75°C
• Jumbo frame support up to 9K bytes for efficient data transfer

Technical details

• 1x 10/100/1000Base-T RJ45 port
• 1x 1000Base-X SFP slot
• IEEE 802.3at PoE+ (max 30W output)
• Power input: DC 48-56V via terminal block
• Power consumption: < 3W (without PoE load)
• LED indicators: Power, Link/Act, PoE Status
• Housing: Aluminum alloy
• Mounting: Wall mountable
• Networking standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3at
• Operating humidity: 5% to 95% RH (non-condensing)
• Storage temperature: -40°C to 85°C

Our verdict

Built to survive the outdoors while delivering reliable Gigabit connectivity and PoE+, this media converter is a top choice for demanding network extensions.
