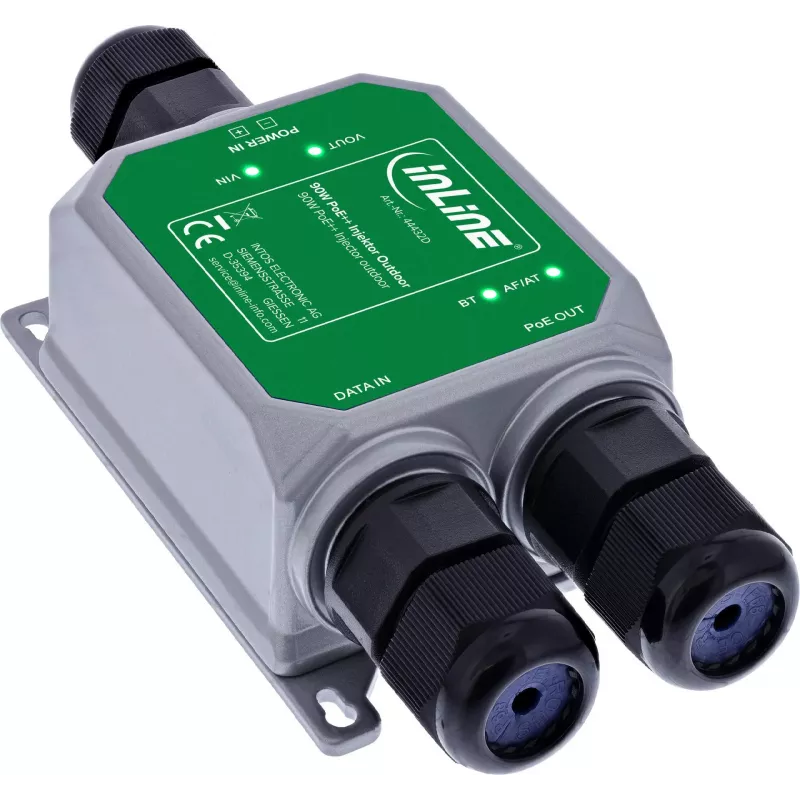

InLine® Inyector PoE++ para exterior, 10Gb/s, 90W, IP67

For network deployments that demand both high-speed data and reliable power delivery in harsh outdoor environments, the InLine® PoE++ Outdoor Injector stands apart. This unit combines IEEE 802.3bt Type 4 power sourcing with 10 Gigabit Ethernet throughput, all within an IP67-rated weatherproof housing. Unlike typical indoor injectors, it is built to operate from -40°C to 65°C and includes surge protection, making it suitable for pole or wall mounting in exposed locations.

Highlights

• Delivers up to 90W of PoE++ power over all four pairs (Mode D)
• Supports 10GBASE-T data rates for bandwidth-intensive devices
• IP67-rated aluminum alloy enclosure for dust-tight and waterproof operation
• Wide operating temperature range from -40°C to 65°C
• Integrated surge protection safeguards connected equipment
• Includes wall and pole mounting kit for flexible installation

In daily use

This injector is ideal for powering outdoor 10G devices such as high-resolution IP cameras, Wi-Fi 6/6E access points, and small cells. Simply connect your non-PoE 10G switch to the Data In port, then run a Cat.6a or higher cable from the Data + Power Out port to your powered device. The LED indicators provide at-a-glance status for power, PoE negotiation, and link activity. The rugged metal housing and IP67 sealing ensure continuous operation even in rain, dust, or extreme temperatures.

Full specifications

• PoE Standard: IEEE 802.3bt Type 4 (PoE++)
• Max Power Output: 90W
• Data Rate: 10 Gigabit Ethernet (10GBASE-T)
• Ethernet Ports: 2x RJ45 (1x Data In, 1x Data + Power Out)
• Ingress Protection: IP67
• Power Input: 100-240V AC, 50/60Hz
• PoE Output Voltage: 54V DC
• Operating Temperature: -40°C to 65°C
• Mounting: Wall mount, pole mount (kit included)
• LED Indicators: Power, PoE Status, Link/Activity
• Ethernet Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3bz, 802.3an
• Power Pin Assignment: 4-pair (Mode D)
• Housing Material: Aluminum alloy
• Surge Protection: Yes
• Recommended Cable: Cat.6a or higher for 10Gb/s
• Jumbo Frame Support: Up to 9KB

Final note

With its combination of 10G performance, high-power PoE++, and outdoor durability, the InLine® PoE++ Outdoor Injector is a dependable solution for extending your network beyond the building perimeter.
