InLine panel de parcheo 19 pulgadas Cat.6A 24 puertos 1U gris claro RAL7035

Supporting frequencies up to 500 MHz and 10 Gigabit Ethernet, this 24-port patch panel delivers Cat.6A performance in a space-saving 1U form factor. The fully shielded metal housing and gold-plated contacts ensure reliable, high-speed connections for demanding network environments.

Overview

The InLine 19" Cat.6A Patch Panel offers 24 RJ45 ports in a compact 1U rack-mount chassis, ideal for structured cabling systems. Its LSA insulation displacement connectors enable fast, solder-free terminations, while consecutively numbered ports simplify identification and maintenance. The light grey finish (RAL7035) integrates seamlessly into standard 19" racks.

What stands out

• Cat.6A performance up to 500 MHz, supporting 10GBASE-T
• Fully shielded construction reduces electromagnetic interference
• LSA terminals for secure, tool-free cable termination

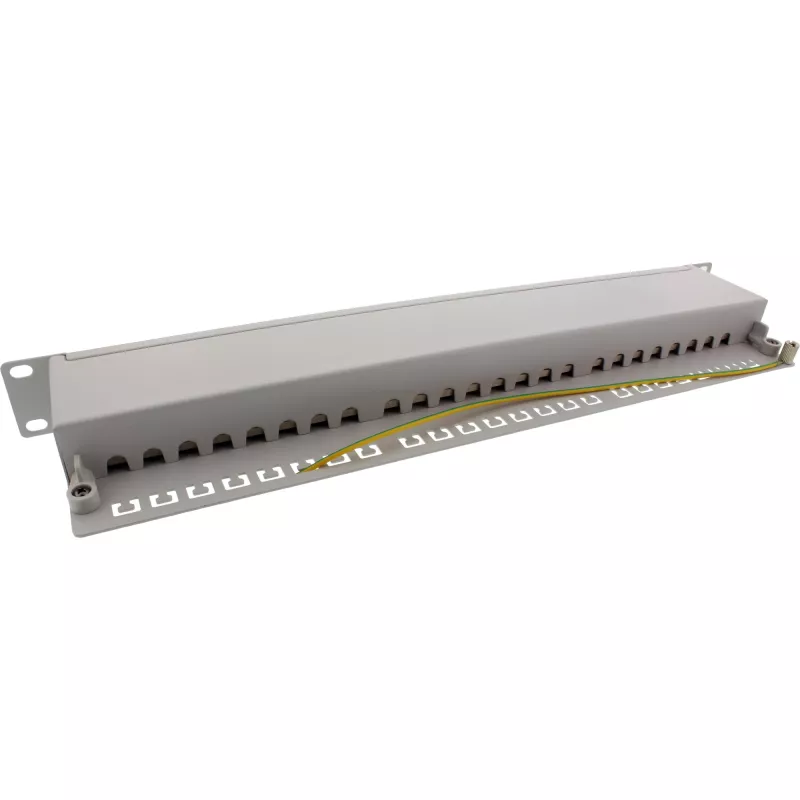

• Rear cable management bar with strain relief
• Integrated labeling fields and grounding bolt

Technical details

• Rack mount: 19", 1U height
• Ports: 24 x RJ45 (8P8C), shielded
• Termination: LSA (IDC), color-coded for T568A/T568B
• Wiring: AWG 22-26 solid or stranded
• Contact plating: Gold (50µ")
• Housing: Metal (steel), light grey RAL7035
• PoE support: IEEE 802.3af/at/bt (PoE, PoE+, 4PPoE)
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Dimensions (W x D x H): 482.6 x 110 x 44 mm
• Weight: 1.2 kg

Our verdict

A robust and efficient solution for high-density Cat.6A installations, offering excellent shielding, easy termination, and clear port labeling in a compact 1U design.
