InLine panel de parcheo Cat.6A 0,5U 8 puertos, mesa/pared/raíl, negro, protección antipolvo

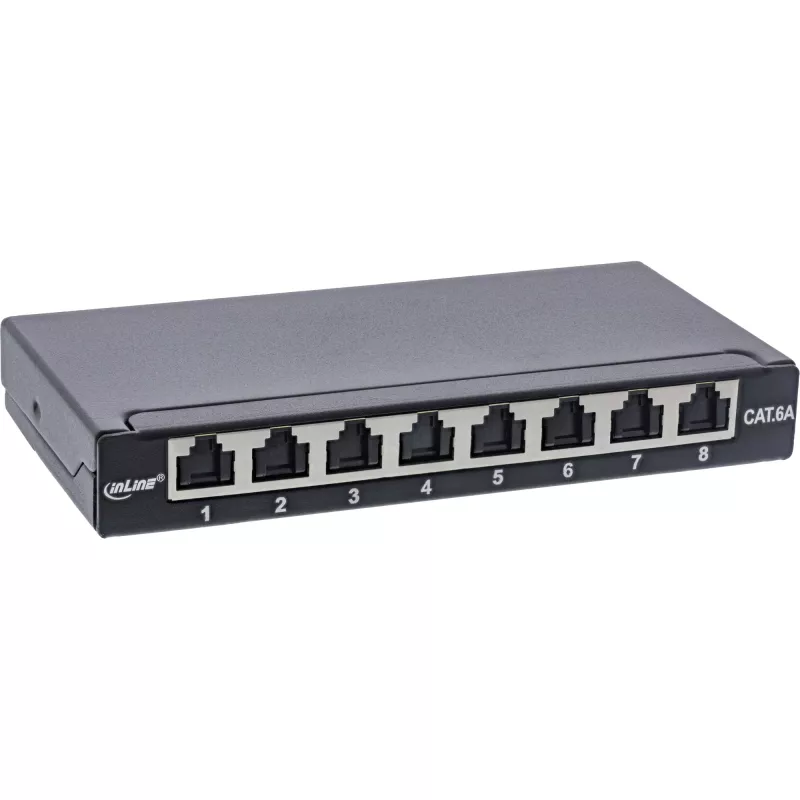

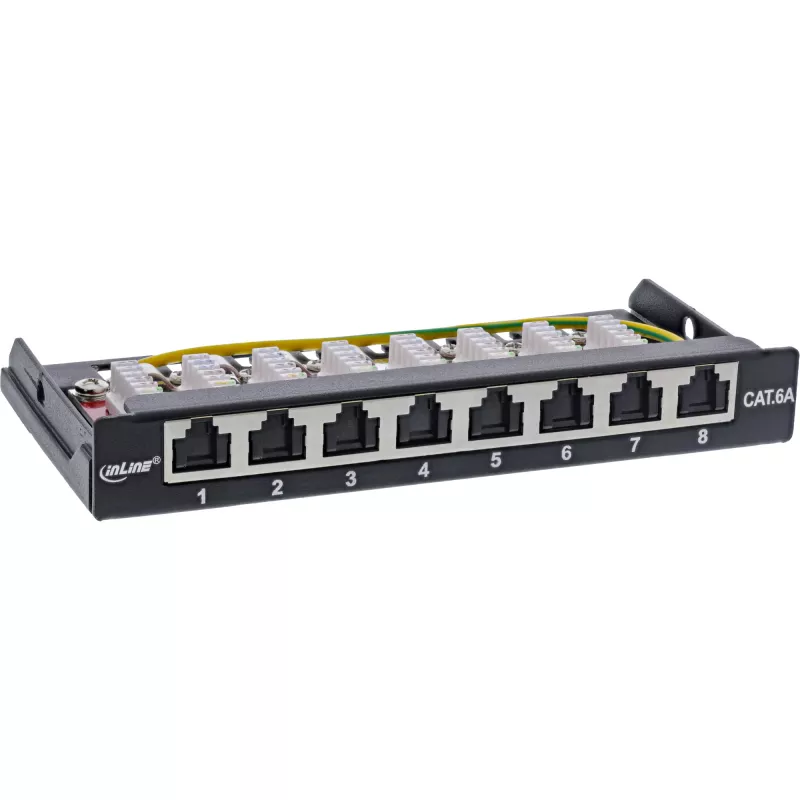

The InLine Patch panel Cat.6A 0.5U 8-port black dust protection is a fully shielded desktop patch panel with eight RJ45 ports, designed for Cat.6A installations. It supports connection of up to eight installation cables via LSA insulation displacement connectors and features consecutively numbered RJ45 sockets. Each socket has an integrated dust protection cover that folds inward when a network cable is inserted, helping to protect contacts from coarse dust. The panel is intended for wall or table mounting and has a height of 23 mm.

Advantages

The patch panel provides full shielding for improved protection against electromagnetic interference and is compatible with Cat.6A cabling standards. Numbered RJ45 ports simplify cable management and identification. The integrated dust protection preserves contact quality by preventing accumulation of coarse dust when ports are not in use. LSA insulation displacement connectors allow secure and reliable termination of up to eight installation cables without separate screw connections.

Suitable for

• Small office or desktop network installations
• Patch points for Cat.6A structured cabling
• Environments requiring dust-protected RJ45 ports
• Wall- or table-mounted network setups with limited rack space

Key specifications

• Standard: Cat.6A
• Ports: 8 × RJ45

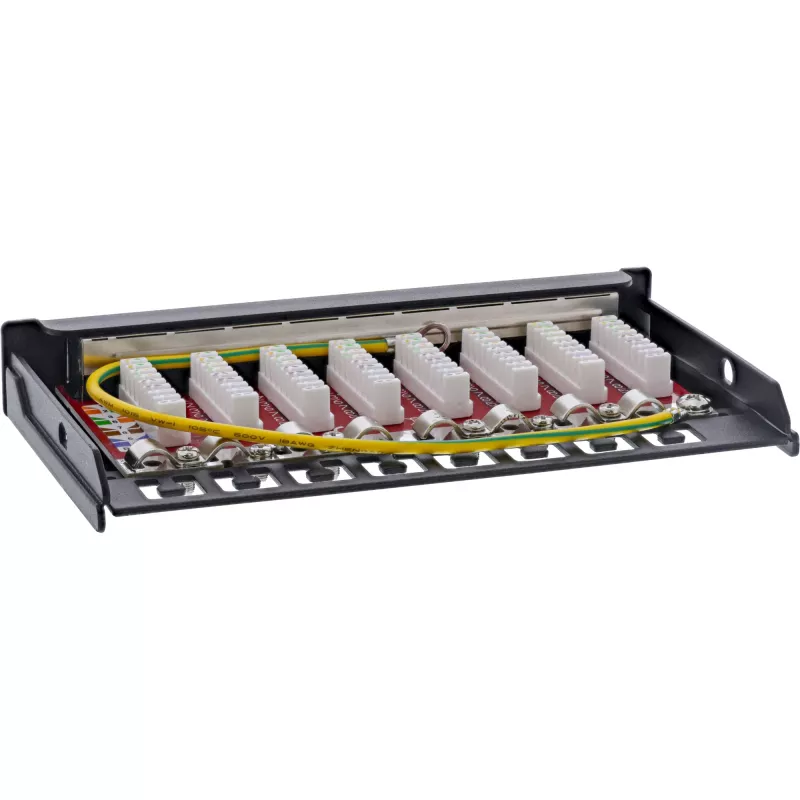

• Termination: LSA insulation displacement connectors
• Shielding: Fully shielded
• Height: 0.5U (23 mm)
• Color: Black

How to use

Mount the patch panel on a suitable wall or table bracket according to the installation environment. Terminate each installation cable with the LSA insulation displacement connectors following standard wiring schemes for Cat.6A. Label cables as needed using the consecutively numbered RJ45 ports for easy identification. Insert RJ45 network plugs into the front sockets; the integrated dust protection will fold inward automatically during insertion. Ensure shielding continuity by bonding the panel to the system ground where required.

Recommendations

For reliable Cat.6A performance, use factory-tested Cat.6A cables and maintain proper grounding for the shielded panel. Keep unused ports covered with the integrated dust protection and avoid exposure to fine dust and moisture to preserve contact integrity.
