InLine patch panel Cat.6A 0,5HE 6 puertos, sobremesa/pared/raíl, gris con protección antipolvo

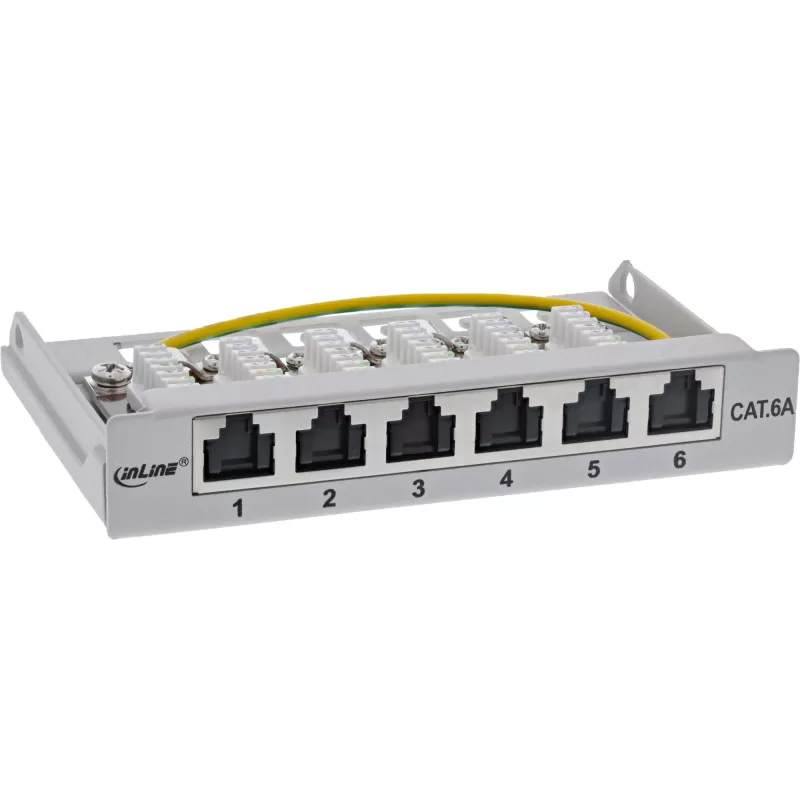

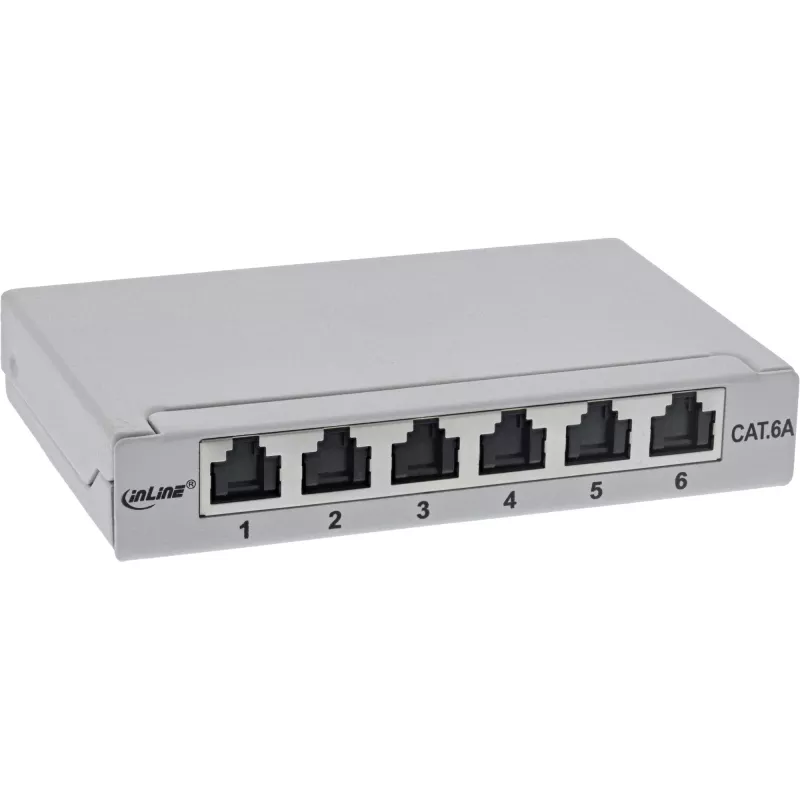

The InLine Patch panel Cat.6A 0.5U 6-port in grey is a compact, rack-mountable desktop patch panel designed for Cat6A cabling. It provides six RJ45 ports with consecutive numbering and full shielding to support high-performance network connections in limited rack space. Each socket includes an integrated dust protection flap that folds inward when an RJ45 plug is inserted, protecting contacts from coarse dust. Up to six installation cables can be connected using LSA insulation displacement connectors.

Advantages

Fully shielded design reduces electromagnetic interference and preserves signal integrity for Cat.6A networks. The compact 0.5U (23 mm) height saves rack space while offering six numbered RJ45 ports for organized cabling. Integrated dust protection on each socket protects contact points when ports are unused. LSA insulation displacement connectors enable quick, reliable installation of up to six incoming cables without separate punch-down tools.

Suitable for

• Small server rooms and network racks with limited space
• Workgroup and office patching for Cat6A cabling
• Desk-mounted or shelf-mounted network distribution points
• Environments requiring dust protection for unused ports

Key specifications

• Model: InLine Patch panel Cat.6A 0.5U 6-port (MPN: 76816A, EAN: 4043718311958)
• Ports: 6 × RJ45, consecutively numbered
• Category: Cat.6A, fully shielded

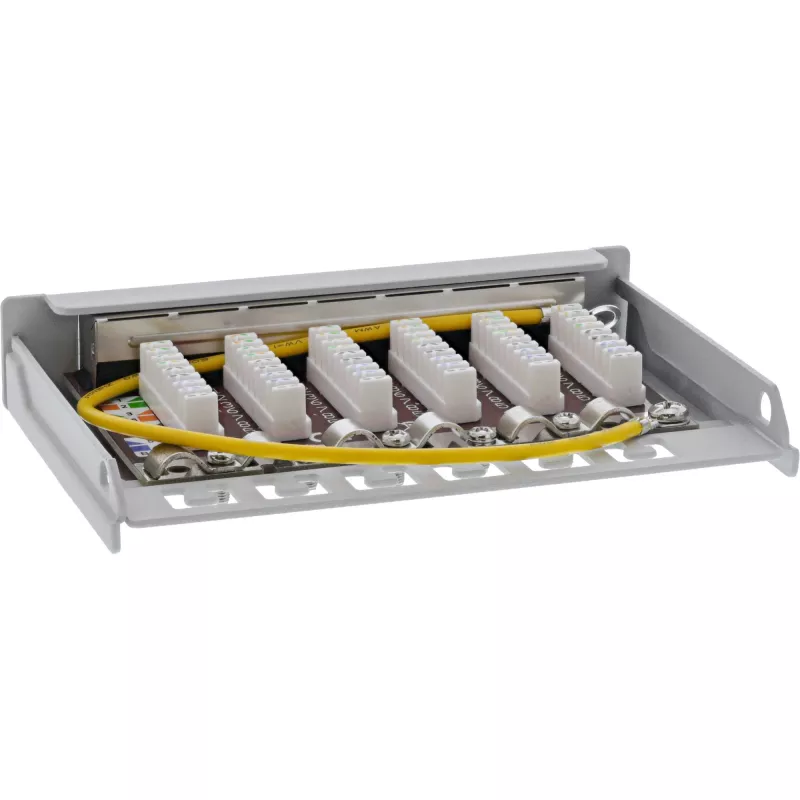

• Connection type: LSA insulation displacement connectors
• Height: 0.5U (approx. 23 mm)
• Colour: Grey

How to use

Mount the patch panel in a rack or place it on a shelf or desktop in the desired network location. Terminate incoming Cat6A installation cables into the LSA insulation displacement connectors following standard wiring scheme (TIA/EIA). Route and secure patch cables to the numbered RJ45 sockets. The dust protection flaps remain closed when ports are unused and fold inward automatically when an RJ45 plug is inserted.

Recommendations

For best performance, use Cat6A-certified cables and maintain proper cable management to avoid excessive bend radii. Ensure shielding continuity by grounding the rack or chassis when integrating this fully shielded patch panel into an existing screened cabling system.
