InLine patch panel Cat.6A 0,5HE 8 puertos, montaje sobremesa/pared gris claro RAL7035

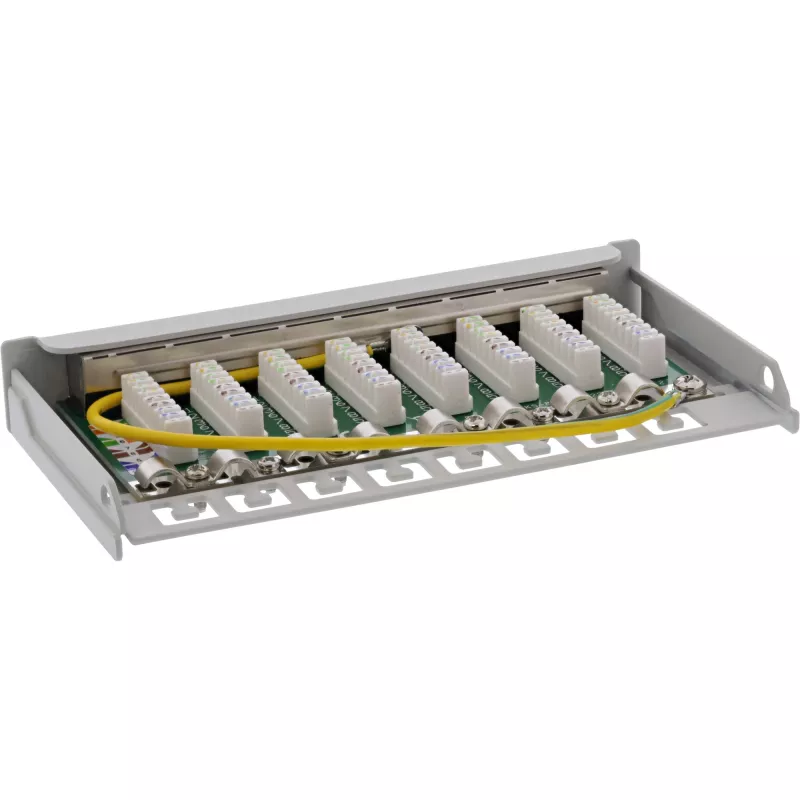

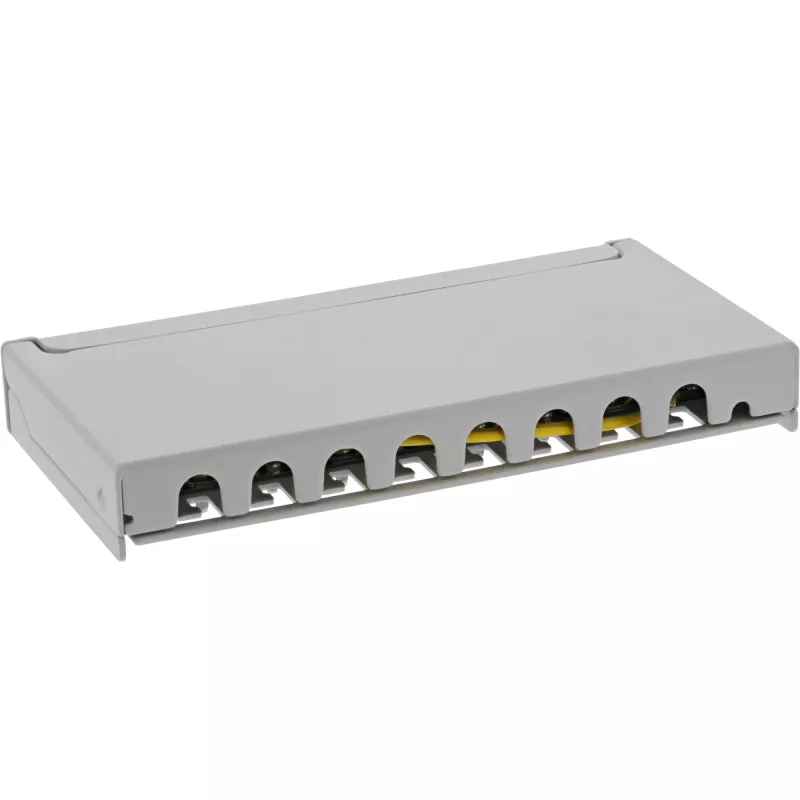

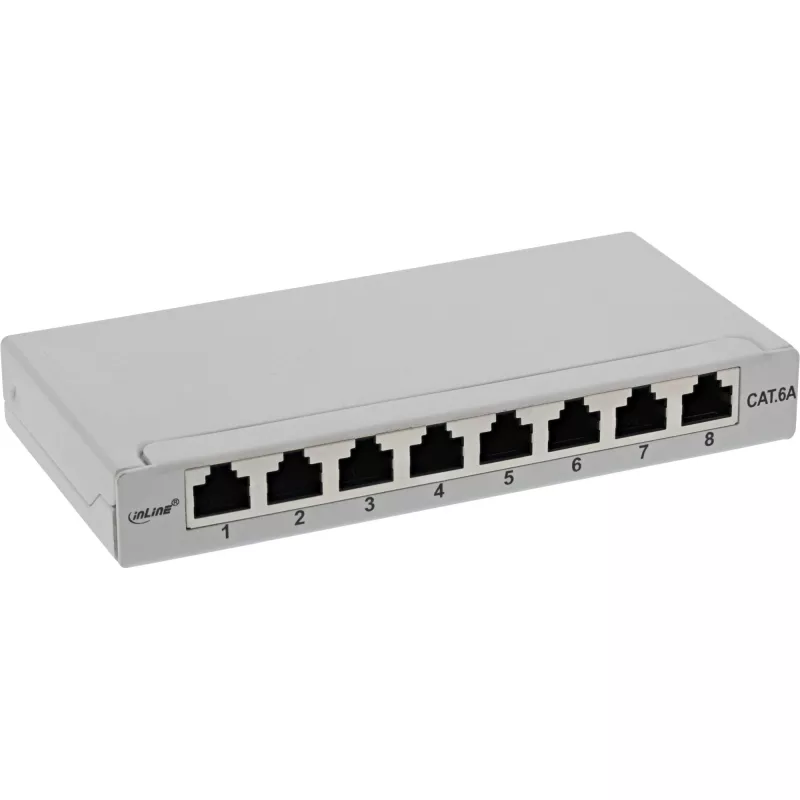

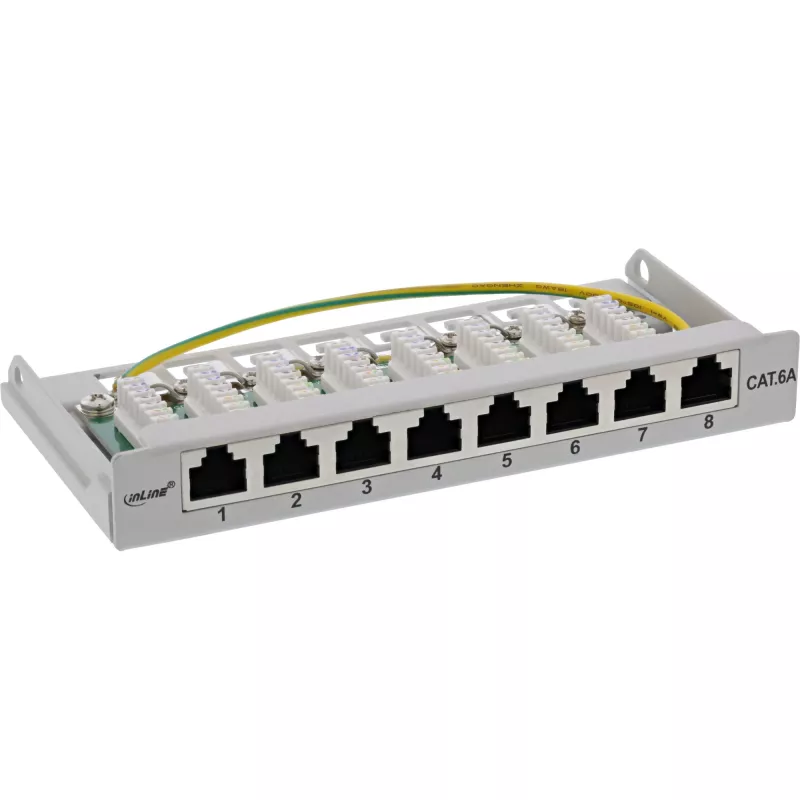

The InLine Patch panel Cat.6A 0.5U 8-port is a compact, fully shielded desktop and wall-mount patch panel designed for Cat6A installations. It supports up to 8 RJ45 connections with numbered ports and uses LSA terminals for secure cable termination. With a 0.5U height (23 mm) and light grey RAL7035 finish, it complies with IEC 60603-7-5 and is intended for space-saving network setups.

Advantages

Fully shielded design reduces electromagnetic interference and supports Cat6A performance. Numbered RJ45 connectors simplify port identification and management. LSA terminals allow reliable and standardized cable termination. Compact 0.5U height (23 mm) enables installation in limited spaces and on walls.

Suitable for

• Small server rooms and network cabinets with limited space
• Wall-mounted network installations in offices or equipment rooms
• Cat6A structured cabling where shielded connections are required
• Patch panels for up to 8 Ethernet connections (RJ45)

Key specifications

• Standard: IEC 60603-7-5
• Category: Cat.6A
• Ports: 8 RJ45 (numbered)
• Termination: LSA terminals
• Rack height: 0.5U (23 mm)
• Mounting: Wall / desktop
• Colour: Light grey (RAL7035)

How to use

Mount the patch panel on a suitable wall surface or place it on a desktop using appropriate fixtures. Terminate each Cat6A cable on the LSA terminals following the T568A or T568B wiring scheme required by your installation. Connect patch cords to the numbered RJ45 connectors to link devices or network equipment. Verify shielding continuity and test each connection for correct performance after installation.

Recommendations

For optimal performance, use shielded Cat6A cables and maintain correct grounding of the panel's shield. Test each port with a certified cable tester after termination and label ports according to your network layout for easier maintenance.
