InLine patch panel Cat.6A 0,5HE 8 puertos, sobremesa/pared/raíl, gris, protección antipolvo

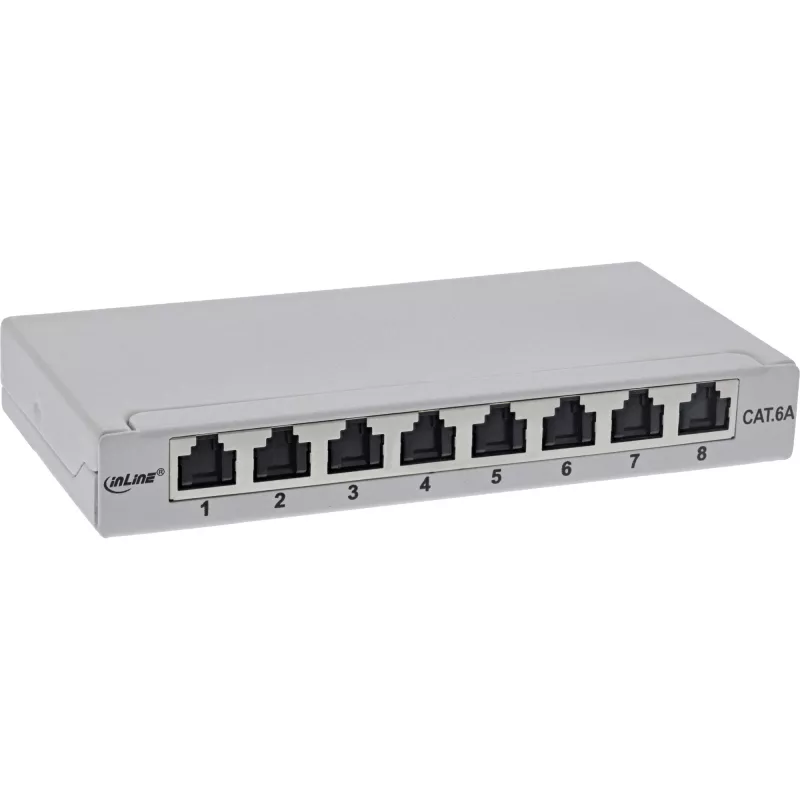

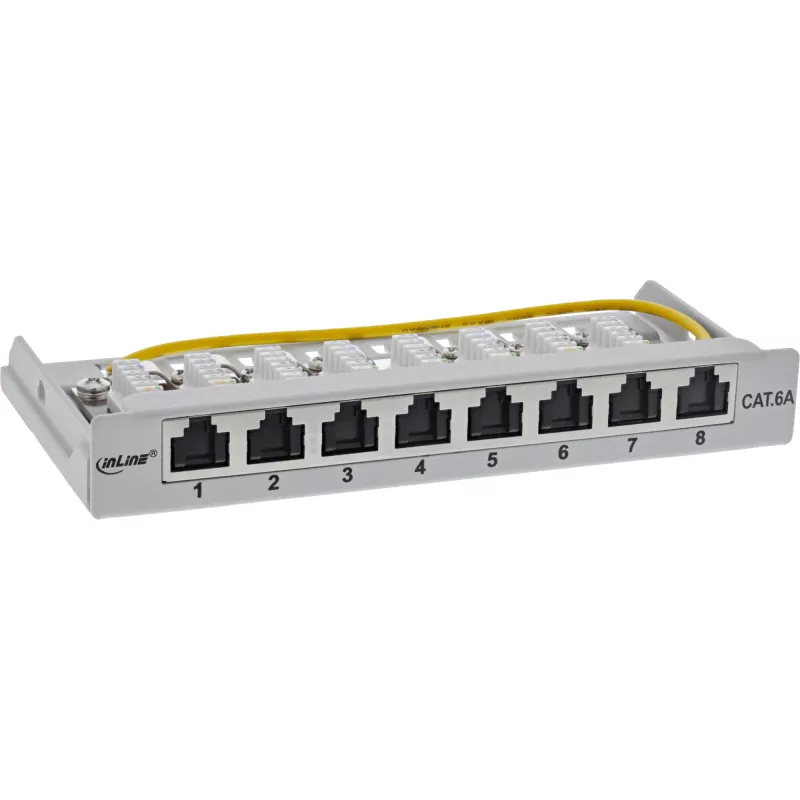

The InLine Patch panel Cat.6A 0.5U 8-port in grey is a compact, fully shielded desktop patch panel with eight RJ45 ports designed for Cat.6A installations. It supports termination of up to eight installation cables via LSA insulation displacement connectors and features numbered RJ45 sockets for easy identification. Each socket includes an integrated dust protection flap that folds inward when a cable is inserted to protect contacts from coarse dust.

Advantages

Fully shielded design for improved electromagnetic compatibility; LSA insulation displacement connectors allow reliable and tool-assisted termination of installation cables; compact 0.5U (23 mm) height suitable for wall, desk or rail mounting; sequentially numbered RJ45 ports simplify cabling and documentation; integrated dust protection flaps reduce contamination of contacts.

Suitable for

• Cat.6A copper network terminations
• Small server rooms, network closets or desktop patching
• Wall, table or rail-mounted installations

Key specifications

• Ports quantity: 8
• Category: Cat.6A
• Product colour: Grey
• Mounting height: 0.5U (23 mm)
• Connector type: 8 × RJ45 (numbered)

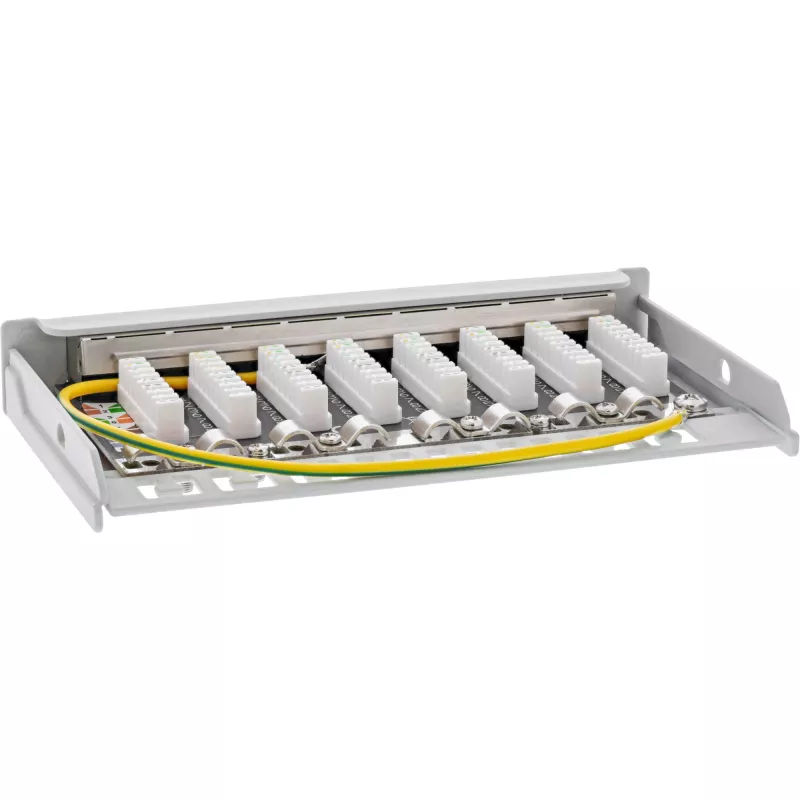

• Termination: LSA insulation displacement connectors
• Shielding: Fully shielded
• Dust protection: Integrated folding dust flaps

How to use

Mount the patch panel to the chosen surface or rail following standard mounting procedures. Terminate each installation cable into the LSA insulation displacement connectors according to the wiring colour code for Cat.6A. Route and secure cables to avoid strain on the connectors. Plug network cables into the numbered RJ45 sockets; the dust protection flap will fold inward automatically when a plug is inserted, protecting the contacts from coarse dust when not in use.

Recommendations

For best performance, use certified Cat.6A cabling and maintain proper cable management to minimize bend radius and electromagnetic interference. Regularly inspect dust flaps and clean contacts if needed, and document port numbering to simplify network maintenance.
