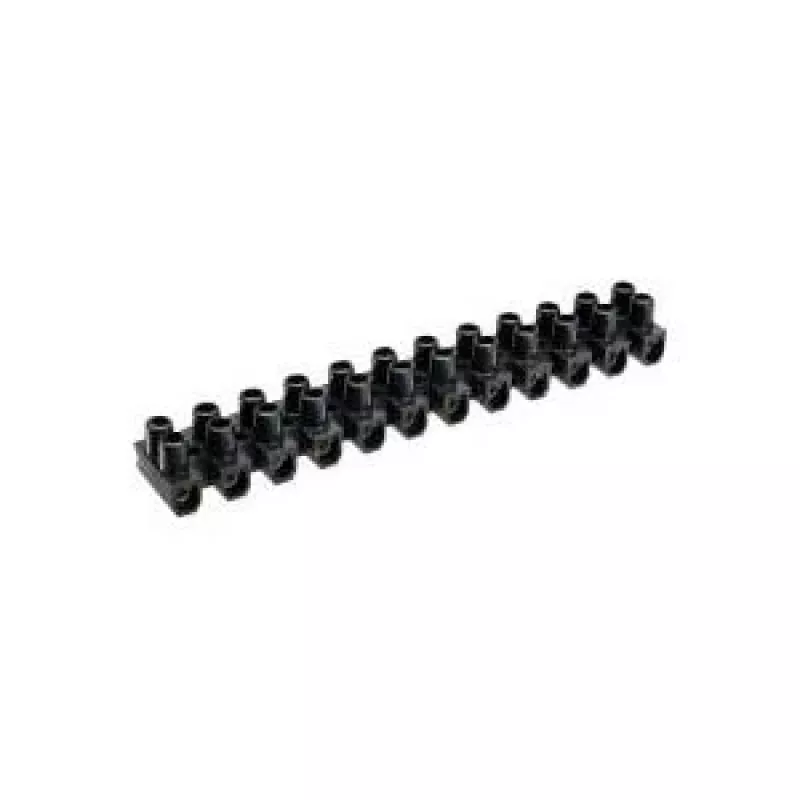

InLine Regleta de bornes 6 mm² 12 polos negro 10 uds.

Terminal block with 12 poles for connecting solid or stranded conductors up to 6 mm². The black housing is made of polyamide (PA6.6), and the brass conductor with zinc-plated steel screws ensures reliable clamping.

Advantages

Compact design for distribution boxes, rated for 450 V and 41 A. Screw terminals with M3.5 threads allow secure connections.

Suitable for

• Electrical installations in dry indoor areas
• Connecting lighting and socket circuits
• Distribution boxes and junction boxes

Key specifications

• Number of poles: 12
• Rated cross-section: 6 mm²
• Rated voltage: 450 V
• Rated current: 41 A
• Material: Polyamide (PA6.6), brass, zinc-plated steel
• Operating temperature: -25 °C to +85 °C
• Flammability rating: UL94 V-2
• Stripping length: 8 mm
• Screw size: M3.5
• Rated impulse voltage: 4 kV
• Pollution degree: 2
• Pack size: 10 pieces

Recommendations

Use a suitable screwdriver to tighten the screws to the recommended torque. Ensure the conductor insulation is stripped to 8 mm before insertion.
