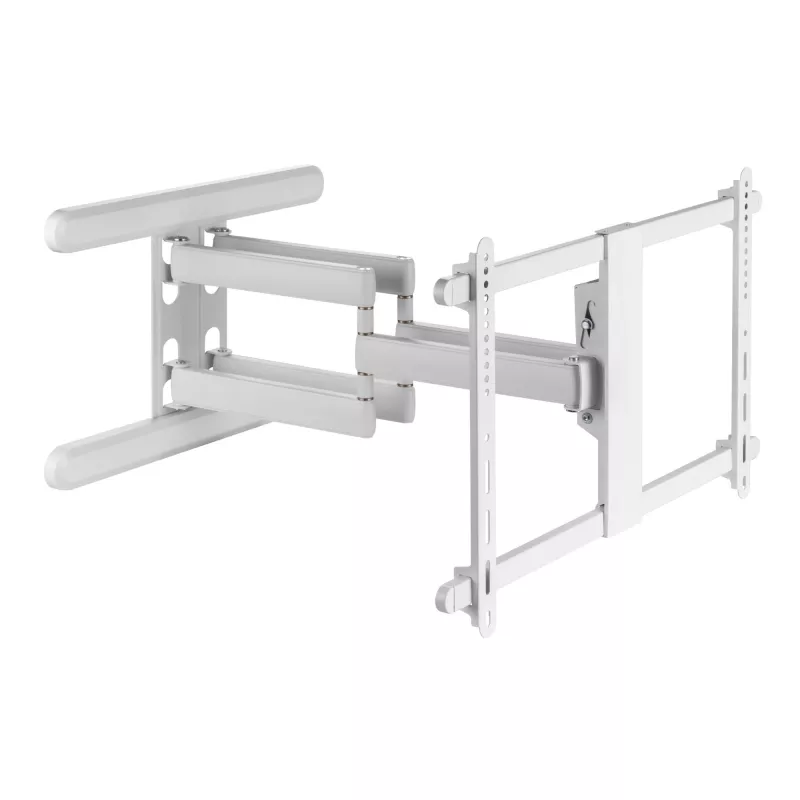

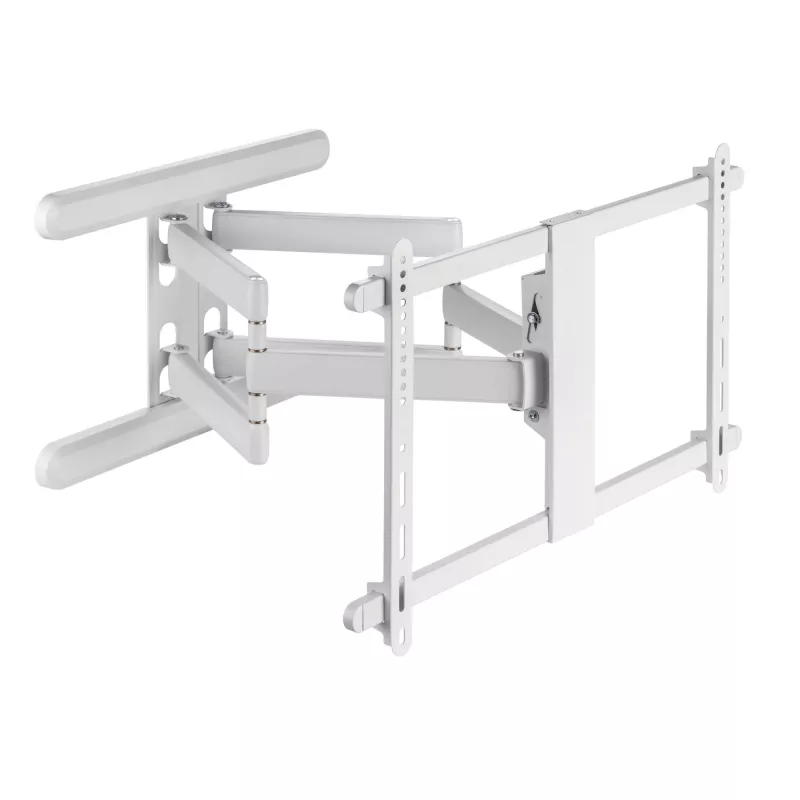

InLine soporte de pared de aluminio premium para televisores de pantalla plana 37-80 pulgadas blanco 70 kg

The InLine Premium Aluminium Wall Mount for Flat TV 37-80" White 70 kg is a versatile mounting solution designed for flat-panel televisions with screen sizes from 37 to 80 inches. Constructed from aluminium with a white finish, this mount supports a maximum load of 70 kg and accommodates VESA patterns from 200 x 200 mm up to 600 x 400 mm. It offers adjustable viewing angles with a tilt range of -10 to 5 degrees and a swivel range of -90 to 90 degrees, and it allows installation positions with a minimum distance to the wall of 6.9 cm and an extended reach of up to 66 cm.

Advantages

The aluminium construction ensures a combination of strength and reduced weight for easier handling during installation. Adjustable tilt and swivel provide flexible viewing positions and help reduce glare. Wide VESA compatibility covers a broad range of TV models, while the high load capacity supports larger screens up to 80 inches. The white finish integrates with bright interiors and keeps the installation visually unobtrusive.

Suitable for

• Mounting a single flat-panel TV in living rooms, bedrooms or offices
• Situations requiring extended reach from the wall for angled viewing
• Installations where a mid- to large-size TV (37–80") must be securely supported
• Environments needing a white, low-profile mount to match interior décor

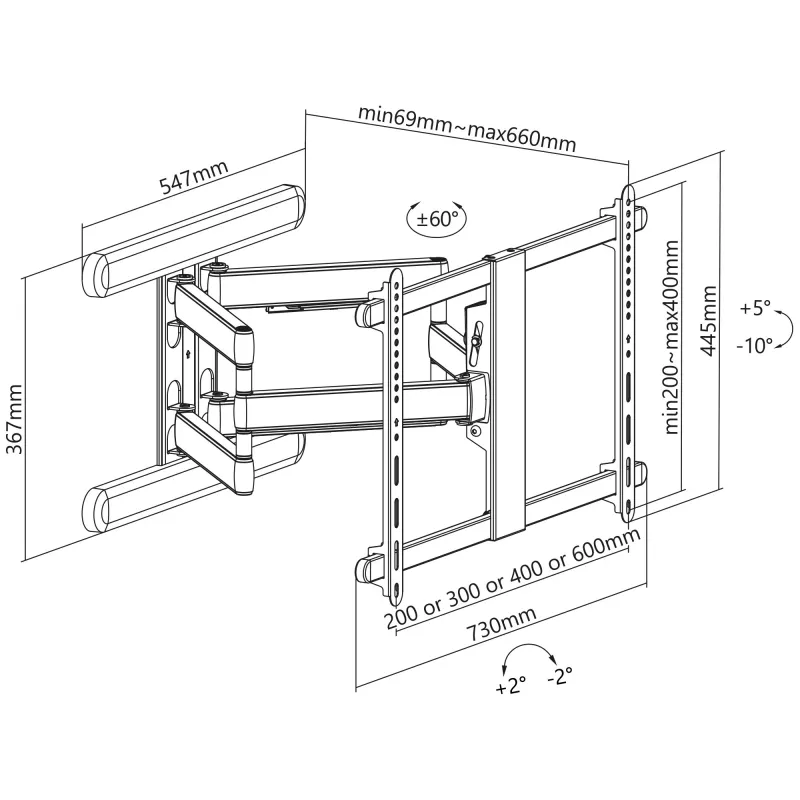

Key specifications

• Supported screen size: 37–80 inches
• Maximum weight capacity: 70 kg
• VESA compatibility: 200 x 200 up to 600 x 400 mm
• Tilt range: -10° to +5°
• Swivel range: -90° to +90°
• Minimum distance to wall: 6.9 cm
• Maximum extension from wall: 66 cm
• Material: aluminium
• Colour: white

How to use

Select a suitable wall location capable of bearing the combined weight of the TV and mount, and ensure the chosen position provides appropriate viewing height and clearance. Confirm the TV’s VESA pattern falls within the supported range and attach the mounting brackets to the TV according to the manufacturer’s instructions. Secure the wall plate to suitable wall fixings for the wall type, then connect the arm and brackets and adjust the tilt and swivel to the desired viewing angles. Use the full extension and retraction range to position the screen as needed, and verify all fastenings are tightened before use.

Recommendations

For safe and durable installation, use wall anchors or fixings rated for the combined weight of the TV and mount; when in doubt, consult a professional installer. Periodically check all screws and fittings for tightness, and avoid exceeding the specified maximum weight or VESA dimensions.
