InLine toma empotrable Cat.6A de superficie 2x conector hembra RJ45 RAL9010 blanca

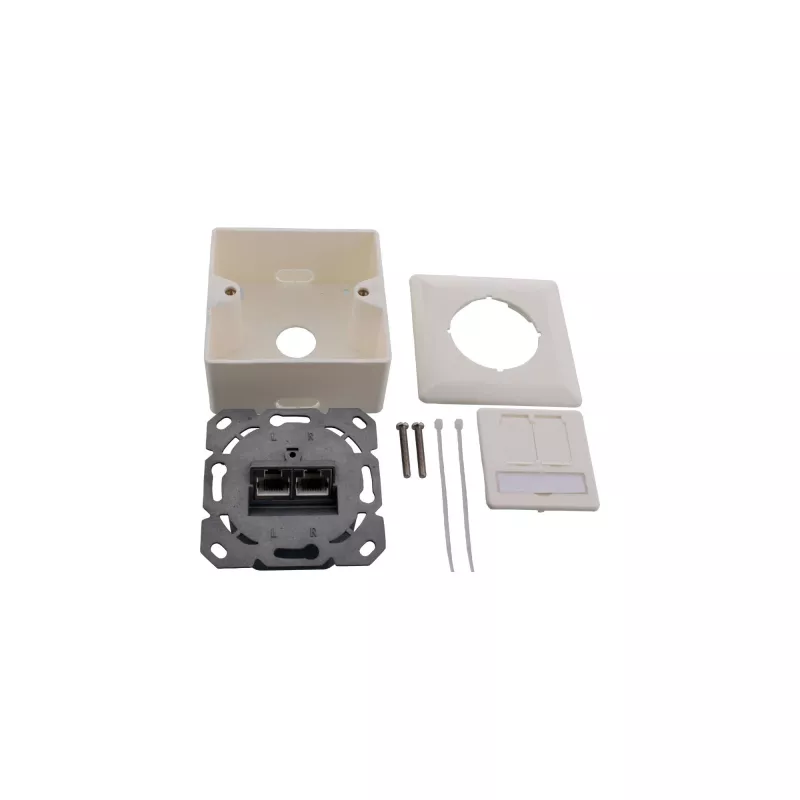

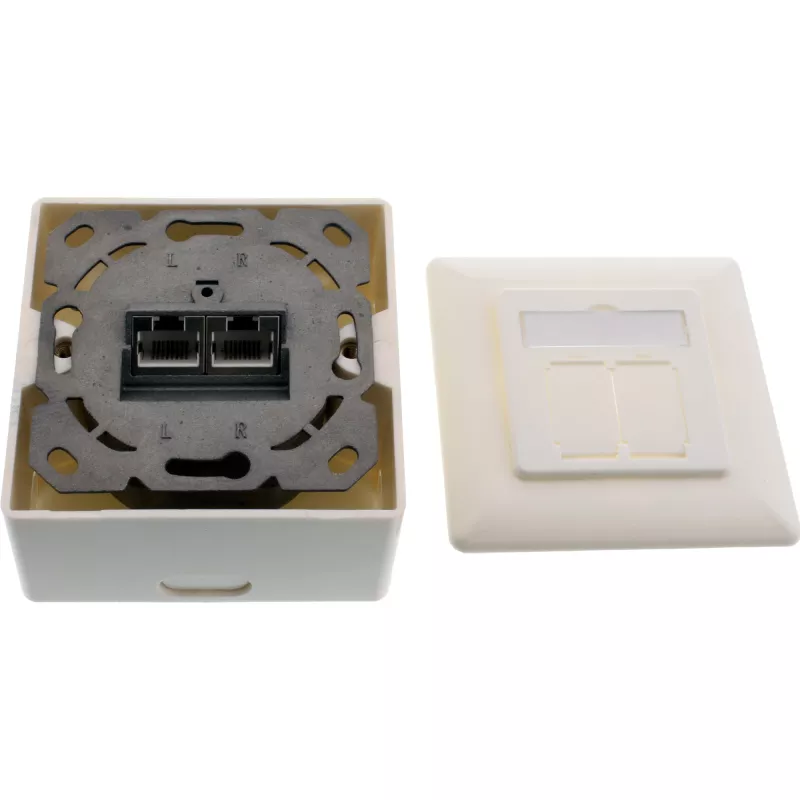

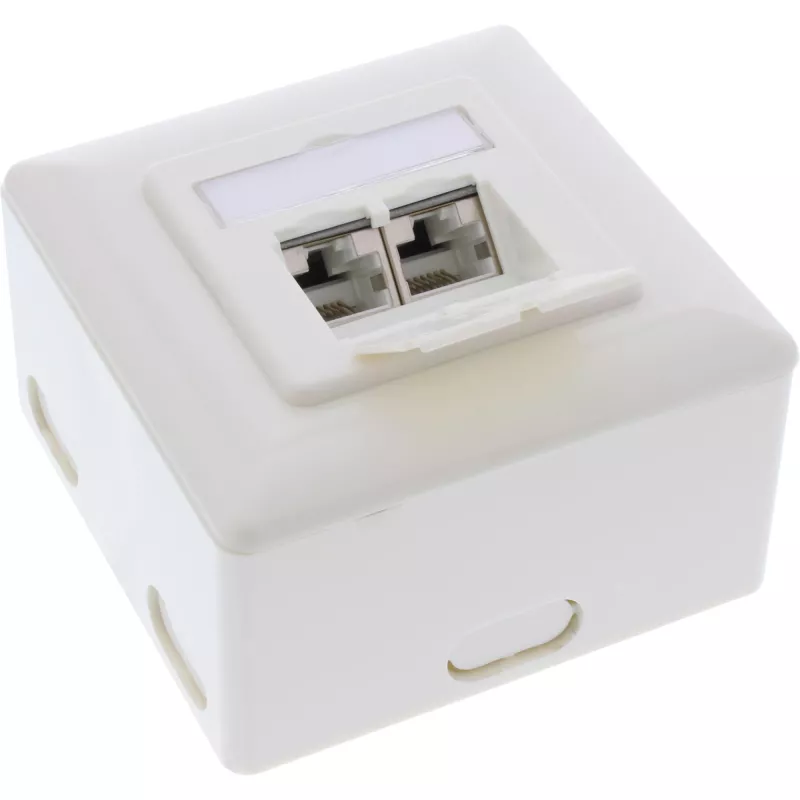

The InLine Wall Plate Cat.6A surface mount 2x RJ45 female (model 76842W) is a Cat.6A connection box designed for surface or flush installation. It includes two RJ45 female sockets and two LSA connection strips with eight insulation displacement connectors each. The junction box is fully shielded and finished in white (RAL9010).

Advantages

The wall plate supports Cat.6A performance for high-speed data transmission and provides two easily accessible RJ45 ports. Its fully shielded design reduces electromagnetic interference. The LSA connection strips with 8 IDC contacts per strip enable reliable and tool-compatible terminations for structured cabling installations.

Suitable for

Key specifications

How to use

Mount the box on the surface or recess it into the wall according to local installation practices. Terminate incoming cable pairs on the LSA connection strips using the appropriate punch-down tool, following Cat.6A wiring color codes. After termination, insert the patch cables into the RJ45 female sockets. Ensure the shield is connected to the building grounding system if required.

Recommendations

For optimal Cat.6A performance, use compliant Cat.6A cabling and maintain proper pair untwisting limits during termination. Connect the shielding to ground to preserve the benefits of the fully shielded enclosure.
