INST EAD 507 DC Toma de conexión multimedia universal individual 3-LDC-Pass Frecuencia 5-2200MHz Atenuación 29440051

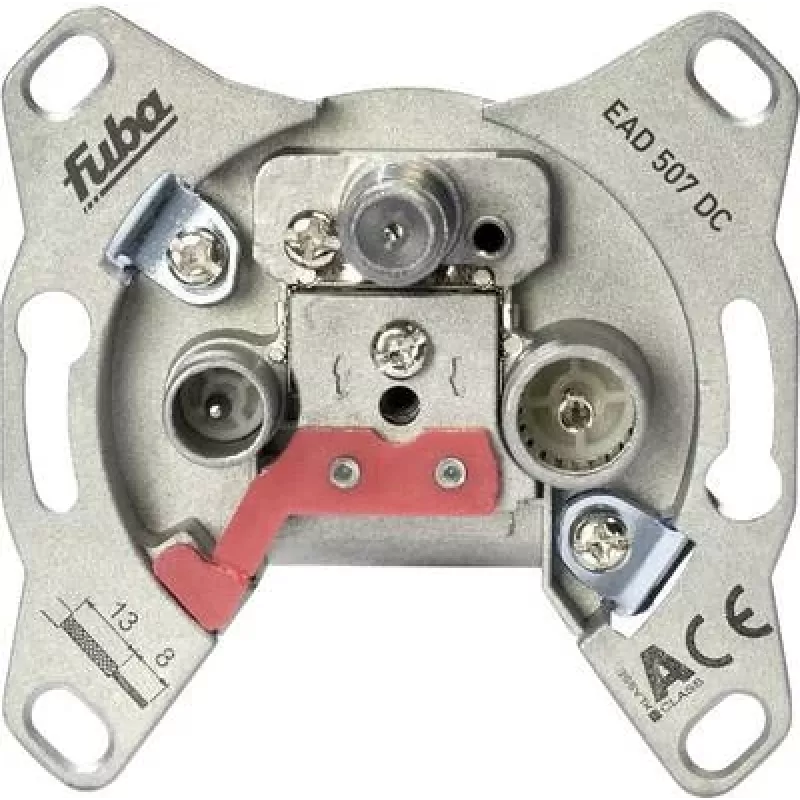

For installers setting up a residential or commercial TV distribution network, the INST EAD 507 DC is a universal single multimedia outlet that combines terrestrial TV, FM radio, and satellite signals into one flush-mount unit. It features three outputs: IEC male for TV, IEC female for radio, and F-type female for satellite, with DC pass-through on the SAT output to power an LNB or multiswitch.

Key specifications

• Frequency range: 5-862 MHz (TV/Radio), 950-2200 MHz (SAT)
• Connection loss: 1.5 dB across all bands
• DC pass: Yes, on SAT output (max 24V / 500mA)
• Impedance: 75 Ohm
• Shielding class: A (EN 50083-2)
• Return loss: > 10 dB
• Isolation: > 20 dB between outputs
• Mounting type: Flush-mount

Why choose it

Low insertion loss and high isolation ensure clean signal distribution to each connected device, while the DC pass capability simplifies powering remote equipment. The compact design fits standard flush-mount boxes, making it ideal for new installations or retrofits.

Ideal use cases

• Connecting a TV, radio tuner, and satellite receiver to a single wall outlet
• Distributing signals in homes, apartments, or offices with a central multiswitch
• Powering a satellite LNB directly through the outlet

Good to know

The outlet is designed for indoor use and complies with EN 50083-2 Class A shielding requirements. It is available in white, but other colours may be offered depending on the variant.
