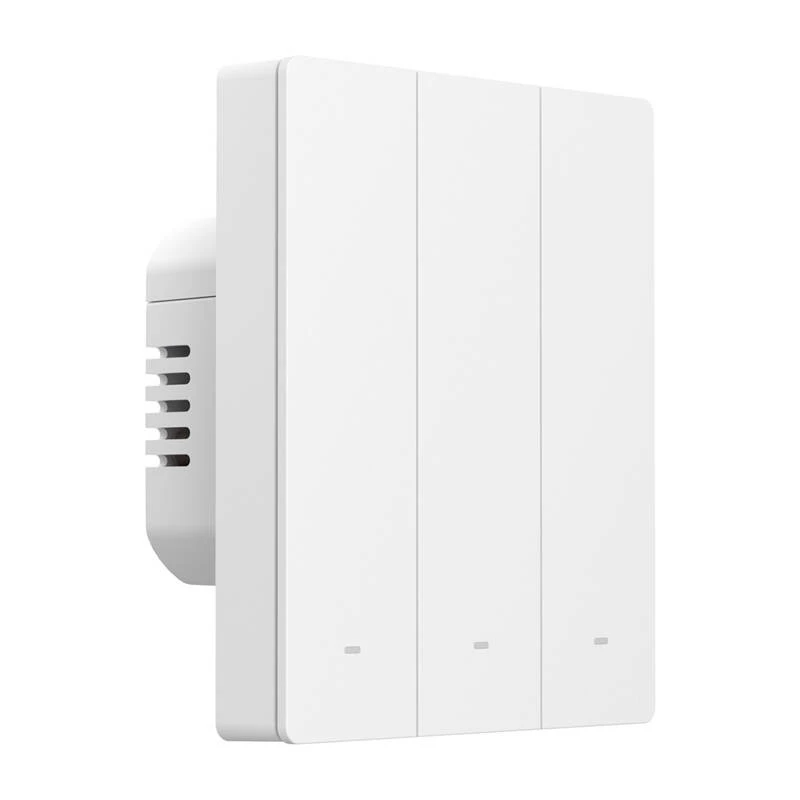

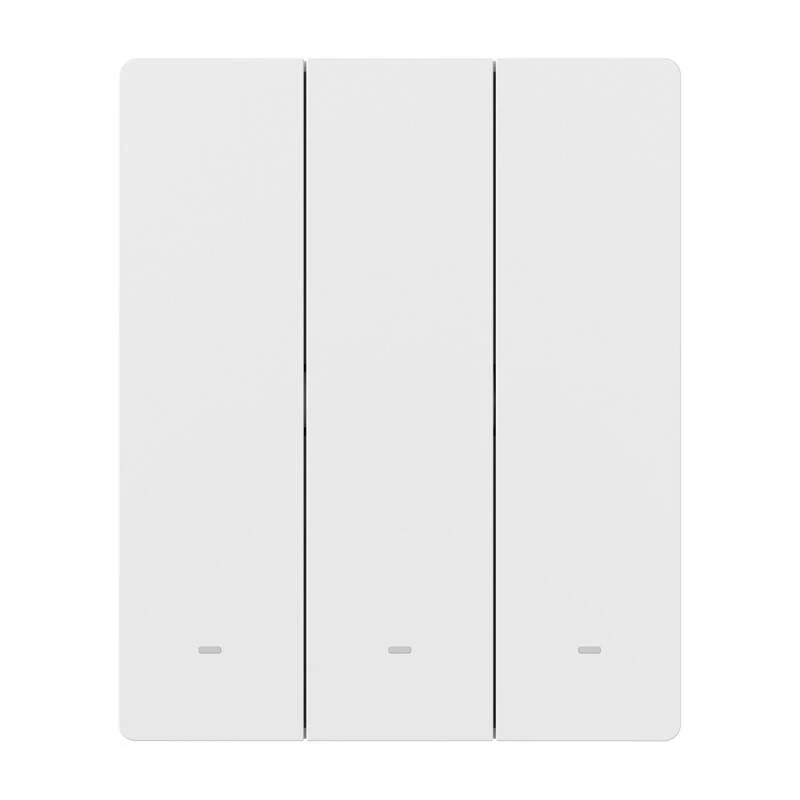

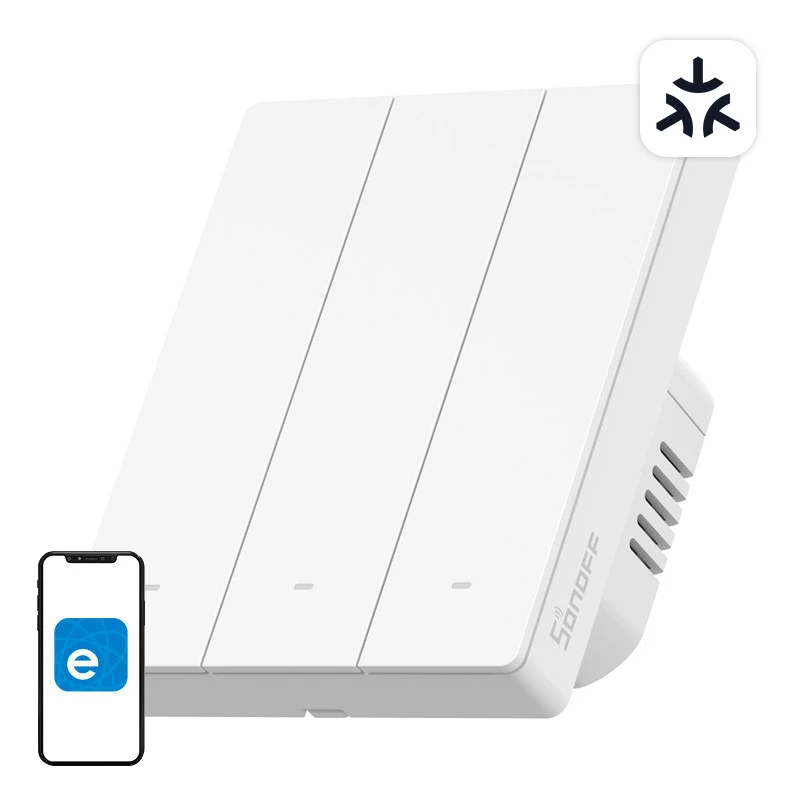

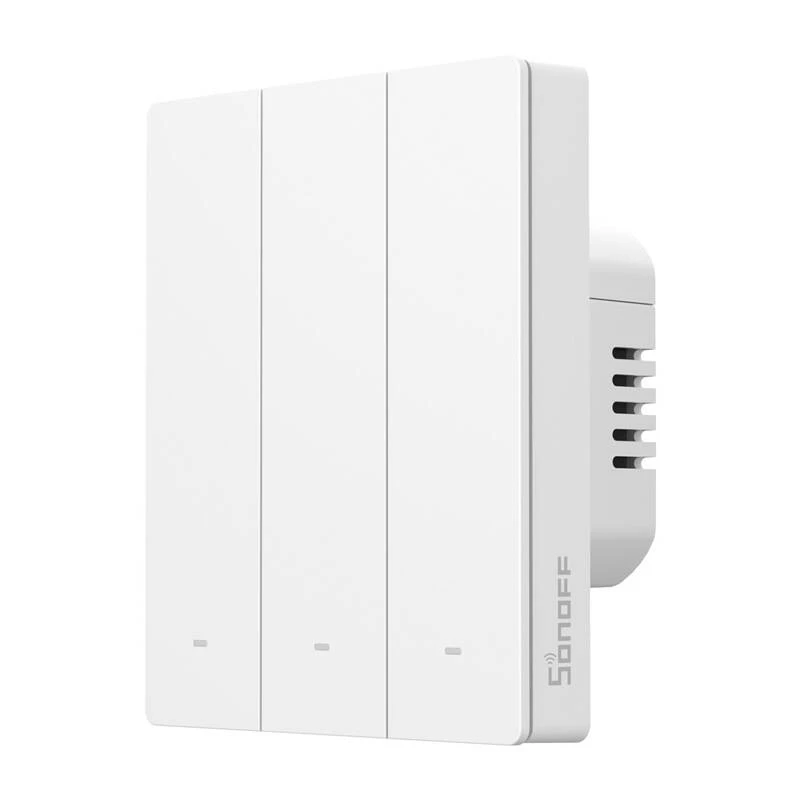

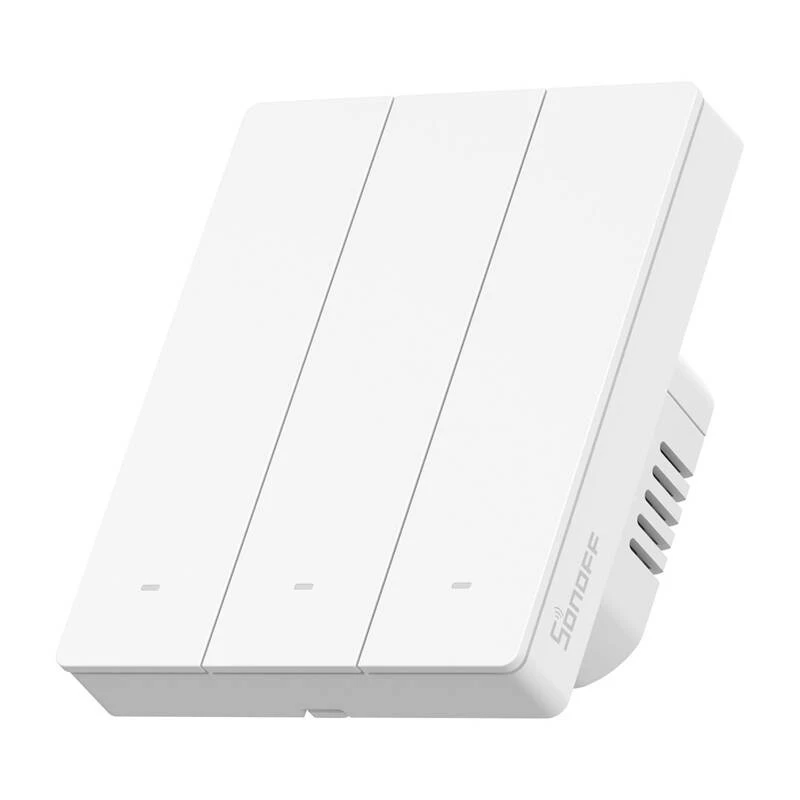

Interruptor de pared inteligente WiFi Sonoff M5-3C-80W 3 canales para marco

Sonoff M5-3C-80W Matter smart wall switch (3-channel) designed for installation into a separate frame. The switch provides physical buttons for local control and connects to the eWeLink app for remote management. As a Matter-certified device, it integrates with major smart home ecosystems and supports voice commands, while fitting into a frame sold separately.

Advantages

The M5 Matter switch offers multi-platform compatibility including Alexa, Google Home and Apple Home, enabling unified control across brands. It delivers fast, stable local operation even with limited network quality and supports voice control for hands-free use. Safety features include separation of high and low voltage and construction from flame-retardant PC V0 material. CE and RoHS compliance ensure regulatory safety and quality.

Key specifications

• Manufacturer: Sonoff
• Model: M5-3C-80W
• MCU: ESP32
• Nominal value: 3C: 100–240V ~ 50/60Hz, 2A per gang, 6A total max
• Max load: 3C: 1320W (total), 1–440W per gang
• LED load: 3C: 100W/220V per gang, 60W/110V per gang
• Wireless: IEEE 802.11 b/g/n 2.4GHz
• Net weight: 3C-80W — 141.3 g
• Dimensions: 86 × 71 × 41.5 mm
• Color: White
• Housing material: PC V0 + CRS
• Application: Indoor use
• Operating temperature: -10°C to 40°C
• Working humidity: 5%–95% RH, non-condensing
• Certificates: CE, RoHS
• Performance standard: EN 60669-2-1

How to use

Install the M5-3C-80W into a compatible frame (sold separately) and connect wiring according to local electrical codes and the device wiring diagram. Use the physical buttons on the panel for manual on/off control. For remote control and automation, pair the switch with the eWeLink app and follow the app’s pairing procedure. After adding to eWeLink, link the device to Matter-compatible platforms such as Apple Home, Google Home or Alexa to enable voice control and cross-brand automations.

Ieteikumi

For safe operation, switch off mains power before installation and ensure the separation of high and low voltage lines during mounting. Use compatible frames and consult a qualified electrician for installation if you are not experienced with mains wiring. To combine control from multiple locations, consider using the R5 Scene Controller or NSPanel (sold separately).
