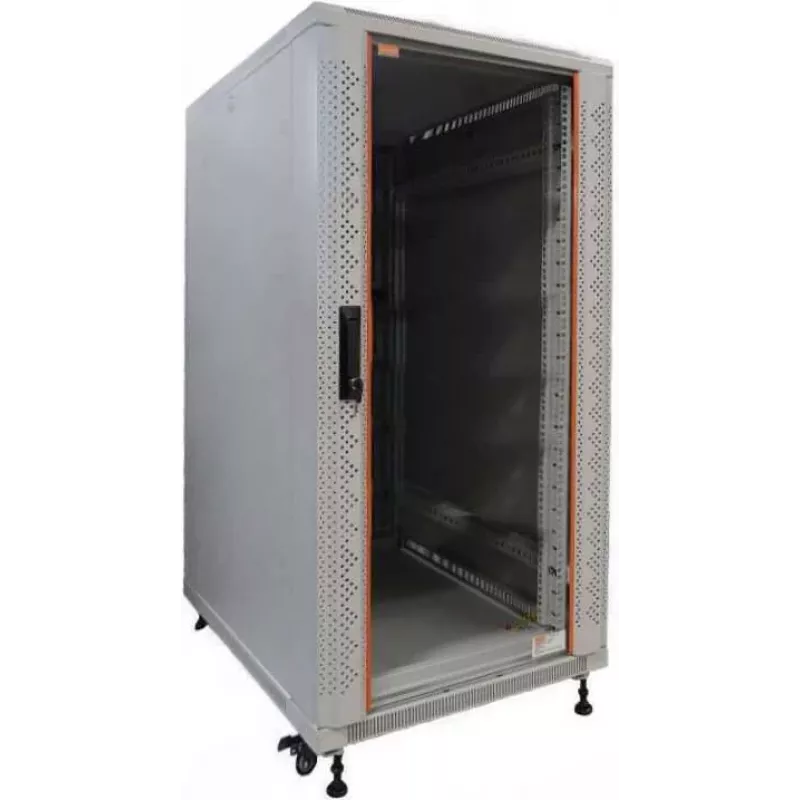

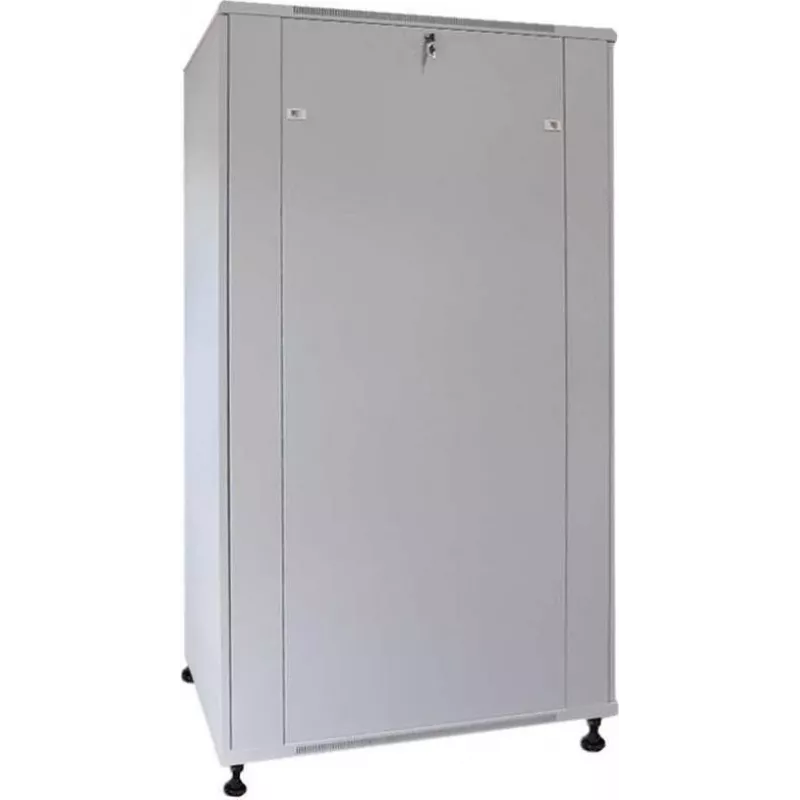

IT-BUDGET Rack de red de 19" SRK - 22U - 600x600 mm - Puerta de cristal/acero - Flatpack - Gris claro 90ITB19SRK2266GGN

For IT administrators setting up a small server room or network closet, the IT-BUDGET SRK 22U cabinet provides secure, organized housing for 19-inch equipment. Its 600x600 mm footprint fits standard spaces, and the flatpack design allows easy transport and on-site assembly. The front door can be configured with either a viewing glass panel for visual monitoring or a solid steel panel for maximum security. Removable, lockable side panels and adjustable mounting rails offer flexibility during installation and maintenance. Cable entry points at top and bottom with brush strips keep cabling tidy. The light grey (RAL 7035) finish blends into professional environments.

Key specifications

• Rack units: 22U
• External dimensions (WxDxH): 600 x 600 x 1166 mm
• Front door: viewing glass or solid steel (configurable)
• Rear door: solid steel
• Side panels: removable, lockable
• Material: steel
• Colour: light grey (RAL 7035)
• Mounting rails: adjustable 19-inch profile rails front and rear
• Cable entry: top and bottom with brush strips
• Ventilation: passive, prepared for active fan units
• Maximum static load: 600 kg

Why choose it

This cabinet offers a balance of security, accessibility, and expandability. The configurable front door lets you choose between visibility and solid protection. Removable side panels ease equipment installation, while adjustable rails accommodate various device depths. The flatpack construction reduces shipping volume and cost, making it an economical choice for budget-conscious projects.

Ideal use cases

• Small to medium business server rooms
• Network closets in offices or schools
• Secure housing for switches, patch panels, and servers
• Environments requiring lockable access control

Good to know

The cabinet is delivered unassembled (flatpack) and requires assembly. It is designed for indoor use (IP20). Leveling feet are included for stable placement on uneven floors. The passive ventilation can be upgraded with optional fan units for active cooling.
