JOY-IT JT-PS1440-NT fuente de alimentación industrial, tensión fija 68 V DC, 22 A máx, 1500 W

Industrial DC power supply delivering up to 1500 W with a fixed 68 V DC output and maximum current of 22 A. It operates from a universal 100–240 V AC input and is actively cooled for continuous high-load operation.

Advantages

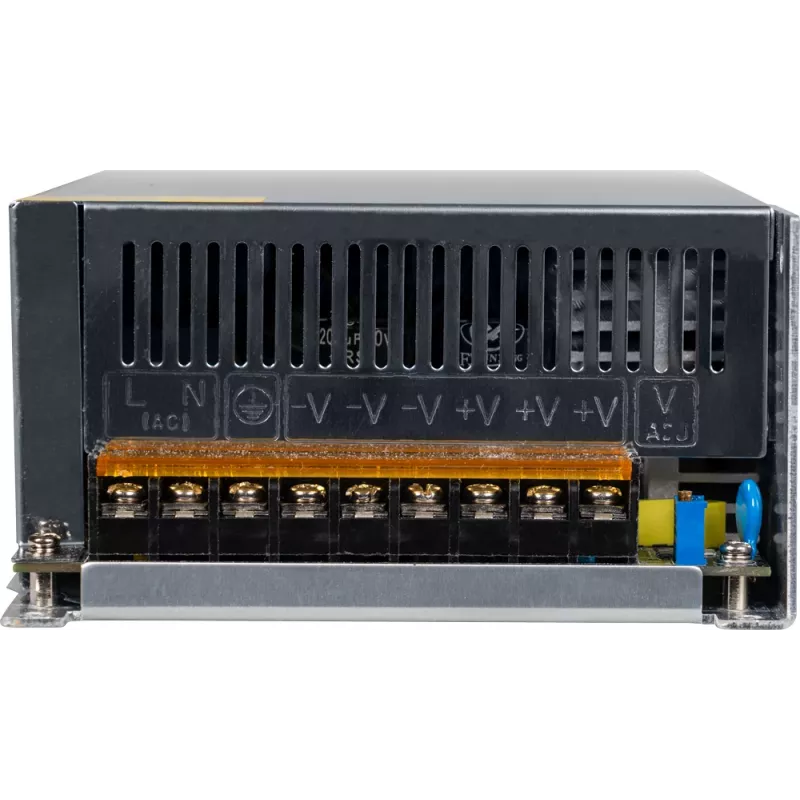

High efficiency above 88% reduces energy loss and heat generation. Built-in protection against overload, overvoltage, short circuit, and overtemperature ensures reliable operation in demanding environments. Screw terminal connections on both input and output simplify installation.

Suitable for

• Industrial automation systems
• LED lighting installations
• Motor drives and actuators
• Test and measurement equipment

Key specifications

• Output voltage: 68 V DC (fixed)
• Output current: 22 A max
• Output power: 1500 W max
• Input voltage: 100–240 V AC, 50/60 Hz
• Efficiency: >88%
• Cooling: Active fan
• Protection: OLP, OVP, SCP, OTP
• Operating temperature: -20°C to +50°C
• Ripple & noise: <150 mVp-p
• Voltage accuracy: ±1%
• Housing: Metal

Recommendations

Ensure adequate ventilation around the unit to maintain optimal cooling. Verify that the connected load does not exceed 1500 W to prevent overload.
