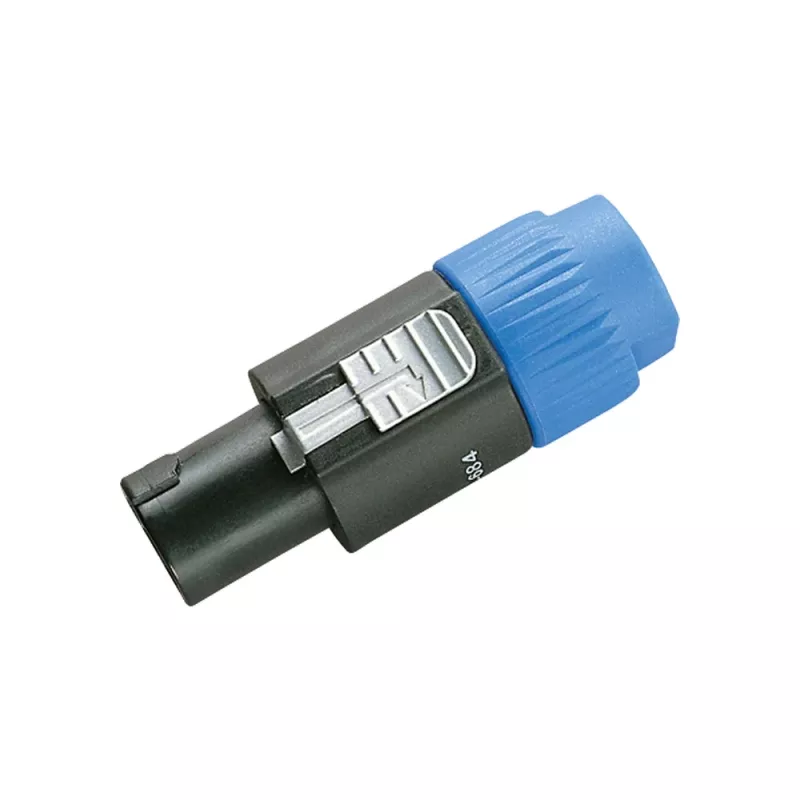

JUNG PS4 Conector de cable Speakon, tetrapolar, bornes de tornillo, negro/azul

Professional 4-pole Speakon cable connector for high-current speaker connections up to 30 A RMS. The quick lock system ensures secure mating, while screw terminals accept cables from 6 to 15 mm diameter.

Advantages

Silver-plated copper alloy contacts provide reliable signal transmission. The high-impact plastic housing with blue strain relief withstands demanding stage and studio use.

Suitable for

• Professional audio systems
• PA speaker connections
• Live sound and touring
• Studio installations

Key specifications

• Connector type: Speakon, 4-pole, male (cable connector)
• Termination: screw terminals
• Current rating: 30 A RMS continuous, 50 A peak
• Voltage rating: 250 V AC
• Cable outer diameter: 6 – 15 mm
• Contact material: copper alloy, silver plated
• Housing material: high-impact plastic
• Locking mechanism: quick lock system
• Temperature range: -30 °C to +80 °C
• Lifetime: > 1000 mating cycles

Recommendations

For reliable speaker connections in professional audio environments, pair with compatible 4-pole Speakon chassis connectors.
