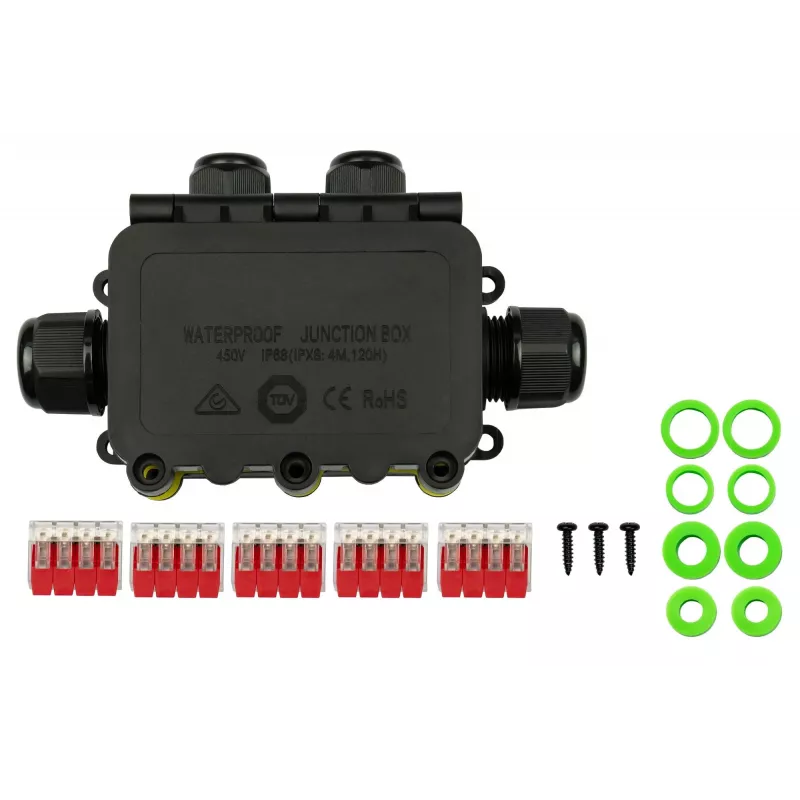

Kabelmeister Caja de Conexión IP68 de 4 Vías sin Herramientas, 450V/25A, 0,5-2,5mm², Negro

When wiring outdoors or underground, most junction boxes demand screwdrivers, sealing tape, and patience. This Kabelmeister 4-way junction box changes that: it is completely tool-free, yet certified IP68 for permanent immersion. Just strip the cable, push it into the silicone-sealed entry, and the screwless terminal grips it securely. No screws to corrode, no gel to refill, no risk of loose connections from vibration. Whether you are extending garden lighting, repairing a buried cable, or connecting pumps and sensors, this box keeps every splice dry and safe for decades.

Highlights

• 4 cable entries for branching or through-wiring
• Tool-free screwless terminals – no screwdriver needed
• IP68 waterproof and dustproof, suitable for continuous submersion
• Rated 450V AC / 25A, supports solid and stranded conductors 0.5–2.5 mm²
• UV-resistant polycarbonate housing with silicone seals
• Wide cable diameter range: 4–14 mm per entry
• Operating temperature from -40°C to +105°C
• Flame-retardant, CE and RoHS certified

In daily use

Installation takes seconds: strip 11 mm of insulation, push the conductor into the terminal until it clicks, and close the lid. The transparent cover lets you inspect connections without opening the box. The compact black housing fits into tight spaces, and the four entries accept round cables from 4 to 14 mm in diameter – perfect for NYY-J, H07RN-F, or similar outdoor cables. Because the terminals are spring-loaded, they maintain constant pressure even under temperature swings, preventing loosening over time. For underground use, simply bury the box directly in soil or gravel; the IP68 rating means it can withstand water ingress even at depth.

Full specifications

• Product type: Junction box
• Number of cable entries: 4
• Connection method: Tool-free screwless terminals
• Number of poles: 3 (L, N, PE)
• Rated voltage: 450 V AC
• Rated current: 25 A
• Wire cross-section: 0.5 – 2.5 mm² (solid or stranded)
• Cable diameter per entry: 4 – 14 mm
• IP rating: IP68 (dust-tight, continuous immersion)
• Housing material: Polycarbonate (PC)
• Seal material: Silicone
• Colour: Black
• Operating temperature: -40°C to +105°C
• UV resistant: Yes
• Flame retardant: Yes
• Certifications: CE, RoHS

Final note

For electricians and DIYers who want a reliable, maintenance-free waterproof connection without special tools, this Kabelmeister junction box is the smart choice. Its robust construction and tool-free design save time on every installation, while the IP68 rating ensures long-term safety in the harshest environments.
