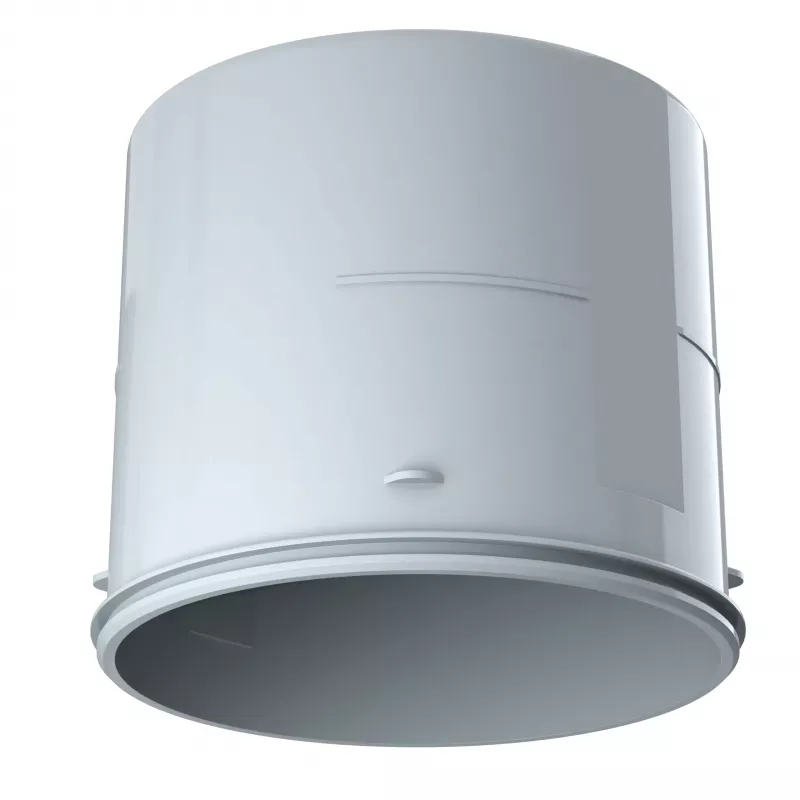

Kaiser Elektro Caja HaloX-O 1290-30 caja empotrable para hormigón

Electricians and contractors working on exposed concrete ceilings or walls use the HaloX-O 1290-30 housing to create a clean, air-tight recess for LED spotlights, loudspeakers, or recessed luminaires. Its tool-free installation and combi cable entries speed up rough-in work in both prefabricated and in-situ concrete.

Key specifications

• Product type: Flush-mounted housing
• Material: Halogen-free plastic
• Outer diameter: 120 mm
• Opening diameter: 90 mm
• Installation depth: 30 mm
• Air-tightness: Yes
• Cable entry type: Combi entries
• Number of cable entries: 8
• Conduit compatibility: M20 / M25
• Tool-free installation: Yes
• Exposed concrete compatibility: Yes
• Protection class (IP): IP30
• Colour: Grey
• Series: HaloX-O

Why choose it

The HaloX-O 1290-30 is built for exposed concrete applications, ensuring a precise fit and air-tight seal. Its halogen-free plastic construction meets modern building requirements, while the eight combi entries accommodate M20 or M25 conduits for flexible wiring.

Ideal use cases

• Installing recessed LED spotlights in concrete ceilings
• Mounting loudspeakers in solid walls
• Creating recesses for luminaires in prefabricated concrete elements

Good to know

The housing is designed for flush mounting with an installation depth of 30 mm. The grey colour blends discreetly with concrete surfaces.
