Kaiser Elektro Soporte universal de mecanismos 1159-24 para aislamiento exterior

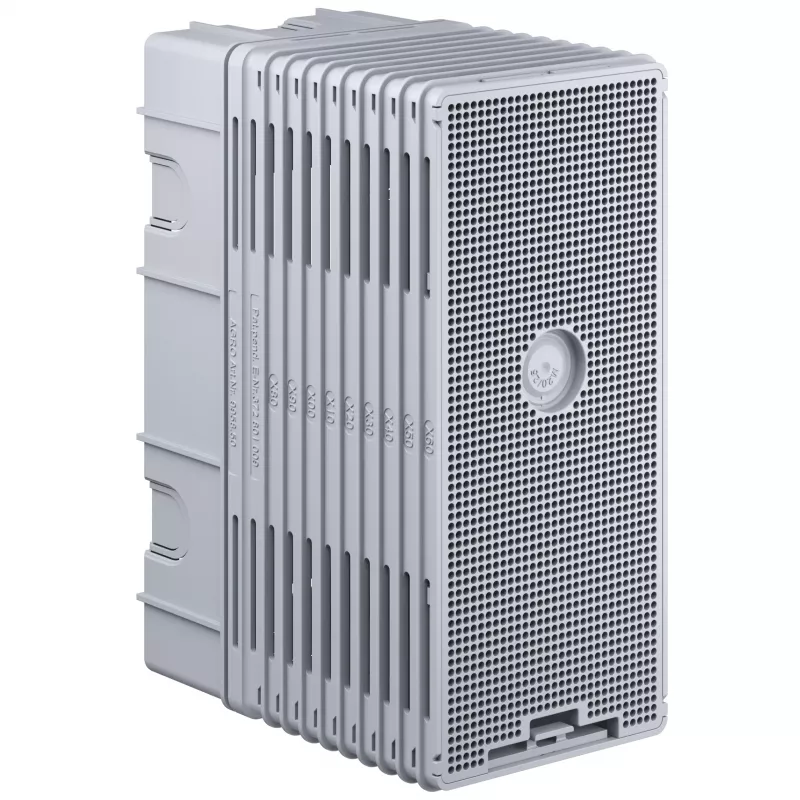

The Kaiser Elektro Universal Device Carrier 1159-24 is a professional-grade mounting solution designed for external thermal insulation composite systems (ETICS). It provides a secure and thermally optimized platform for installing electrical devices such as lights, motion detectors, cameras, sockets, and switches on insulated facades. The carrier is depth-adjustable to accommodate insulation thicknesses from 100 to 240 mm, ensuring compatibility with a wide range of building insulation standards.

Advantages

This device carrier minimizes thermal bridging, reducing heat loss and preventing condensation within the insulation layer. Its high-density polystyrene construction offers excellent weather resistance, UV stability, and fire protection class E (EN 13501-1). The flexible membrane cable entry simplifies installation, while the screw mounting method ensures a firm hold. With a load capacity of up to 40 N (approx. 4 kg), it supports most standard outdoor devices.

Suitable for

• Installation of lights, motion detectors, cameras, sockets, and switches on ETICS facades
• New construction and renovation projects requiring external insulation
• Professional electricians and contractors

Key specifications

• Product Type: Universal Device Carrier
• Application: External Thermal Insulation Composite Systems (ETICS)
• Insulation Thickness Compatibility: 100 - 240 mm
• Material: High-density Polystyrene (PS)
• Thermal Bridge Prevention: Yes
• Mounting Surface Dimensions: 120 x 120 mm
• Mounting Depth (Base Unit): 100 mm
• Load Capacity: Up to 40 N (approx. 4 kg)
• Weather Resistance: UV-resistant, Weatherproof
• Fire Protection Class: E (EN 13501-1)
• Device Compatibility: Lights, Motion Detectors, Cameras, Sockets, Switches
• Installation Method: Screw mounting
• Color: Black
• Halogen-free: Yes
• Temperature Range: -25°C to +60°C
• Adjustability: Depth adjustable to insulation thickness
• Cable Entry Type: Flexible membrane entry
• Standards Compliance: DIN EN 60670-1

Recommendations

For optimal performance, use appropriate insulation screws (not included) and ensure the carrier is securely fastened to the substrate. Always follow local building regulations and manufacturer guidelines.
