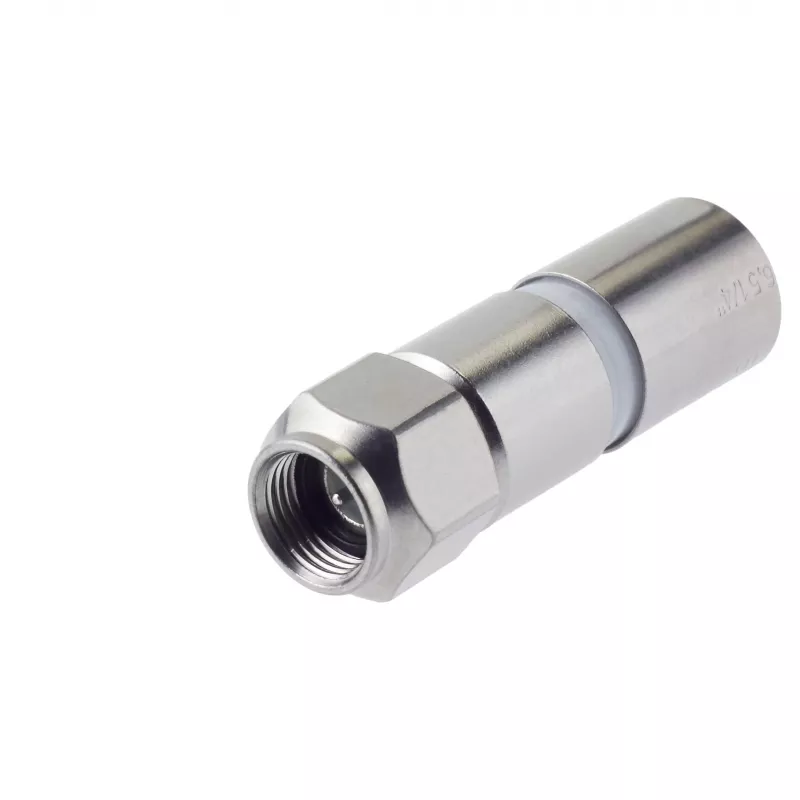

Kathrein EMK 19 Conector F de compresión para cable coaxial LCM 14/17

Satellite installers and cable technicians rely on the Kathrein EMK 19 F-compression connector when terminating Kathrein LCM 14 and LCM 17 coaxial cables in SAT, DVB-T, and CATV installations. This connector ensures a secure, weather-resistant connection with excellent signal integrity across the full 5–3000 MHz range.

Key specifications

• Connector type: F-compression connector (male)
• Compatible cables: Kathrein LCM 14, Kathrein LCM 17
• Impedance: 75 Ohm
• Frequency range: 5–3000 MHz
• Shielding effectiveness: > 100 dB (30–1000 MHz)
• Return loss: > 30 dB (5–1000 MHz), > 25 dB (1000–2200 MHz), > 20 dB (2200–3000 MHz)
• Insertion loss: < 0.1 dB
• Material: Nickel-plated brass
• Installation: Compression (requires specialized tool)

Why choose it

The EMK 19 delivers low insertion loss and high return loss, preserving signal quality in demanding RF distributions. Its nickel-plated brass body withstands outdoor conditions, and the compression design provides a durable, gas-tight seal that resists moisture ingress and pull-out.

Ideal use cases

• Satellite TV (SAT) antenna connections
• DVB-T terrestrial antenna systems
• Cable TV (CATV) distribution networks
• Professional installations requiring reliable F-connectors

Good to know

Installation requires a compression tool suitable for F-connectors. The connector is specifically matched to Kathrein LCM 14 and LCM 17 cable diameters, ensuring optimal contact and shielding. For best results, follow standard cable preparation dimensions.
