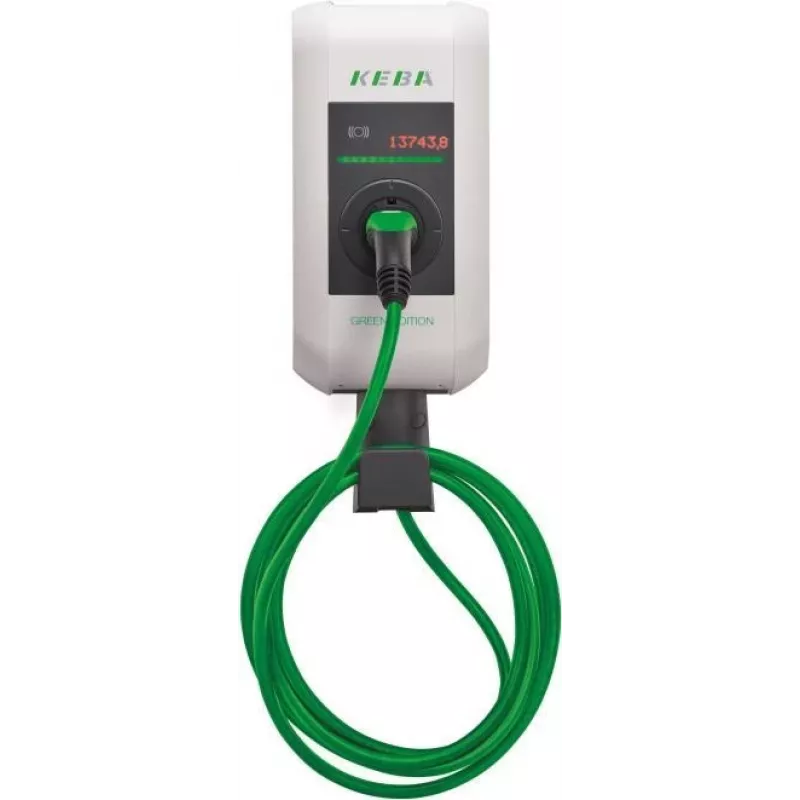

KEBA KC-P30-EC240422-E0R-GE c-series EN Type2 cable de 6m 22kW RFID - Green Edition

The KEBA KC-P30-EC240422-E0R-GE Green Edition stands apart from conventional EV charging stations with its distinctive green housing and robust build, engineered for reliable 22 kW AC charging in both private and semi-public settings. Unlike many wallboxes that require additional modules for access control, this unit integrates RFID authorization and an energy meter directly, simplifying installation and daily operation.

Highlights

• 22 kW charging power with 32 A three-phase current for fast top-ups
• Integrated RFID reader for user authentication and billing support
• Type 2 connector with 6 m cable for flexible parking positions
• Built-in DC fault current detection (6 mA) for enhanced safety
• OCPP 1.6 via Ethernet enables smart grid integration and remote management
• IP54 and IK08 ratings ensure durability in outdoor and impact-prone environments
• Green Edition housing made from UV-resistant plastic for long-term aesthetics

In daily use

This wall-mounted station is ideal for workplaces, residential complexes, and commercial fleets. Users simply present an RFID card to start charging, and the integrated meter records energy consumption for transparent accounting. The multi-color LED status display provides clear feedback on charging states, while the 6-meter cable accommodates various vehicle inlet positions. The station operates reliably from -25°C to +50°C, making it suitable for most climates.

Full specifications

• Charging power: 22 kW
• Charging current: 32 A
• Input voltage: 400 V AC (3-phase)
• Connector type: Type 2 (IEC 62196-2)
• Cable length: 6 m
• Access control: RFID
• Residual current protection: Integrated DC fault current detection (6mA), requires external RCD Type A
• Enclosure protection: IP54
• Impact protection: IK08
• Communication interface: Ethernet (RJ45)
• Communication protocol: OCPP 1.6
• Energy meter: Integrated
• Operating temperature: -25°C to +50°C
• Mounting type: Wall-mounted
• Status indicator: Multi-color LED display
• Housing material: UV-resistant plastic
• Special edition: Green Edition

Final note

With its combination of high power, integrated smart features, and distinctive green design, the KEBA Green Edition is a future-proof choice for modern EV charging infrastructure.
