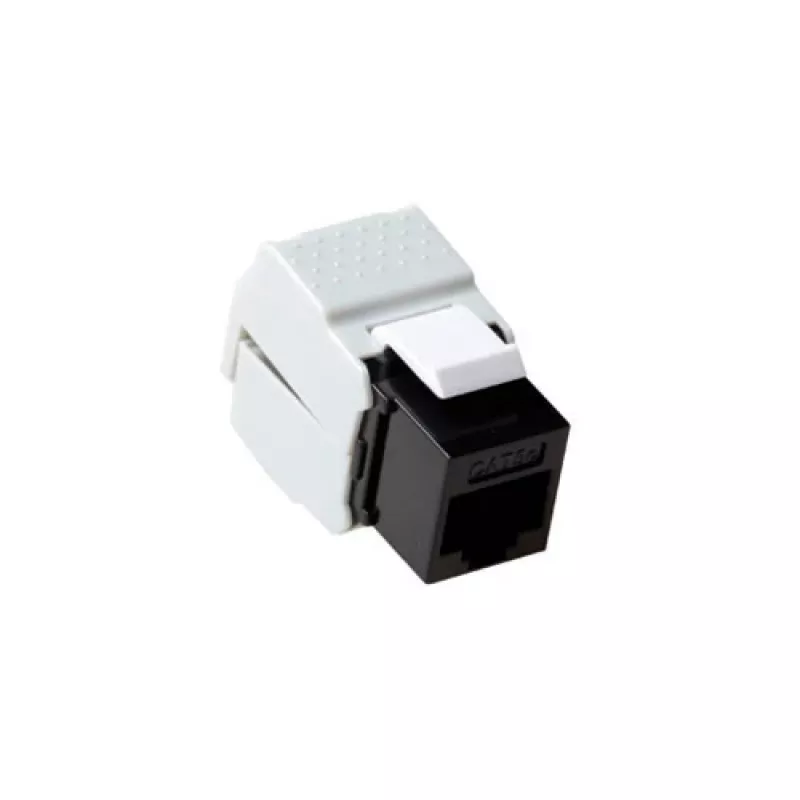

Keystone Jack ACT CAT6 no apantallado sin herramientas negro TD6010

The ACT CAT6 Keystone Jack is an unshielded, tool-free network connector engineered for straightforward installation in wall plates, patch panels and keystone modules. It provides RJ45 termination and IDC-style connections for twisted-pair copper cabling, supporting Gigabit Ethernet and high-speed data transmission in home and office networks. The compact black housing offers a discrete appearance while maintaining compatibility with standard keystone-compatible mounting solutions.

Advantages

This keystone jack allows fast, tool-free termination without punch-down tools, reducing installation time and simplifying cable changes or moves. As an unshielded CAT6 component, it supports up to 250 MHz performance required for Gigabit Ethernet and many LAN applications. The RJ45 interface ensures reliable mating with standard network cables and plugs, while the IDC contacts provide secure connections to solid and stranded conductors. The black finish minimizes visual impact in finished installations.

Suitable for

• Residential Ethernet installations and home networks
• Small and medium office wiring and patch panel use
• Data points in conference rooms, media centers or workstations
• Quick repairs, moves and changes where tool-free termination is preferred

Key specifications

• Category: Unshielded CAT6 keystone jack
• Connector type: RJ45 jack with IDC termination
• Termination: Tool-free, no punch-down required
• Performance: Supports up to 250 MHz for Gigabit Ethernet
• Compatible cable: 4-pair twisted-pair copper (solid and stranded)
• Housing color: Black
• Mounting: Standard keystone form factor for wall plates and patch panels

How to use

Prepare the network cable by stripping the outer jacket to expose the four twisted pairs and untwisting only as much as required for termination. Follow the color code markings on the keystone jack to insert each conductor into the corresponding IDC slot. Press firmly until the conductors click into place; the tool-free mechanism secures the wires electrically and mechanically. Snap the keystone jack into a compatible wall plate or patch panel opening, then plug an RJ45 patch cable into the front port to connect network equipment.

Recommendations

For best performance, use with CAT6-rated cable and maintain proper cable management to avoid excessive bending or untwisting of pairs. Verify connections with a cable tester after installation to confirm continuity and pairing. Avoid use in environments requiring shielded components or where electromagnetic interference is a concern.
