Kingston | 16 GB | DDR4 | 3200 MHz | portátil | Registered No | ECC No

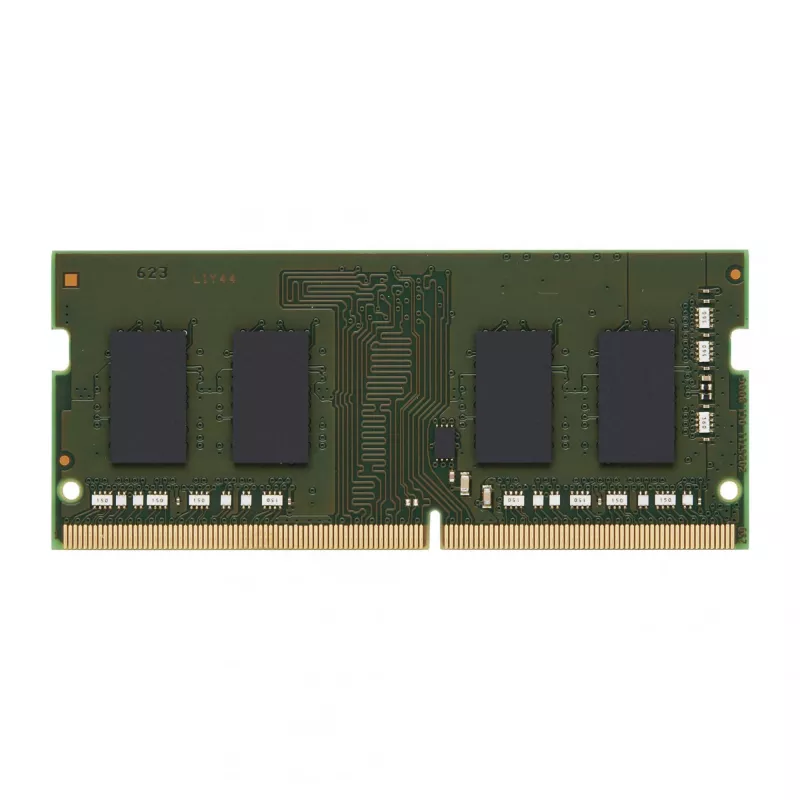

ValueRAM KVR32S22S8/16 is a 16GB DDR4-3200 CL22 260-pin DIMM designed as a 1Rx8, non-ECC memory module. It is built from eight 2G x 8-bit FBGA components and has SPD programmed to the JEDEC standard timing of 22-22-22 at 1.2V. The module uses gold-plated contact fingers and is intended for systems that support DDR4-3200 unbuffered DIMMs.

Advantages

This ValueRAM module provides a standard JEDEC-compatible DDR4-3200 speed with CL22 latency, ensuring compatibility with a wide range of motherboards. The non-ECC 1Rx8 configuration and 260-pin form factor match common desktop DIMM slots, while gold contact fingers improve signal reliability and corrosion resistance. SPD programming to JEDEC timings simplifies system setup and ensures stable operation at the specified voltage and timings.

Key specifications

• Capacity: 16GB (2G x 64-bit)
• Module type: DDR4 SDRAM Unbuffered DIMM
• Speed: DDR4-3200
• CAS Latency: CL22 (22-22-22)
• Rank and organization: 1Rx8
• Components: eight 2G x 8-bit FBGA chips
• SPD voltage/timings: JEDEC DDR4-3200 @ 1.2V
• Pins: 260-pin DIMM
• Error correction: Non-ECC
• Contacts: Gold-plated fingers

How to use

Power off the computer and discharge static before installing. Insert the 260-pin DIMM into a compatible DDR4 DIMM slot, aligning the module notch with the slot key, and press firmly until the retention clips engage. Ensure the motherboard and BIOS support DDR4-3200; the module will use SPD JEDEC timings (22-22-22 at 1.2V) by default. If adjusting settings in BIOS, verify stability after changes and observe manufacturer guidelines for maximum supported memory per slot and total system capacity.
