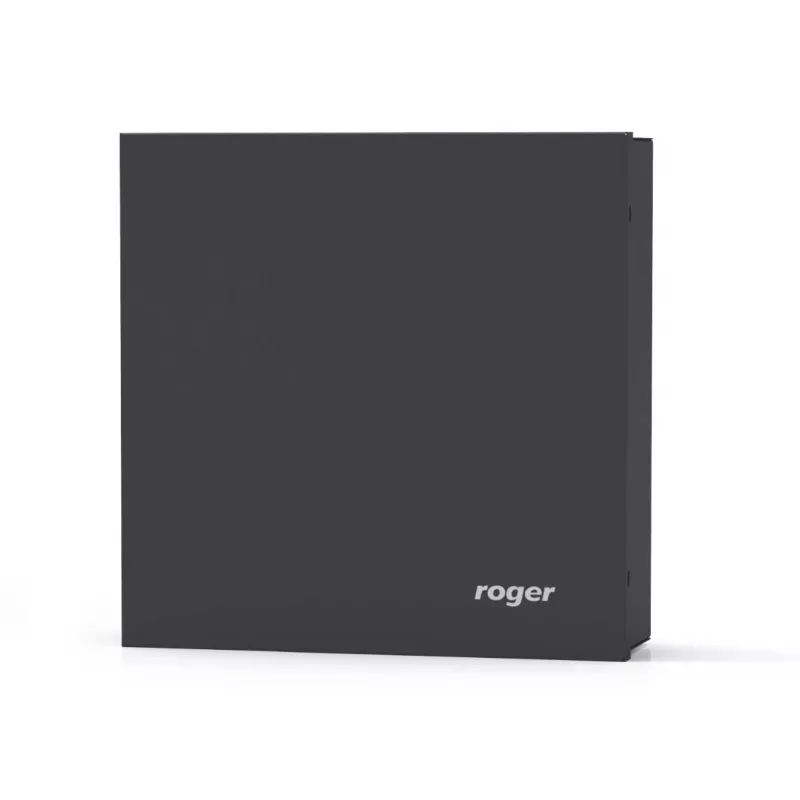

Kit de controlador ROGER MC16-PAC-ST-4-KIT con carcasa

Managing access control for up to 16 doors with a centralized, reliable controller can be challenging. The ROGER MC16-PAC-ST-4-KIT solves this by providing a complete controller kit with a metal housing and power supply, ready for professional installation in RACS 5 systems.

Who is it for

This kit is intended for security integrators and facility managers who need a robust access control solution for medium to large installations, supporting up to 32,000 users and 1,000,000 events.

Main features

• Controller model MC16 for RACS 5 access control system
• Supports up to 16 readers via RS485 bus
• 8 programmable inputs (NO/NC) and 8 relay outputs (1.5A / 30V DC)
• 8 OC outputs (150mA / 30V DC) for additional signaling
• Ethernet (TCP/IP) and RS485 communication interfaces
• Metal enclosure with tamper protection
• Includes 13.8V DC / 4A power supply
• Battery backup support for 7Ah or 17Ah battery (battery not included)

Specifications

• Brand: ROGER
• Model: MC16-PAC-ST-4-KIT
• MPN: 35779
• EAN: 5907608965562
• Type: Access control controller kit
• Max. number of readers: 16
• Max. number of users: 32,000
• Event buffer capacity: 1,000,000 events
• Communication interfaces: Ethernet (TCP/IP), RS485
• Programmable inputs: 8 (NO/NC)
• Relay outputs: 8 (1.5A / 30V DC)
• OC outputs: 8 (150mA / 30V DC)
• Power supply: 13.8V DC / 4A included
• Input voltage: 230V AC
• Operating temperature: -10°C to +50°C
• Housing material: Metal
• Tamper protection: Yes
• Software compatibility: RACS 5 (VMS, PR Master)

Tips

For battery backup, use a 7Ah or 17Ah lead-acid battery (not included) to ensure uninterrupted operation during power outages. Configure the controller using RACS 5 software for advanced access rules.
